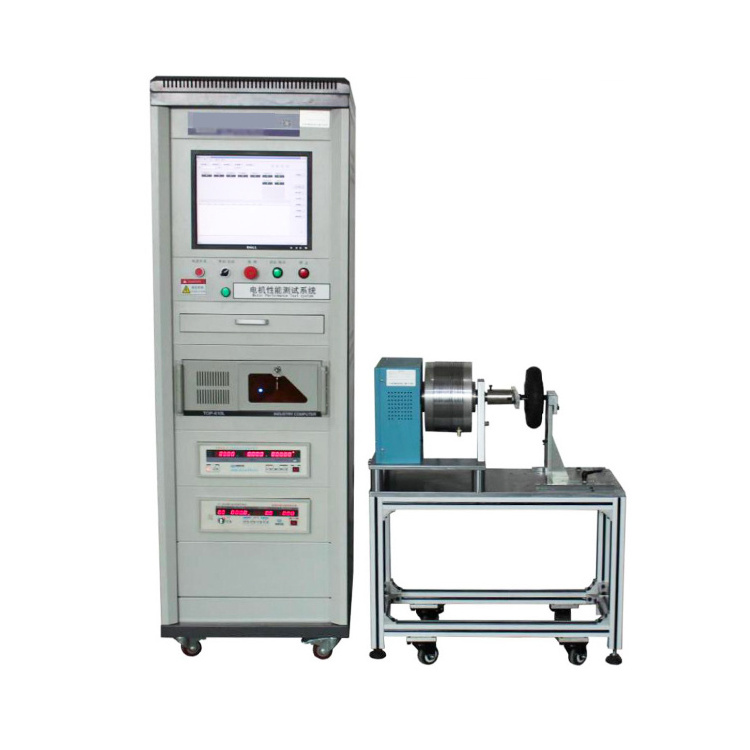

Electric Bicycle Motor Dynamometer

Product Overview:

The digital torque speed and power display instrument is the secondary instrument of the dynamometer. It is directly connected with the dynamometer to display the torque, speed and output power of the tested motor on the dynamometer. It can also be connected with the controller of the dynamometer to draw the characteristic curve of the tested motor.

Machine Structure P rinciple:

The brake is driven by the motor under test to rotate. After the excitation current is applied to the brake, the inner and outer stators apply braking torque to the motor under test through the rotor. At the same time, the micro deflection of the brake causes the torque sensor to generate micro strain, and the torque signal is converted by the torque sensor. At the same time, the rotational speed signal is converted into an electrical signal by the rotational speed sensor. The torque display and the rotational speed display in the digital torque and rotational speed display instrument respectively display the measured values, and the output power is converted by the microcomputer and displayed on the display. The torque sensor is a cantilever beam with variable cross-section. Four foil strain gauges are attached to form a bridge. There is a foil strain gauge and two thermistors to compensate for temperature and gauge coefficient errors. There is a zero-adjust potentiometer. Adjust so that the output is zero when the bridge is not loaded. All the components are on the circuit board of the torque sensor. The torque sensor is mounted on the bearing sleeve of the outer stator and fixed with elastic clamp ring fixing screws.

Main Parameters:

Click here >>>> More Factory Prices and Shipping !!!

ABOUT US

We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.

Throughout its more than 13 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total more than 80 countries these years,especially favored by European and American countries.

Our equipments cover a wide range of industries, such as rubber and plastics industry, food industry, packaging industry, electronics industry, etc.and are suitable for all scientific research units, quality inspection institutions and academic fields.

In addition to standard machines, our R&D team can customize it for you. Just tell us your needs and we will make you satisfied.

Click here >>>> More Factory Prices and Shipping !!!

1. How to choose the most suitable Mechanical Equipment ?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?

Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
