Quick Details
-
Dimensions(L*W*H):
-
1070 * 1400 * 1620mm
-
Weight:
-
385 KG
-
Printing colors:
-
4 colors
-
Printing station:
-
20Pcs
-
Printing speed:
-
2000 Pcs / Hr
-
Up and down stroke of head cylinder:
-
75mm
-
stroke of sliding cylinder:
-
225mm
-
stroke of oil cup cylinder:
-
200mm
-
Table size:
-
144 * 155mm
-
Plate Size:
-
150 * 300 mm
-
Pressure:
-
6 Bar
-
Air consumption:
-
170 Liter / Min
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
LC
-
Voltage:
-
220V 50Hz
-
Dimensions(L*W*H):
-
1070 * 1400 * 1620mm
-
Weight:
-
385 KG
-
Printing colors:
-
4 colors
-
Printing station:
-
20Pcs
-
Printing speed:
-
2000 Pcs / Hr
-
Up and down stroke of head cylinder:
-
75mm
-
stroke of sliding cylinder:
-
225mm
-
stroke of oil cup cylinder:
-
200mm
-
Table size:
-
144 * 155mm
-
Plate Size:
-
150 * 300 mm
-
Pressure:
-
6 Bar
-
Air consumption:
-
170 Liter / Min
Product Description

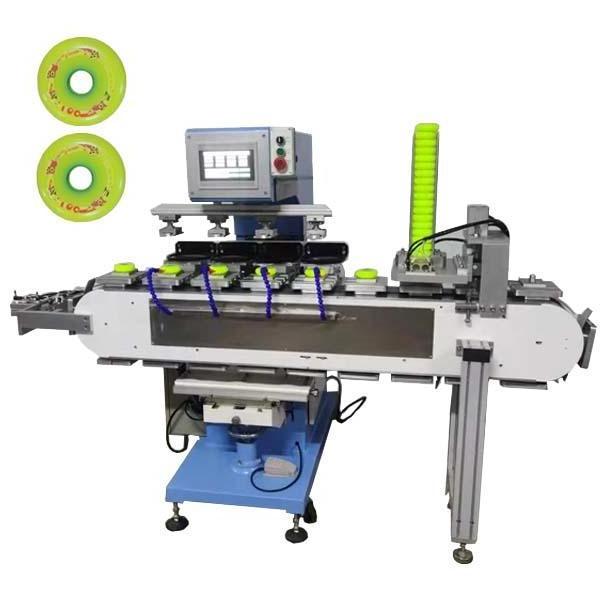

4 Color 20 Station Large Ink Cup Tank Belt Tampography Printer With Loading And Unloading System
Specification
|
Printing colors
|
4colors
|
Plate Size
|
150 * 300mm
|
|
Printing station
|
20Pcs
|
Printing speed
|
2000 Pcs / Hr
|
|
Up and down stroke of print head cylinder
|
75mm
|
Power
|
220V 50Hz
|
|
Front and back stroke of sliding cylinder
|
225mm
|
Pressure
|
6 Bar
|
|
Front and back stroke of oil cup cylinder
|
200mm
|
Air consumption
|
170 Liter / Min
|
|
Table size
|
144 * 155mm
|
Dimensions
|
1070 * 1400 * 1620mm
|
|
Workbench station
|
20Pcs
|
Body weight
|
350Kg
|
Cylinder of LC-PM4-150TK-20T is German FESTO brand. Electrical components are imported from Japan. Vacuum system is from Taiwan.It meets CE standard, with very stable running.
It is with closed ink cup, can save 60% ink and 90% thinner. Closed ink cup to drive by independent cylinder, so that can ensure removing ink completely and prolong the life of sealed cup and steel plate.
Application
Suitable for metal, glass, ceramic, plastic, wood, leather and other materials in the printing area is relatively small flat or curved and irregular surfaces precision printing products. Such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts, heel and so on.
Thank you for taking the time to browse here.
Our machines can be customized according to the size of the product, printing area and printing color.
Send inquiry to get more information.
