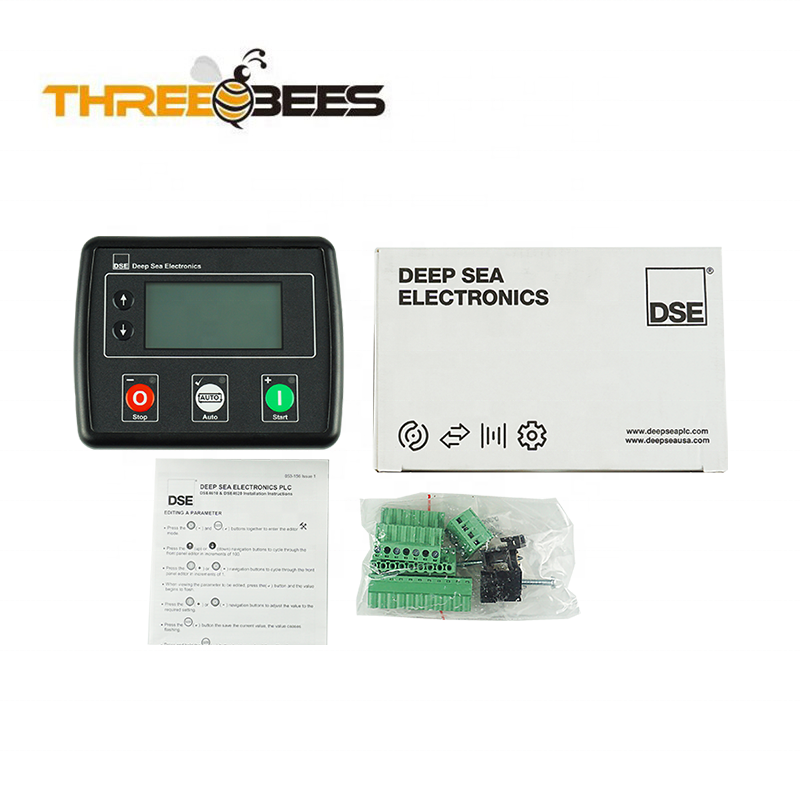

3 Phase Generator and Mains Utility Sensing Electronics Controller DSE4520

FOB Reference Price: Get Latest Price

≥1 Pieces

US $175

≥10 Pieces

US $174

≥50 Pieces

US $172

≥100 Pieces

US $150

Free Inquiry

Customized Request

Quick Details

Product Description

DSE4520 Auto Mains Failure Control Module
Overall Size	140 mm x 113 mmx43mm (5.5″ x 4.4″ x 1.5″)
Panel Cutout Size	118 mm x 92 mm (4.6″ x 3.6″)
Maximum Panel Thickness	8.0 mm (0.3″)
Packed Size	180mm115mm50mm
Weight	0.3kg

-CAN &alternator speed sensing.

-Backed-up real time clock.
-Power save mode.
-3-phase generator and mains(utility)sensing.

DC SUPPLY	CONTINUOUS VOLTAGE RATING	8 V to 35 V Continuous
	MAXIMUM OPERATING CURRENT	85 mA at 12 V, 96 mA at 24 V
	MAXIMUM STANDBY CURRENT	51 mA at 12 V, 47 mA at 24 V
	MAXIMUM SLEEP CURRENT	35 mA at 12 V, 32 mA at 24 V
MAINS (UTILITY)	VOLTAGE RANGE	15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph)
MAINS (UTILITY)	FREQUENCY RANGE	3.5 Hz to 75 Hz
OUTPUTS	OUTPUT A (FUEL)	10 A short term, 5 A continuous,at supply voltage
	OUTPUT B (START)	10 A short term, 5 A continuous,at supply voltage
	OUTPUTS C & D	2 A DC at supply voltage
	AUXILIARY OUTPUTS E,F,G,H	2 A DC at supply voltage
GENERATOR	VOLTAGE RANGE	15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph)
GENERATOR	FREQUENCY RANGE	3.5 Hz to 75 Hz
MAGNETIC PICK-UP	VOLTAGE RANGE	+/- 0.5 V to 70 V
MAGNETIC PICK-UP	FREQUENCY RANGE	10,000 Hz (max)

How to choose a suitable Generator Controller
Cheap (for low cost small power generators)
DSE3110	DSE4520	DSE4620	DSE501K	DSE701	DSE702	DSE704
More Functions (for high power generator)
DSE5110	DSE5220	DSE6020	DSE6120	DSE7210	DSE7310	DSE7320
More languages Avaliable languages:Englines,Spanish,Portuguese,French,German,Russian,Thai,Arabic,Chinese etc
DSE6120	DSE7210	DSE7220	DSE7310	DSE7320
AMF Generator Controller (Auto Mains Fsilure Generator control Modules)
DSE704	DSE720	DSE5220	DSE6120	DSE7220	DSE7320
Synchronising and Load Share DSE Controller
DSE8610	DSE8620	DSE8660
Canbus ECU Communications Generator Controller
DSE3110	DSE4520	DSE7210	DSE7220	DSE7310	DSE7320
