- Product Details
- {{item.text}}
Quick Details
-

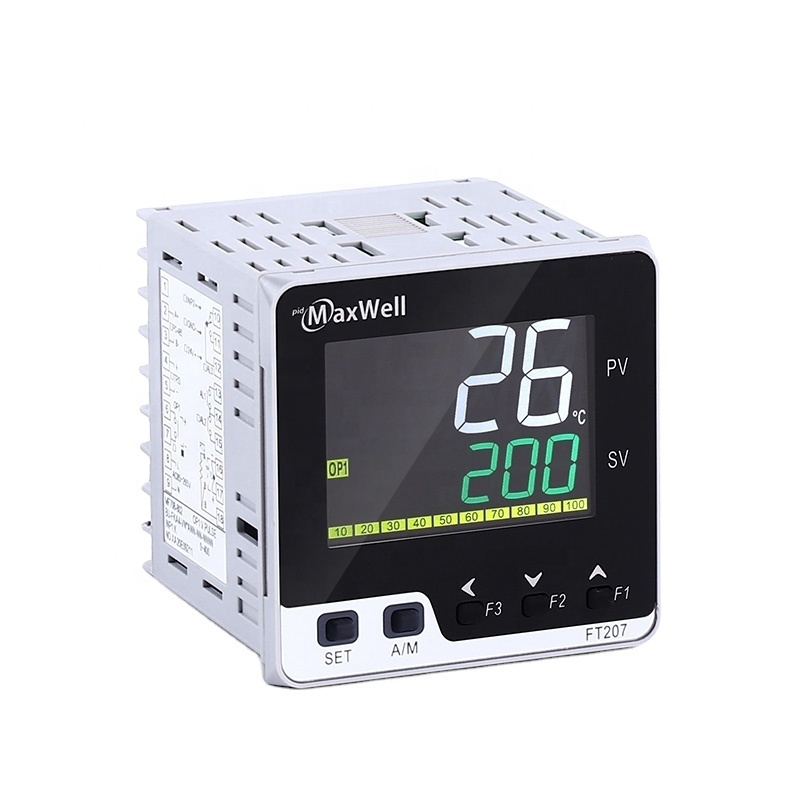

Model Number:
-
FT207-U-R-N-1-96-NNNNNN
-
Display:
-
LCD
-
size:
-
72mm*72mm
-
Color:
-
white and black
-
Input:
-
TC/RTD
-
output:
-
Relay
-
alarm:
-
1
-
power supply:
-
85-265Vac
-
warranty:
-
12 months
-
More options:
-
contact us
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
MAXWELL
-
Model Number:
-
FT207-U-R-N-1-96-NNNNNN
-
Display:
-
LCD
-
size:
-
72mm*72mm
-
Color:
-
white and black
-
Input:
-
TC/RTD
-
output:
-
Relay
-
alarm:
-
1
-
power supply:
-
85-265Vac
-
warranty:
-
12 months
-
More options:
-
contact us
-
Certification:
-
CE
FT20X Ordering Information:
| FT20X-X-X-X-X-X-X-X-X-X-X-X | ||
| Default input: TC/RTD ( Analog input also in optional) | ||
| 1: Size | 0 | 48mm*48mm(width*height) |
| 4 | 48mm*96mm(width*height) | |
| 5 | 96mm*48mm(width*height) | |
| 7 | 72mm*72mm(width*height) | |
| 9 | 96mm*96mm(width*height) | |
| 2: Control type | U | Standard PID type |
| P | Ramp and soak mode(with timer) | |
| X | Motor valve direct/reverse control version(two relays) | |
| 3: Output 1 | R | Relay output |
| V | SSR Drive/Voltage pulse output | |
| D | 4-20mA output | |
| E | 0-10Vdc | |
| F | 0-20mA | |
| 5 | 0-5Vdc | |
| 7 | 1-5Vdc | |
| T | Traic single phase zero-crossing trigger | |
| A | Relay output, for motor valve direct act control | |
| 4:Output 2 (output 2 is only available for heating+cooling controller) | N | No output2( For single output controller, choose code N) |
| R | Relay output | |
| V | SSR Drive/Voltage pulse output | |
| D | 4-20mA output | |
| E | 0-10Vdc | |
| F | 0-20mA | |
| 5 | 0-5Vdc | |
| 7 | 1-5Vdc | |
| T | Traic single phase zero-crossing trigger | |
| A | Relay output, for motor valve reverse act control | |
| 5: Alarm | 1 | 1 alarm |
| 2 | 2 alarm | |
| 6:Power supply | 96 | 85-265Vac |
| 24 | 24Vac/dc | |
| 7:PV/SV re-transmission | N | No re-transmission function |
| A | 4-20mA re-transmission via OP2 | |
| B | 0-20mA re-transmission via OP2 | |
| E | 0-10Vdc re-transmission via OP2 | |
| F | 4-20mA re-transmission via AU3 | |
| G | 0-20mA re-transmission via AU3 | |
| K | 0-10Vdc re-transmission via AU3 | |
| 8:RS-485 Communication | N | No communication feature |
| K | RS-485 modbus RTU communication | |
| 9: AUX power source | N | No aux power |
| A | 24Vdc isolated | |
| B | 24Vdc grounded | |
| C | 12Vdc isolated | |
| D | 12Vdc grounded | |
| 10:Position feedback (analong feedback input from INP2) | N | No position feedback |
| A | 4-20mA | |
| B | 0-20mA | |
| C | 0-5Vdc/potentiomter | |
| D | 1-5Vdc | |
| E | 0-10Vdc | |
| 11:Remote SV setting | N | No remote SV feature |
| A | 4-20mA via INP2 | |
| B | 0-20mA via INP2 | |
| C | 0-5Vdc via INP2 | |
| D | 1-5Vdc via INP2 | |
| E | 0-10Vdc via INP2 | |
| F | 4-20mA via INP3 | |
| G | 0-20mA via INP3 | |
| H | 0-5Vdc via INP2 | |
| J | 1-5Vdc via INP3 | |
| K | 0-10Vdc via INP3 | |
| W | D1/D2 terminals event input | |
| 12:Manual output% remote setting | N | No remote SV feature |
| A | 4-20mA via INP2 | |
| B | 0-20mA via INP2 | |
| C | 0-5Vdc via INP2 | |
| E | 0-10Vdc via INP2 | |
| F | 4-20mA via INP3 | |
| G | 0-20mA via INP3 | |
| H | 0-5Vdc via INP3 | |
| K | 0-10Vdc via INP3 | |
