Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
darong
-
Model Number:
-
JM10
-
brake:
-
one failsafe brake
Quick Details
-
Power Source:
-
Electric
-
Application:
-
AUTO
-
Capacity:
-
100KN
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
darong
-
Model Number:
-
JM10
-
brake:
-
one failsafe brake

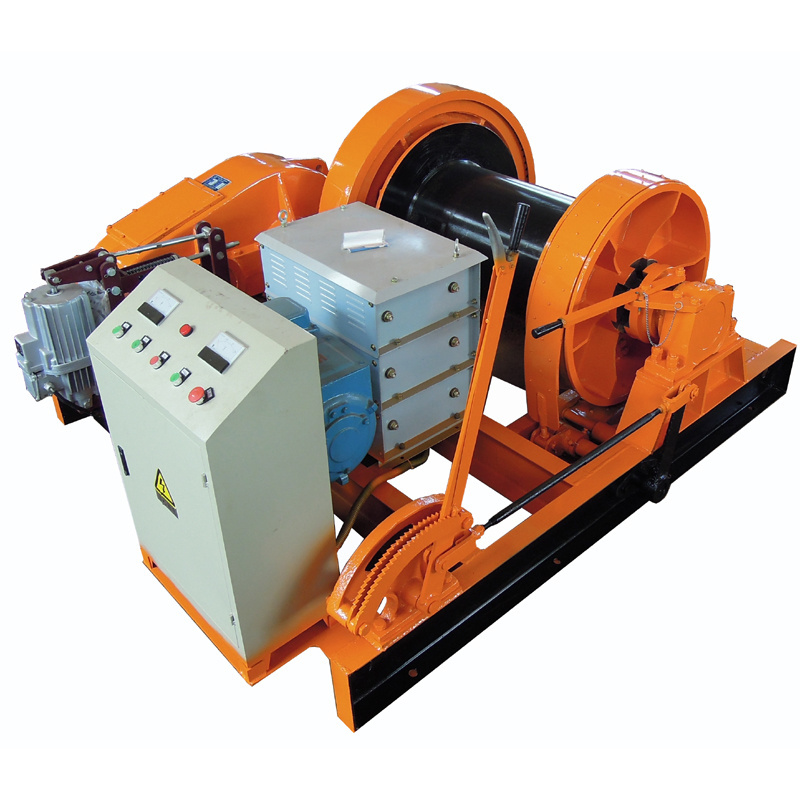

double hydraulic brake electric double brake construction winch (building winch,construction windlass) for building, mine, slipway, marine, hoist, traction, more safety, worth your trust.
When one brake fail, another can still work brake the machine, it is double safety for lifting work, but the price only little higher than normal electric winch
Also we can design other type brake for electric winch, for example hand(foot) brake, disk brake, hydraulic belt brake, electromagnetism brake and so on. Welcome client supply your idea, we are pleased to make your idea to a true-machinery.
|
Model |
JM2 |
JM3 |
JM5 |
JM8 |
JM10 |
|
|
Line pull capacity (kg) |
2000 |
3000 |
5000 |
8000 |
10000 |
|
|
average speed (m/min) |
12 |
10 |
10 |
10 |
9 |
|
|
Wire rope(mm): |
12.5 |
16 |
22 |
26 |
30 |
|
|
Reduction box |
Type |
JZQ350 |
JZQ350 |
JZQ400 |
JZQ500 |
JZQ650 |
|
Transmission ratio |
23.34 |
31.5 |
31.5 |
31.5 |
31.5 |
|
|
Drum (mm) |
Diameter/mm |
273 |
325 |
406 |
500 |
530 |
|
Length |
480 |
520 |
645 |
900 |
1000 |
|
|
Capacity(m) |
150 |
180 |
250 |
300 |
350 |
|
|
motor |
Type |
YZ160M2-6 |
YZ160M2-6 |
YZ160L-6 |
YZR225M-8 |
YZR250M1-8 |
|
Power(kW) |
7.5 |
7.5 |
11 |
22 |
30 |
|
|
Rotate speed(r/min) |
948 |
948 |
953 |
720 |
720 |
|
|
Hydraulic Brake |
YWZ-200/25 |
YWZ-200/25 |
YWZ-300/45 |
YWZ-300/45 |
YWZ-300/45 |
|
|
Equipment Dimension (mm) |
1060x1500x750 |
1600x1100x820 |
1400x1910x950 |
2050x1640x1000 |
2470x2280x1180 |
|
|
Weight(kg) |
630 |
750 |
1200 |
2500 |
3500 |
|
