Quick Details
-
Warranty:
-
1 year, 12 Months
-
Brand Name:
-
Sinyane
-
Model Number:
-
IS IR
-
Place of Origin:
-
Chongqing, China
-
Horsepower:
-
0.5~150hp
-
Outlet Size:
-
32~200mm
-
Power:
-
0.37~125kw, Electric
-
motor:
-
electric/diesel
-
Material:
-
cast iron or stainless steel
-
Feature:
-
High Efficiency
-
Max head:
-
125m
-
Max Flow:
-
400m3/h
-
Certificate:
-
ISO CE
-
Sealing:
-
mechanical seal or packing seal
Quick Details
-
Application:
-
Family Homes, Industrial Utilities, Irrigation and Agriculture
-
Pressure:
-
0~15bar, High Pressure
-
Voltage:
-
220/380/customizable
-
Warranty:
-
1 year, 12 Months
-
Brand Name:
-
Sinyane
-
Model Number:
-
IS IR
-
Place of Origin:
-
Chongqing, China
-
Horsepower:
-
0.5~150hp
-
Outlet Size:
-
32~200mm
-
Power:
-
0.37~125kw, Electric
-
motor:
-
electric/diesel
-
Material:
-
cast iron or stainless steel
-
Feature:
-
High Efficiency
-
Max head:
-
125m
-
Max Flow:
-
400m3/h
-
Certificate:
-
ISO CE
-
Sealing:
-
mechanical seal or packing seal

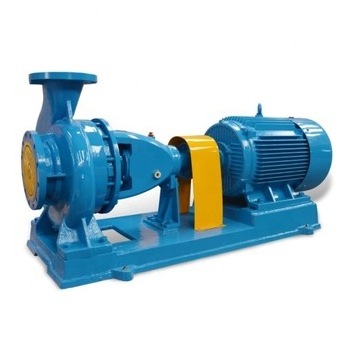

1, IS / IR type single-stage single-suction centrifugal pump according to international standard ISO2858 specified performance and dimension design, mainly IS composed of pump body, pump cover, impeller, shaft, sealing ring, shaft sleeve and suspension bearing see, etc.
2, IS / IR type single-stage single-suction centrifugal pump pump body and pump cover parts, from impeller back place subdivision, what say normally namely after the doors open structure. Its advantage is easy to check and maintain, repair without acting pump body, suction line, discharge line and motor, need to remove the extended coupling among connection parts, can exit rotor parts maintenance.
3, pump shell (i.e., pump body and pump cover) constitute a pump studio. Impeller, shaft and rolling bearing for pump rotor. Suspension bearing components supporting the pump rotor part, rolling bearing by pump radial force and axial force.
4, to avoid axis wear, in shaft through the packing chamber with shaft sleeve parts of the protection. Bush and between shaft must have type O ring, in order to prevent along with surface intake or leakage.
5, pump drive way is through the extended elastic coupling and motor coupling, pump rotation direction, from driving end see, for clockwise.
INQUIRE NOW
|
Item |
China pompe eau horizontal pompe centrifuge water pump pompe |
|
Suction |
End |
|
Model |
IS series |
|
Material |
Cast iron or stainless steel |
|
Mode |
Horizontal |
|
Impeller |
Open impeller |
|
Seal |
Soft packing seal or mechanical seal |
|
Speed |
2900r/min,1450r/min |
|
Theory |
Centrifugal pump |
|
Structure |
Single stage pump |
|
Usage |
irrigation, transfer water and fire |
|
Power |
Electric |
|
Standard or Non |
Standard |
|
Shaft |
Stainless steel |
|
Outlet diameter |
32-200mm |
|
Capacity |
6.3-400m³/h |
|
Head |
5-125m |
|
Power |
0.55-110kw |
|
Warranty |
1year |
|
Certificate |
ISO9001:2008 |
|
OEM |
Acceptable GET THE LATEST PRICE |
