Quick Details
-
Brand Name:
-
LEFOO
-
application:
-
drainage
-
medium:
-
Water, oil, turbid liquid, etc
-
Flow direction:
-
bothway
-
Medium temperature:
-
- 10 ~ 80 degrees
-
connection form:
-
screw thread
Quick Details
-
Port Size:
-
consult the seller
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
LFSV20-B
-
Brand Name:
-
LEFOO
-
application:
-
drainage
-
medium:
-
Water, oil, turbid liquid, etc
-
Flow direction:
-
bothway
-
Medium temperature:
-
- 10 ~ 80 degrees
-
connection form:
-
screw thread

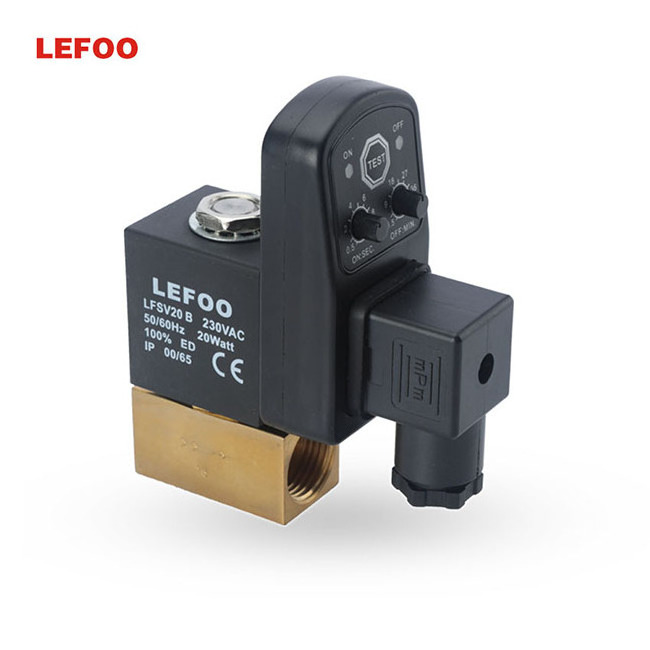

LFSV20-B is a kind of 2/2-way solenoid valve, which is normally closed. It’s used for blocking or mobilizing medium in pipe, to discharge condensate water after compress air.
The main application of LFSV20-B is filter, separator, drying machine, air tank, drop foot, and other components of compressed air system. The drain time and interval time are adjustable.
Specification
|
Model |
LFSV20-B |
|
Media |
Water |
|
Media temperature |
-20~80℃ |
|
Work pressure |
0~16bar |
|
Hole diameter(mm) |
Φ3.0 |
|
Interval time |
0.5~45min |
|
Drain time |
0.5~10sec |
|
Connection type |
3/8” or 1/4” is available |
