Quick Details
-
Application:
-
Engineering & Construction
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CLW
-
Weight (KG):
-
11495 kg
-
Vehicle name:
-
truck mounted crane
-
Crane capacity:
-
1-150 ton option
-
Crane type:
-
telescopic boom crane, folding arm crane
-
Driven form:
-
both left and right hand drive trucks
-
Chassis option:
-
DFAC,FOTON,JAC,SINOTRUK, etc.
-
Cargo body material:
-
steel plate
-
Color of truck crane:
-
as customer's demands
-
Delivery time:
-
25 working days for new crane truck
Quick Details
-
Rated Loading Capacity:
-
6000 kg
-
Max. Lifting Height:
-
10M
-
Engine Brand:
-
YUNNEI
-
Application:
-
Engineering & Construction
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CLW
-
Weight (KG):
-
11495 kg
-
Vehicle name:
-
truck mounted crane
-
Crane capacity:
-
1-150 ton option
-
Crane type:
-
telescopic boom crane, folding arm crane
-
Driven form:
-
both left and right hand drive trucks
-
Chassis option:
-
DFAC,FOTON,JAC,SINOTRUK, etc.
-
Cargo body material:
-
steel plate
-
Color of truck crane:
-
as customer's demands
-
Delivery time:
-
25 working days for new crane truck
We are 12 years professional manufacturer of special trucks,supply different kinds of trucks,can be customized as customer requirements.
(1). Capacity
: 1-150 ton truck crane.
(2). Steering wheel
: both left and right hand drive,meet the needs of different countries.
(3). Emission standard
: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 crane truck
(4). Truck chassis
: option japan and china brand
Crane truck is also called truck crane,truck with crane,truck mounted crane,crane lorry,engine crane,boom truck with crane,etc.

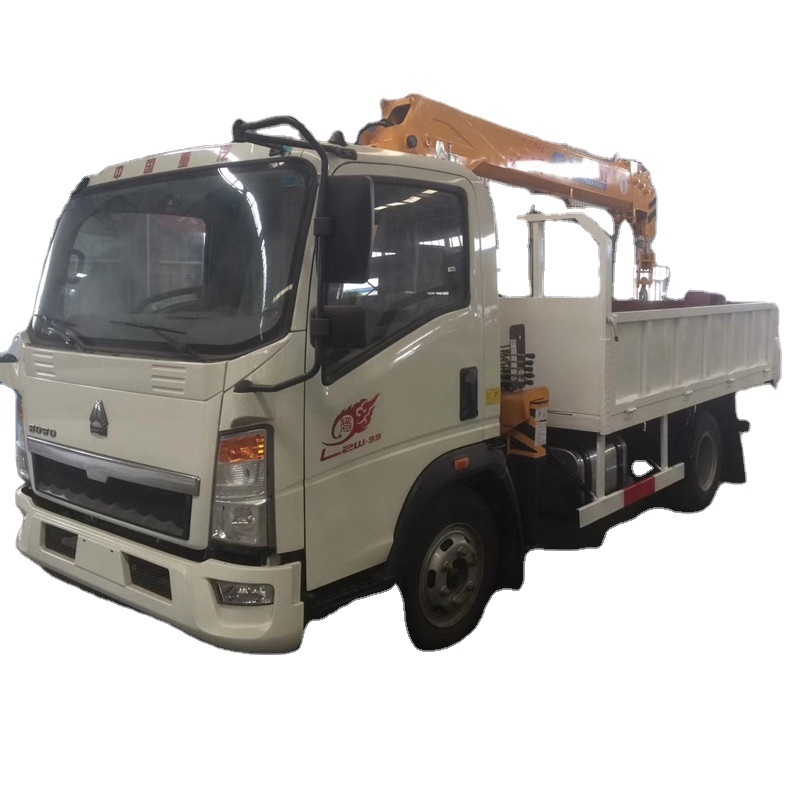

New HOWO truck crane 4 ton small dump trucks with crane.
Pictures
|
C omplete Vehicle Parameter |
|
|
Vehicle |
HOWO truck with crane |
|
Overall dimension ( mm ) |
728 0 × 2 38 0 × 3 45 0 |
|
Cargo box ( mm ) |
4 20 0 × 2 200 × 55 0 |
|
Gross vehicle weight ( kg ) |
Appro × 11495 |
|
Net weight ( kg ) |
Appro × 5495 |
|
Payload ( kg ) |
Appro × 6 000 |
|
Wheel base ( mm ) |
38 00 |
|
Max speed (Km/h) |
9 0 |
|
HOWO Truck Chassis Parameter |
|
|
Cabin |
Single row cabin, power steering, air conditioner, 3 pass e ngers |
|
Traction system |
4 × 2 |
|
Engine |
Brand : YUNNEI Model : YN4102QBZL Engine power: 116 h p Fuel t ype : diesel Displacement : 3.76L Emission standard : Euro 3 |
|
T ransmission |
6 forward, 1 reverse , manu a l operated |
|
Tire model |
7.50R16 |
|
No.of tires |
6+1pcs |
|
Crane Parameter |
|
|
Brand |
XCMG |
|
Crane model |
SQ 4SA3 (telescopic boom) |
|
Max imum lifting weight |
4 000kg |
|
No.of boom |
4 |
|
Max working radius |
9.6m |
|
Max lifting height |
11.5 m |
|
S lew angle |
All rotation |
|
Oil tank |
60L |
|
C argo Box Parameter |
|
|
Standard configuration |
1. Material: steel plate , thickness floor 3mm, side 2mm. 2. Dumper box. 3. Color as customer ’ s request, electrophoretic spray painting process. |
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
