Quick Details
-
Material:
-
paper
-
Body Material:
-
aluminum alloy
-
Working Medium:
-
Air
-
Guaranteed pressure resistance:
-
1.5Mpa
-
Max. working pressure:
-
1.0MPa
-
Working temperature:
-
5~60
-
pressure adjusting range:
-
0.05~0.85MPa
-
Valve type:
-
with overflow
-
Port size:
-
M5 G1/8 1/4 3/8 1/4 3/8 1/2 3/4 1
-
Certificate:
-
CE / ROHS/ ISO9001
Quick Details
-
Marketing Type:
-
Hot Product 2020
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
VPC
-
Material:
-
paper
-
Body Material:
-
aluminum alloy
-
Working Medium:
-
Air
-
Guaranteed pressure resistance:
-
1.5Mpa
-
Max. working pressure:
-
1.0MPa
-
Working temperature:
-
5~60
-
pressure adjusting range:
-
0.05~0.85MPa
-
Valve type:
-
with overflow
-
Port size:
-
M5 G1/8 1/4 3/8 1/4 3/8 1/2 3/4 1
-
Certificate:
-
CE / ROHS/ ISO9001

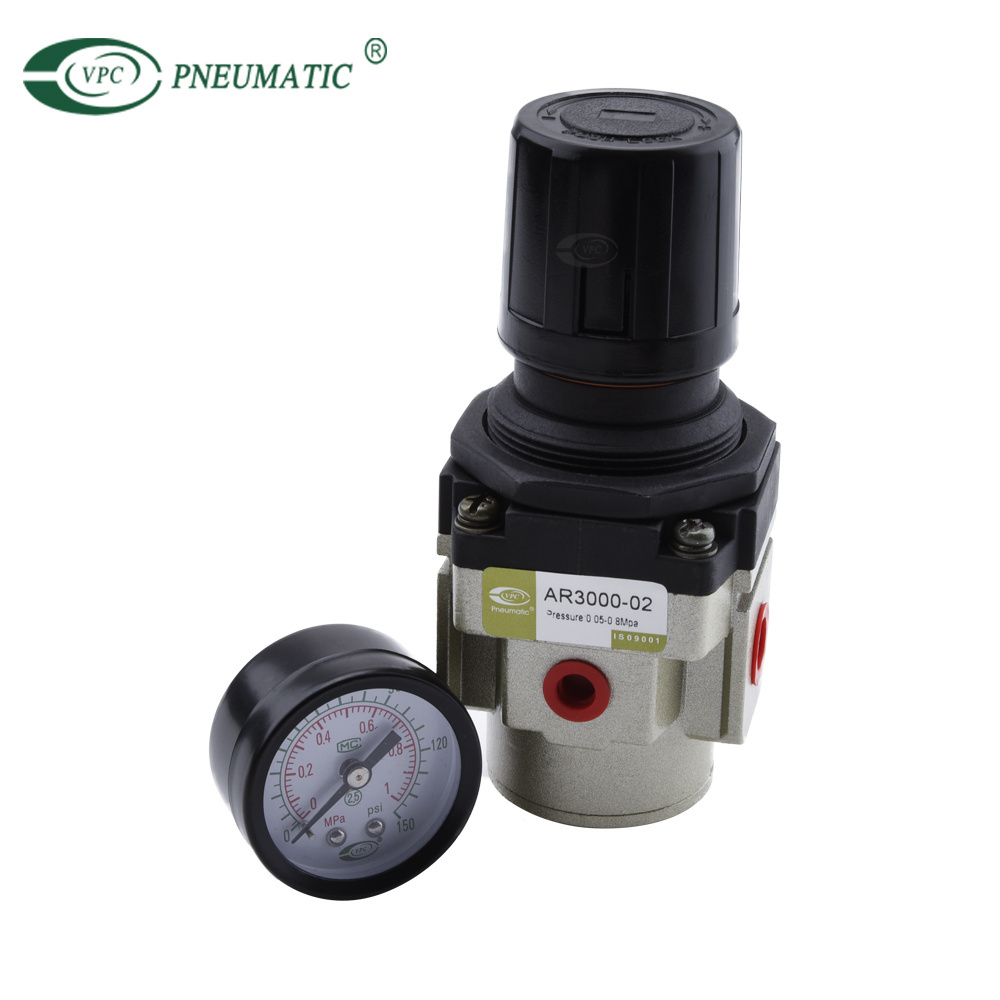

SMC type A series Air Treatment Units AR series air regulator with auto drain
The OR maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.
The proportional lubricator adds a regulated quantity of oil to the filtered air.The oil-mist content proportional to the flow and oil can be added during operation.
The oil drip rate is controlled by the adjustable bolt.Normally,1to 12 drops /1000L of the air is sufficient.
FRL- Air Treatment Unit -OU (filter+regulator+lubricator)
The proportional lubricator adds a regulated quantity of oil to the filtered air.The oil-mist content proportional to the flow and oil can be added during operation.
The oil drip rate is controlled by the adjustable bolt.Normally,1to 12 drops /1000L of the air is sufficient.
FRL- Air Treatment Unit -OU (filter+regulator+lubricator)
|
Guaranteed pressure resistance
|
1.5Mpa
|
|
Max.working pressure
|
1.0Mpa
|
|
Working Temperature
|
5-60°C
|
|
Pressure adjusting range
|
0.05-0.85Mpa
|
|
Valve type
|
With overflow
|
Ordering Code
A Series Air Treatment Units
AR
30 00
- 03
AR→
Regulator
03→Standard Voltage
M5:M5 01:1/8"
02:1/4" 03:3/8"
04:1/2" 06:3/4"
10:1"
30→Orifice
10:1000 Body Size
20:2000 Body Size
30:3000 Body Size
40:4000 Body Size
50:5000 Body Size
|
Specifications
|
|
|
|
|
|
|||||
|
Model
|
Rated flow
(L/min)
|
Port size
|
Pressure gauge
thread size(G)
|
Weight
(Kg)
|
Bracket
|
|||||
|
AR1000-M5
|
100
|
M5''
|
G1/6''
|
0.08
|
B120
|
|||||
|
AR2000-01
|
500
|
G1/8''
|
G1/8''
|
0.27
|
B220
|
|||||
|
AR2000-02
|
|
G1/4''
|
|
|
|
|||||
|
AR2500-02
|
2000
|
G1/4''
|
G1/8''
|
0.27
|
B220
|
|||||
|
AR2500-03
|
|
G3/8''
|
|
|
|
|||||
|
AR3000-02
|
2500
|
G1/4''
|
G1/8''
|
0.41
|
B320
|
|||||
|
AR3000-03
|
|
G3/8''
|
|
|
|
|||||
|
AR4000-03
|
6000
|
G3/8''
|
G1/4''
|
0.84
|
B420
|
|||||
|
AR4000-04
|
|
G1/2''
|
|
|
|
|||||
|
AR4000-06
|
6000
|
G3/4''
|
G1/4''
|
0.94
|
|
|||||
|
AR5000-06
|
8000
|
G3/4''
|
G1/4''
|
1.19
|
|
|||||
|
AR5000-10
|
|
G1''
|
|
|
|
|||||
