Quick Details
-
Voltage:
-
380V
-
Dimensions:
-
2600X615X1400
-
Rated Duty Cycle:
-
1-8min
-
Rated Capacity:
-
10 KW
-
Current:
-
10A
-
Weight (KG):
-
350 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Reflow Soldering zones:
-
up 4/bottom 4
-
Reflow Soldering Length:
-
1400mm
-
Max width of PCB:
-
300mm
-
Transmission direction:
-
left to right
-
Transmission belt height:
-
800±20mm
-
Transmission speed:
-
0-2000mm/min
-
Reflow Oven Starting power:
-
10KW
-
Reflow Oven Running power:
-
4KW
-
Temperature control range:
-
Room temperature-300 C
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Reflow Oven
-
Use:
-
PCB Soldering
-
Voltage:
-
380V
-
Dimensions:
-
2600X615X1400
-
Rated Duty Cycle:
-
1-8min
-
Rated Capacity:
-
10 KW
-
Current:
-
10A
-
Weight (KG):
-
350 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Reflow Soldering zones:
-
up 4/bottom 4
-
Reflow Soldering Length:
-
1400mm
-
Max width of PCB:
-
300mm
-
Transmission direction:
-
left to right
-
Transmission belt height:
-
800±20mm
-
Transmission speed:
-
0-2000mm/min
-
Reflow Oven Starting power:
-
10KW
-
Reflow Oven Running power:
-
4KW
-
Temperature control range:
-
Room temperature-300 C

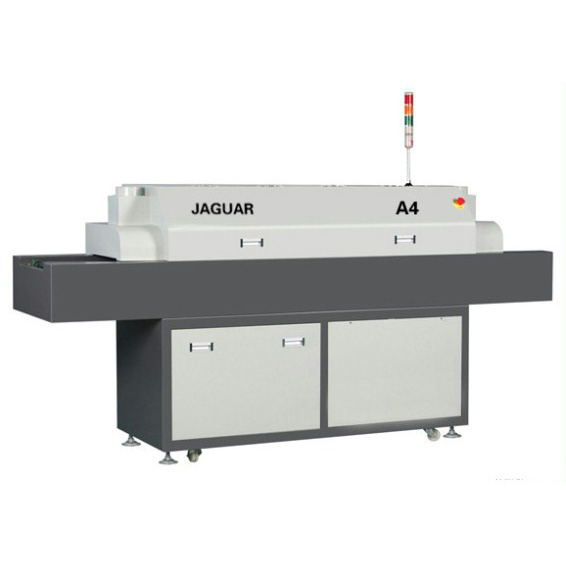

Reflow oven/Reflow soldering machine for SMD Component Soldering Process A4
Features:
1. Small and low energy consumption to 4kw per hour
2.PID CONTROLLed TEMPERATURE TO MAX.300 CENTIGRADE
3. Only 350kg on weight
Reflow Oven Specification:
| model | Jaguar A4 |
| Number of heating-zone | up four/bottom four |
| Length of heating-zone | 1400mm |
| Heating way | Independent and cycle full hot air |
| Max width of PCB board | 300mm |
| Transmission direction | left→right |
| Transmission belt height | 800±20mm |
| Transmission speed | 0-2000mm/min |
| Starting power | 10KW |
| Normal working consume | 4KW |
| Warm-up time | About 20 minutes |
| Temperature control range | Room temperature-300ºC |
| Temperature control way | PID controlling |
| Temperature precision | accuracy ±1ºC |
| Temperature disparity on PCB board | ±2ºC |
| Abnormity alarm |
Temperature abnormity supper high or supper low temperature
After constant temperature |
| Power supply | 5 lines and 3 phase 380V 50/60Hz |
| dimension(mm) | 2600×615×1400mm |
| weight | 350KG |
Mahcines are delivered in polywood case with vacuum package.
1, our service tenet: fast, thoughtful and thorough
2, service goals: service quality to win the user satisfaction
3. the service efficiency: the warranty period or the warranty as equipment
failure, the supplier in the receipt of the notification, the maintenance personnel in one hour to respone.
4, service principle: product warranty period of 12 months, in the guarantee period the supplier will free maintenance and replacement of quality caused by the damaged parts.
