Quick Details
-
Warranty(Year):
-
1-Year
-
Product Weight（kg）:
-
5
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Flux(lm):
-
4110
-
CRI (Ra>):
-
88
-
Working Temperature(℃):
-
-10 - 45
-
Working Lifetime(Hour):
-
10000
-
Place of Origin:
-
GUA
-
Brand Name:
-
Knight
-
Emitting Color:
-
RGB
-
Product name:
-
Magic 6w laser light
-
Laser power:
-
6W [Red: 1.5W 638nm; Green: 1.5W 520nm; Blue: 3W 445nm]
-
Cooling method:
-
the whole machine is cooled by air coolin
-
Control signal mode:
-
TTL/analog
-
Laser divergence angle:
-
<1.2mrad (full angle)
-
Laser spot size:
-
3*6.5mm at the light outlet
-
Galvanometer:
-
AT35S 35kpps galvanometer
-
Scanning angle:
-
up to 60°
-
Laser service life:
-
≥10000 hours
-
Laser class:
-
Class IV
Quick Details
-
Color Temperature(CCT):
-
RGB
-
Type:
-
LASER LIGHTS
-
Application:
-
stage,club,bar,DJ,parties,theme park
-
Warranty(Year):
-
1-Year
-
Product Weight（kg）:
-
5
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Flux(lm):
-
4110
-
CRI (Ra>):
-
88
-
Working Temperature(℃):
-
-10 - 45
-
Working Lifetime(Hour):
-
10000
-
Place of Origin:
-
GUA
-
Brand Name:
-
Knight
-
Emitting Color:
-
RGB
-
Product name:
-
Magic 6w laser light
-
Laser power:
-
6W [Red: 1.5W 638nm; Green: 1.5W 520nm; Blue: 3W 445nm]
-
Cooling method:
-
the whole machine is cooled by air coolin
-
Control signal mode:
-
TTL/analog
-
Laser divergence angle:
-
<1.2mrad (full angle)
-
Laser spot size:
-
3*6.5mm at the light outlet
-
Galvanometer:
-
AT35S 35kpps galvanometer
-
Scanning angle:
-
up to 60°
-
Laser service life:
-
≥10000 hours
-
Laser class:
-
Class IV
Products Description
|

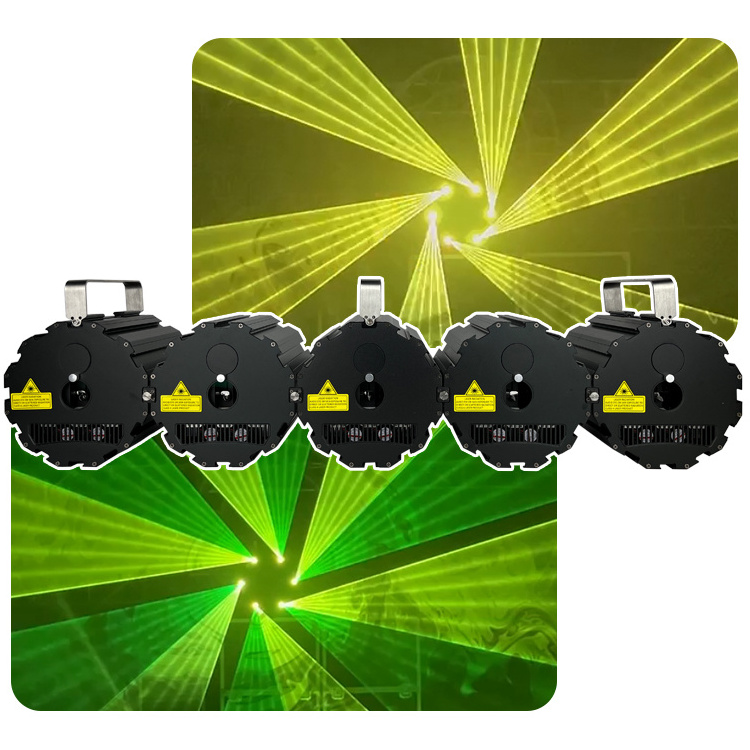

Magic 6W RGB Laser Light Specification
|
|
|
|
|
||||
|
Laser Life
|
10,000 hours
|
|
|
|
||||
|
Laser Power
|
6W [Red: 1.5W 638nm; Green: 1.5W 520nm; Blue: 3W 445nm]
|
|
|
|
||||
|
Scanner
|
AT35S 35kpps
|
|
|
|
||||
|
Feature
|
It can be freely spliced and used separately. Layouts can be made according to different scenarios
|
|
|
|
||||
|
Laser level
|
Class IV
|
|
|
|
||||
|
Laser diode type
|
TTL/analog modulation
|
|
|
|
||||
|
Scanning angle
|
up to 60°
|
|
|
|
||||
|
Cooling method
|
the whole machine is cooled by air cooling
|
|
|
|
||||
|
Laser spot size
|
5*6.2mm at the size of the outlet
|
|
|
|
||||
|
Laser divergence angle
|
<1.2mard(full color)
|
|
|
|
||||
|
Control mode
|
SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels (with RDM), master/slave mode, ILDA
software control |
|
|
|
||||
|
Back control
|
AT-S5 LCD, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in/out, fuse
|
|
|
|
||||
|
Working temperature
|
-10C-45°C
|
|
|
|
||||
|
Voltage
|
100-250V
|
|
|
|
||||
|
Rated power
|
100W
|
|
|
|
||||
|
Application
|
stage, DJ, event disco, club, bar, etc.
|
|
|
|
||||
|
Product Size
|
22*22*22cm/28cm (L*W*H) / 5kgs
|
|
|
|
||||
|
IP rate
|
IP54
|
|
|
|
||||
