Customized 10k ntc temperature sensor for coffee machine coffee maker sensor controller

Customized 10k ntc temperature sensor for coffee machine coffee maker sensor controller

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $2

≥10000 Pieces

US $1.2

≥100000 Pieces

US $0.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Name:: Temperature sensor for induction cooker

Output:: NTC temperature sensor

Resistance:: at 25°C=10K ohm

B value:: 3435/3950

Working Temperature Range:: -30℃-150℃

Connector:: CUSTOMIZED

Wire length:: 1m, can be customized

Application:: induction cooker

Probe:: OT Ring lug

Material:: Stainless steel 304

Quick Details

Warranty:: 1 year

Place of Origin:: Guangdong, China

Model Number:: NTC Temperature sensor for freezer

Name:: Temperature sensor for induction cooker

Output:: NTC temperature sensor

Resistance:: at 25°C=10K ohm

B value:: 3435/3950

Working Temperature Range:: -30℃-150℃

Connector:: CUSTOMIZED

Wire length:: 1m, can be customized

Application:: induction cooker

Probe:: OT Ring lug

Material:: Stainless steel 304

Customized 10k ntc temperature sensor for coffee machine coffee maker sensor controller

If you are not sure what kind of temperature sensor is right for your project.

MUY Technology can help you make that determination.

Products Description

NTC Thermistors NTC Temperature sensor RT (25℃）	1K；2K；2.2k；2.7k；3K；5K；7K；8K；10K；12K；15K；20K；25K；30K；40K；47K；50K；60K；70K；100K；200K；230K；250K；470K；500K；1000K；CUSTOMIZED
Accuracy	1%, 2%
Temperature range	-50 ℃ to +300 ℃
B Value	3274k；3435k；3470k；3899k；3920k；3928k；3950k；3977k；3984k； 4100k；4200k；4400k；CUSTOMIZED
Probe / housing	bullet type, cylinder type, surface mounting type, screw type, ring lug,Epoxy resin seal plastic injection probe, cylinder probe, non-encapsulated probe, flange probe, micro-probe, clamp type , CUSTOMIZED
Wire materials	PVC wire；TPE wire；PTFE wire； silicone wire；glass fiber tube；teflon wire；CUSTOMIZED
Housing material	Nickel plated copper, brass, stainless steel, aluminum, plastic, tpe, ABS CUSTOMIZED
Connector	RJ11, RJ12, RJ45, RJ50, XH-3Y, SM, PH, Aviation plug, terminal blocks, EL, Fork type terminal, 2.5mm stereo plug, 3.5mm jack stereo plug, AMP, CUSTOMIZED
Wire length	0.5M, 1M, 2M, 3M, 5M, 10M, CUSTOMIZED
Applications	Water heater, coffee maker, water dispenser. Smart toilet, etc.

Metal Smooth Tube Housing

Flanged Housing

Ring lug housing

M5 / M6 / M8 ring lug and Customized

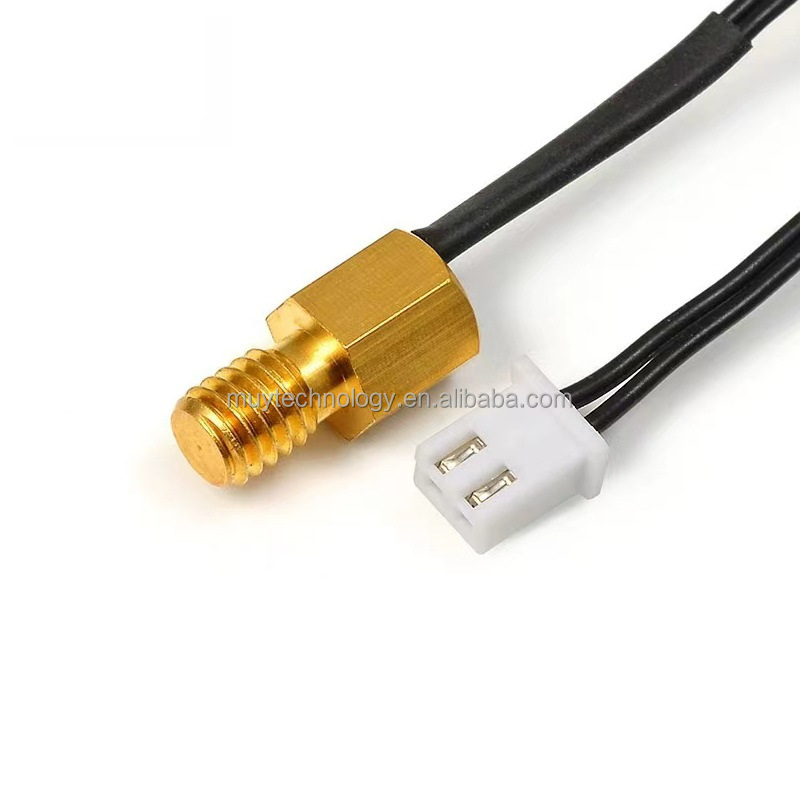

Threaded housing

G1/4, G1/8, NPT1/8, M8, M12 and Customized

Plastic Housing

ABS, TPE, TPEE, Plastic and etc

Thermistor , No housing

Applications

For Home Appliances

floor heating, fish tank, refrigerator, washing machine,air conditioner, cooker,oven,smart toilet, coffee maker, Water boiler,iron, dryer, BMS, automotive (engine, water tank, oil tank), energy storage, solar engery industry

For Office Appliance

Printers, fire alarms, vending machines, freezer windows, food probes

For T ransportation, Agriculture, I ndustry

Cars, food delivery trucks, ships, machine tools, greenhouses, industrial machinery

Medical

Thermometer, Dialyzer, Sterilization Cabinet, Incubator, Automatic Analyzer, Dispenser, Catheter and etc

About MUY Technology

MUY TECHNOLOGY is a Professional Manufacturer with Rich Experience in OEM & ODM Service

MUY Technology (Shenzhen) Co.,Ltd is a company which dedicates its passion in producing and marketing of kinds of sensors. With excellent product quality and efficient technical and logistic service support, MUY Technology has won good reputation worldwide. With more than 10 year’s temperature and pressure control products design and service experience, the company has become a high-tech enterprise which providing R&D, manufacturing, marketing and operation service, we can provide you professional product at competitive pricing. We are ISO9001:2015 certified and now working on TS16949. Also, some of our products are UL certified and all are ROHS compliant. In the future, MUY Technology will pursue higher objective of development and do its utmost for product and technology innovation so as to help our customers with satisfied solutions on products and services.

Our Certifications

Packaging and Shipping

FAQ

Q:How long will you give me the reply?

A: we will contact you in 12 hours as soon as we can.Whatsapp: +86-18682276926
Email: info@muytechnology.com

Q:Can you accept ODM & OEM service ?
A:We professional provide OEM &ODM service and most of our product can be customized.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.

Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.

Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.

Q: How can I get the quotation?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.

Q: How can I get my sensors?/ What's the means of transport?
A. We main delivery goods by express: DHL, FedEx, UPS, TNT, etc or logistics by indicator.
