Low noise
High-efficiency
Durable
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
330V 220V 110V
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
300KGS
-
Voltage/Frequency:
-
AC 220V 50HZ~60HZ
-
Application:
-
Metal surface cleaning
-
Equipment Name:
-
Air compressor
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
COLO
-
Model Number:
-
CL-SAC-75A
-
Voltage:
-
330V 220V 110V
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
300KGS
-
Voltage/Frequency:
-
AC 220V 50HZ~60HZ
-
Application:
-
Metal surface cleaning
-
Equipment Name:
-
Air compressor
Product Description

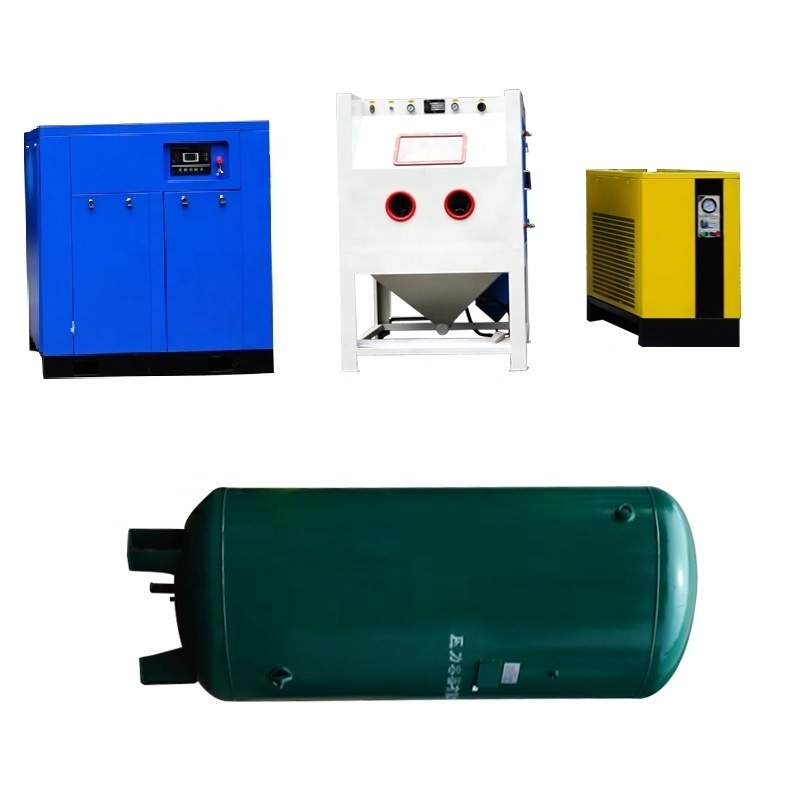

Industrial air compressor package machine compressed air supply for sand blasting machine
1. The machine has a comprehensive noise protection, environmental protection, energy saving, quiet.
2. Rational design reduces the number of pipe fittings, ensuring no leakage phenomenon.
3. With a unique outer box to disassemble the whole structure, making the repair and maintenance work easily.
4.
Suitable for most industrial equipment such as sandblasters, sprayers, etc.
|
Model
|
KF-SAC-75A
|
|
Type
|
Sandblasting pot
|
|
Motor power
|
55 KW（75HP）
|
|
Volume flow
|
9.8m3/min
|
|
Work pressure
|
0.8Mpa
|
|
Power Voltage
|
380/3/50 (V/PH/HZ) or customized
|
Environmental protective
Application:
Powder coating equipments
Sandblasting equipment
Powder coating spray booth
Recommend Products
Industrial Dry Sandblasting Cabinet
Our sandblast cabinet is designed for abrasive blasting of industrial parts or components, like steel parts, aluminum parts, castings, alloys, stones, glass or plastic materials.
It is an economical siphon blasting equipment that achieve general surface finishing purpose, such as removing mill scales, contaminates, old coating layers, etc.
Each of our sandblaster cabinets are designed with effective dust collecting system which configured with cartridge filter, fan motor, remove dust away from the operator's window for increased visibility and accuracy when cleaning. It is optional to add a cyclone device used to separate ultrafine abrasives from dusts.
Size Information
Available Model
|
No.
|
Model No
|
Description
|
|
|
|
|
|
1
|
KF-SAC-10A
|
Volume flow: 1.1m3/min Work pressure:0.8Mpa Motor power: 7.5KW (10HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
3
|
KF-SAC-15A
|
Volume flow: 1.6m3/min Work pressure:0.8Mpa Motor power: 11KW (15HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
5
|
KF-SAC-20A
|
Volume flow: 2.2 m3/min Work pressure:0.8Mpa Motor power: 15KW (20HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
7
|
KF-SAC-25A
|
Volume flow: 2.9 m3/min Work pressure:0.8Mpa Motor power: 18.5KW (25HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
9
|
KF-SAC-30A
|
Volume flow: 3.5 m3/min Work pressure:0.8Mpa Motor power: 22KW (30HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
11
|
KF-SAC-40A
|
Volume flow: 5 m3/min Work pressure:0.8Mpa Motor power: 30KW (40HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
13
|
KF-SAC-50A
|
Volume flow: 6.1 m3/min Work pressure:0.8Mpa Motor power: 37KW (50HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
15
|
KF-SAC-60A
|
Volume flow: 7.7 m3/min Work pressure:0.8Mpa Motor power: 45KW (60HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
17
|
KF-SAC-75A
|
Volume flow: 9.8m3/min Work pressure:0.8Mpa Motor power: 55KW (75HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
19
|
KF-SAC-100A
|
Volume flow: 13.3m3/min Work pressure:0.8Mpa Motor power: 75KW (100HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
21
|
KF-SAC-125A
|
Volume flow: 15m3/min Work pressure:0.8Mpa Motor power: 90KW (120HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
23
|
KF-SAC-150A
|
Volume flow: 19m3/min Work pressure:0.8Mpa Motor power: 110KW (150HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
25
|
KF-SAC-180A
|
Volume flow: 23m3/min Work pressure:0.8Mpa Motor power: 132KW (175HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
27
|
KF-SAC-220A
|
Volume flow: 26.5m3/min Work pressure:0.8Mpa Motor power: 160KW (200HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
|
27
|
KF-SAC-250A
|
Volume flow: 31m3/min Work pressure:0.8Mpa Motor power: 185KW (250HP) Power Voltage: 380/3/50 (V/PH/HZ)
|
