Quick Details
-
Brand Name:
-
HengYuan Brand
-
Voltage:
-
380v,50hz
-
Dimension(L*W*H):
-
2600x1000x2100MM
-
Weight (KG):
-
550 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
product name:
-
charcoal pellet mill
-
capacity:
-
1-3t/h
-
raw materials:
-
sawdust,branch,bamboo power,crop straw,etc.
-
moulder:
-
double-layer die
-
brand name:
-
HengYuan brand
-
roller:
-
3 roller
-
voltage:
-
380v,50hz
-
Weight:
-
2.5-5t
-
Power:
-
90kw
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Certification:
-
ISO,CE
Quick Details
-
Pellet Diameter (mm):
-
2 - 10
-
Output (kg/h):
-
100 - 1500 kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HengYuan Brand
-
Voltage:
-
380v,50hz
-
Dimension(L*W*H):
-
2600x1000x2100MM
-
Weight (KG):
-
550 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
product name:
-
charcoal pellet mill
-
capacity:
-
1-3t/h
-
raw materials:
-
sawdust,branch,bamboo power,crop straw,etc.
-
moulder:
-
double-layer die
-
brand name:
-
HengYuan brand
-
roller:
-
3 roller
-
voltage:
-
380v,50hz
-
Weight:
-
2.5-5t
-
Power:
-
90kw
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Certification:
-
ISO,CE
Large capacity charcoal pellet mill/coal pellet machine 0086 18039505731

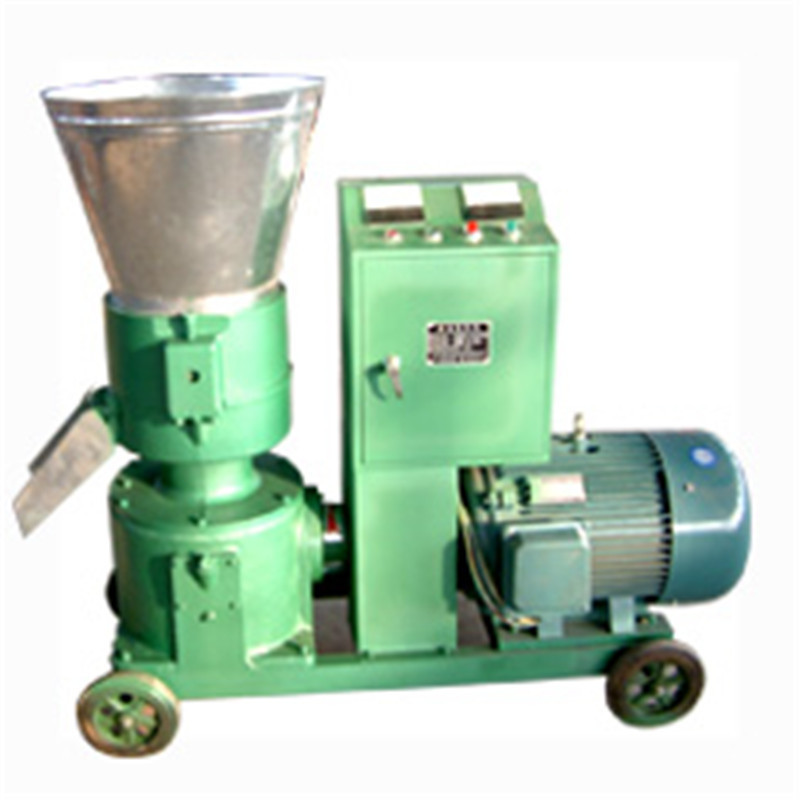

Our company produces the SKJ series pellet mill, which absorbs elite of Germany pellet mill, the heart parts “die” and “rollers” are made by high alloy steel wear resistant material according to different materials, have long lifetime. The transmission parts adopt auto differential, drum juncture or universal joint drive. Little noise, low energy consumption, high efficiency and easy operation the series pellet mills were developed elaborately to be our patent products. The products are applied to large-sized, medium-sized and small bio-mass energy fuel plants, wood working factory, municipal refuse cleaning plant, organic fertilizer plant, chemical plant, animal feed plant and fishery etc. With low investment, quick effective, no risk, our pellet mills are the most ideal compact shaped equipments.
SKJ series pellet mills are produced by special technologies. The pellets made by our pellet mills have high density and high combustion value. The pellet specifications can be adjusted at will through changing dies.
|
Model |
Capacity |
Powder |
Weight |
Size
|
|
SKJ3-350 |
400-600kg/h |
37kw |
2.2t |
1900*850*1750 mm |
|
SKJ3-450
|
600-800kg/h |
55kw |
4.3t |
2300*1100*1900 mm
|
|
SKJ3-550
|
700-1200kg/h |
90kw |
5.5t |
2350*1000*2050 mm |
|
Remarks |
|
|
|
|
|
1,The motor power is 380V.50hz, we also could match you as 440v, 220v, three phase |
||||
|
2, the die materials is alloy steel, will has longer life |
||||
Example of Pellet Line
Crusher Process——→Drying Process——→Pelleting Process——→Cooling Process ——→ Packing system
MHY-RingDie seires
|
Model |
POWER |
CAPACITY |
ROLLER QTY |
SIZE |
NET WEIGHT |
|
|
M
HY
350
|
Total
|
Screw Feeder 1.5KW
|
300-500KG/H |
2 |
2600x1000x2100MM |
1990KGS |
|
Conditioner 5.5KW |
||||||
|
Force feeder 0.55KW |
||||||
|
Main motor 55KW |
||||||
|
M
HY
420
|
Total
|
Screw Feeder 1.5KW frequency control |
800-1000 KG/H |
2 |
2750x1200x2200MM |
2430KGS |
|
Conditioner 5.5KW |
||||||
|
Force feeder0.55KW |
||||||
|
Main motor 90KW |
||||||
|
M
HY
520
|
Total
|
Screw Feeder 2.2KW
|
1200-1500KG/H |
2 |
2750x2400x2850MM |
6500KGS |
|
Conditioner 5.5KW |
||||||
|
Force feeder1.1KW |
||||||
|
Main motor 75KW*2 |
||||||
A.What is your raw material?
-----According to different raw material(such as hard wood,soft wood,straw,rice hust), capacity is different.
B.What is your raw material size?
-----Best size for pressing high quality pellets is 3mm.
C.What is the moisture of your raw material?
-----Better to be 10-15%.
D.What is the final product?
-----the same as the pictures,
E.What is the spare parts?
