M8 series water pump is one of the best-selling products of our company. Although the caliber of this pump is small, the suction can reach 9 meters. Simple and convenient operation, quick start with one click. This product can effectively deal with urban flood control, farmland irrigation and other problems.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
huanghe tieniu
-
Model Number:
-
M8
-
Place of Origin:
-
SHG
-
Horsepower:
-
82
-
Cable Length:
-
null
-
Outlet Size:
-
200mm
-
Power:
-
60KW
-
motor:
-
DIESEL ENGINE
-
Max Flow:
-
820m3/h
-
head:
-
20m
-
Material:
-
Cast Iron
-
Advantage:
-
Can perform idle operation
Quick Details
-
Application:
-
Developing World Water Solutions, Irrigation and Agriculture, Marine, Mining industry, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
24v
-
Warranty:
-
2 years
-
Brand Name:
-
huanghe tieniu
-
Model Number:
-
M8
-
Place of Origin:
-
SHG
-
Horsepower:
-
82
-
Cable Length:
-
null
-
Outlet Size:
-
200mm
-
Power:
-
60KW
-
motor:
-
DIESEL ENGINE
-
Max Flow:
-
820m3/h
-
head:
-
20m
-
Material:
-
Cast Iron
-
Advantage:
-
Can perform idle operation
Certifications
Product description

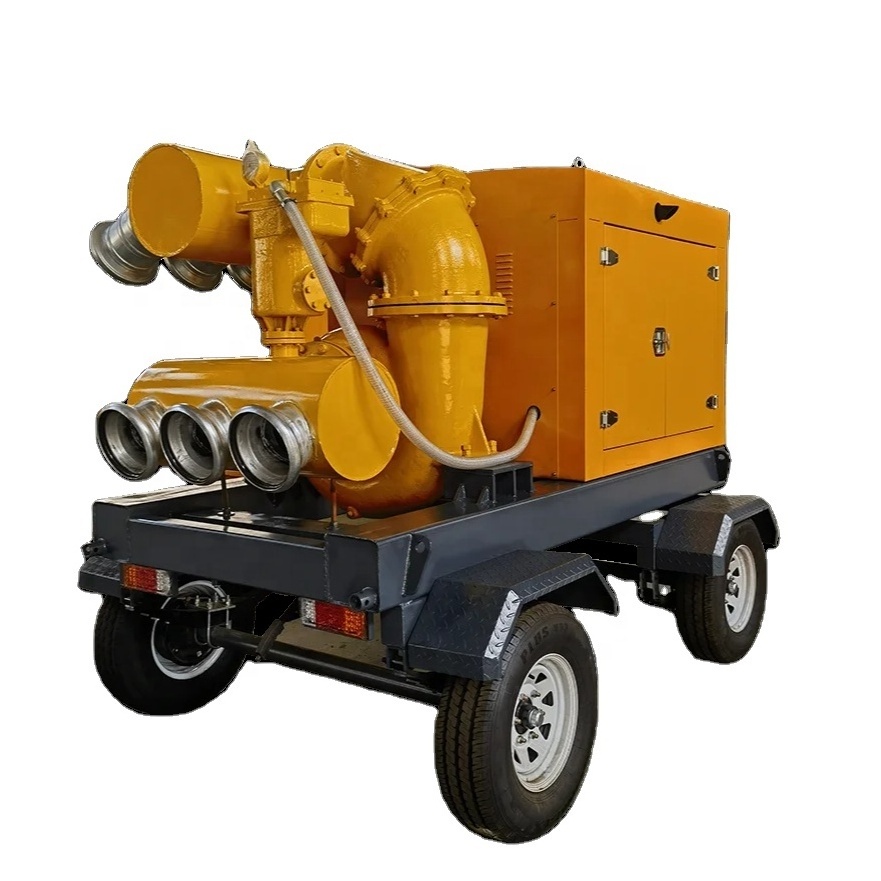

M8 series high vacuum diesel engine self suction pump
Product photos
On site homework photos
Similar products
Product specifications
|
Model
|
Flow
（m³/h)
|
Lift
(m)
|
Suction height
(m)
|
Speed
(RPM)
|
Power
(kw)
|
|
M8-20
|
200
|
20
|
9
|
1450
|
18.5
|
|
M8-17
|
184
|
17
|
9
|
1450
|
15
|
|
M8-32
|
200
|
32
|
9
|
1450
|
30
|
|
M8-27
|
187
|
27
|
9
|
1450
|
22
|
|
M8-50
|
200
|
50
|
9
|
1450
|
45
|
|
M8-44
|
187
|
44
|
9
|
1450
|
37
|
|
M8-80
|
200
|
80
|
9
|
1450
|
90
|
|
M8-70.5
|
182
|
70.5
|
9
|
1450
|
75
|
|
M8-10
|
358
|
10
|
9
|
1450
|
18.5
|
|
M8-20
|
400
|
20
|
9
|
1450
|
30
|
|
M8-16
|
358
|
16
|
9
|
1450
|
22
|
|
M8-20
|
300
|
20
|
9
|
1450
|
22
|
|
M8-16
|
280
|
16
|
9
|
1450
|
18.5
|
|
M8-32
|
400
|
32
|
9
|
1450
|
55
|
|
M8-28
|
374
|
28
|
9
|
1450
|
45
|
|
M8-32
|
300
|
32
|
9
|
1450
|
45
|
|
M8-28
|
280
|
28
|
9
|
1450
|
37
|
|
M8-50
|
400
|
50
|
9
|
1450
|
75
|
|
M8-44
|
374
|
44
|
9
|
1450
|
75
|
|
M8-32
|
320
|
32
|
9
|
1450
|
45
|
|
M8-50
|
300
|
50
|
9
|
1450
|
75
|
|
M8-44
|
280
|
44
|
9
|
1450
|
55
|
|
M8-32
|
245
|
32
|
9
|
1450
|
37
|
|
M8-80
|
400
|
80
|
9
|
1450
|
132
|
|
M8-70
|
374
|
70
|
9
|
1450
|
110
|
|
M8-60
|
346
|
60
|
9
|
1450
|
90
|
|
M8-50
|
320
|
50
|
9
|
1450
|
75
|
|
M8-80
|
300
|
80
|
9
|
1450
|
110
|
|
M8-70
|
280
|
70
|
9
|
1450
|
90
|
|
M8-60
|
262
|
60
|
9
|
1450
|
75
|
|
M8-52
|
245
|
52
|
9
|
1450
|
55
|
Operation guide
Method of application
1. connect suction pipe
2. connect hose
3. open the power switch to connect battery power
4. press start button(the green button on controller panel)
5. waiting and the machine will work automatically
2. connect hose
3. open the power switch to connect battery power
4. press start button(the green button on controller panel)
5. waiting and the machine will work automatically
Points for attention
1. the sealing O-ring should be smeared by butter before used, or it will be broken soon
2. make sure every joint is sealed well before start the engine
3. make sure the fuel, oil and coolant is enough in the engine
4. check if the power circuit is connected w ell
2. make sure every joint is sealed well before start the engine
3. make sure the fuel, oil and coolant is enough in the engine
4. check if the power circuit is connected w ell
Other displays
Exhibition photos
Packaging and shipping
Company display
Secure transaction
1. You can send us an email or message(whatsApp/ wechat) to confirm the ordering details
2. Our minimum order quantity is one set
3.The delivery time is usually 10-15 working days after confirming payment
4.The product warranty period is 2 years (Usually, due to poor manufacturing, the company will replace and repair the product and parts for users free of charge. Product damage caused by human factors is not covered by the warranty)
2. Our minimum order quantity is one set
3.The delivery time is usually 10-15 working days after confirming payment
4.The product warranty period is 2 years (Usually, due to poor manufacturing, the company will replace and repair the product and parts for users free of charge. Product damage caused by human factors is not covered by the warranty)
