High Efficiency Liquid and Solid Separation Lammella type plate clarifier equipment for industrial water clarifier

High Efficiency Liquid and Solid Separation Lammella type plate clarifier equipment for industrial water clarifier

FOB Reference Price: Get Latest Price

≥1 Sets

US $12000

≥5 Sets

US $9000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 800 kg

Flow rate:: 3-100(m3/h)

Housing material:: 304,316L,CS etc.

Quick Details

Place of Origin:: Sichuan, China

Brand Name:: ECO

Material:: steel

Weight (KG):: 800 kg

Flow rate:: 3-100(m3/h)

Housing material:: 304,316L,CS etc.

Product Description

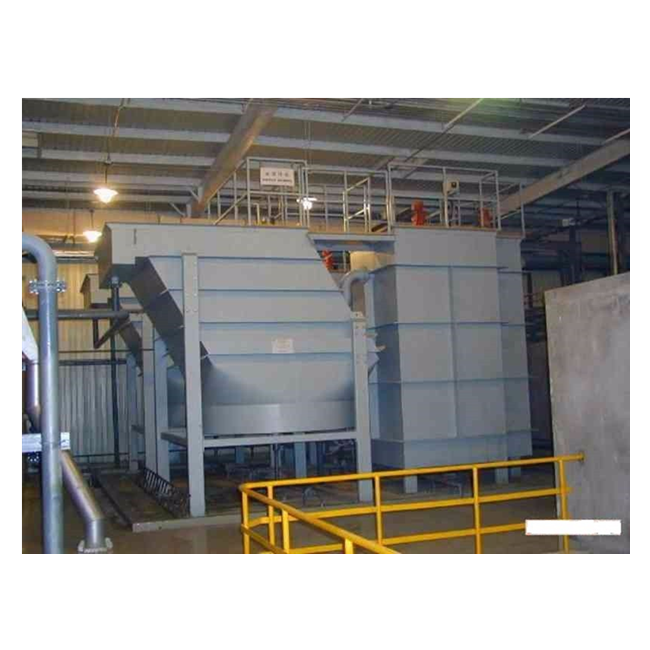

Lamella Clarifier inclined plate sedimentation tank can effectively separate solids in liquid, create a good laminate flow
environment, and achieve better sedimentation effects.

Outstanding advantages:
1. Small area: lengthen the inclined plate to 1.5m, improve the separation efficiency of the settler, and save 1.5~2 times the area;
2. Uniform water distribution: the equal resistance water distribution and supernatant are directly collected to ensure the
balance of the water distribution of each group of inclined plates;
3. Good hydraulic conditions: no hydraulic dead angles and whirlpools;
4. The inclined plate is not blocked: the inclined angle of the inclined plate is 60 degrees, the distance between the plates is 8~10cm, and the backwash pipe is set in the inclined plate area;
5. Rugged and durable: 6mm rigid PVC is used as the separation sheet, modular block embedded, high strength and easy to wash and maintain;
6. Convenient transportation: the total height of the equipment does not exceed 3m, and it can be transported to the destination by standard containers;

working principle:

The working principle of the Lameira inclined plate sedimentation tank is based on the shallow tank theory, and
the sedimentation efficiency of the sedimentation tank is only related to the sedimentation area. In the inclined plate
sedimentation tank, the sedimentation area is the sum of the horizontal projection areas of all inclined plates. The practice of this theory reduces the floor space of the inclined plate sedimentation tank by 90% compared with the traditional sedimentation tank, which doubles the sedimentation efficiency.

Production Application

Widely used in industrial and municipal including the following items：

electroplating wastewater

papermaking wastewater

industrial production wastewater

pre-filtrationtreatment

filtered effluent and backwash water

river water purification

sludge concentration, etc.

Specification

Data/Model	ECO5	ECO10	ECO20	ECO30	ECO40	ECO50	ECO60	ECO80	ECO-100
Capacity （m3/h）	5	10	20	30	40	50	60	80	100
Motor power（kw）	None			0.55
Scraper speed（m/min）	None			2.26	2.1	2.3	2.5	2.55	2.64	2.82
Qty of inclined plate (Pcs.)	10	15	38	46	50	56	58	60	64
Equal settle area（㎡）	6.36	14.83	22.8	33.12	42	49.7	60.03	72	83.2
L（mm）	2400	3000	3750	4050	4340	4525	4725	4975	5175
W（mm）	1340	1740	2220	2520	2820	3090	3190	3290	3490
H（mm）	3050	3200	4650	4650	4700	4900	5100	5330	5330
Water inlet diameter	DN80	DN100	DN125			DN150					DN200
Water outlet diameter	DN80	DN100	DN125			DN150					DN200
Sludge outlet diameter	DN150			DN200
