Quick Details
-
Product name:
-
25 30 35 40 micro farad capacitor
-
AC capacitor Climate type:
-
40/70/21 or 40/85/21
-
AC capacitor Capacitance tolerance:
-
±5%
-
AC capacitor Security level:
-
P2/P1
-
operating life:
-
10000h (Class B), 3000h (Class C)
-
AC capacitor filling:
-
Castor Oil
-
can:
-
aluminum can
-
Factory:
-
Anhui Safe Electronics Co., Ltd.
-
Application of capacitor:
-
Single-phase motor,Air conditioner, Refrigerator,Compressor and so on
-
Capacitance:
-
1MFD~120MFD
-
Tolerance:
-
+/-5%
-
Rated Voltage:
-
200VAC~660VAC
-
Operating Temperature:
-
-40°C~+85°C
-
Description:
-
Capacitor
-
Voltage - Rated:
-
200VAC~660VAC
-
Temperature Coefficient:
-
40/70/21 or 40/85/21
-
Application:
-
AC Motor, Air conditioner, Compressor
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
CSF/OEM /SaiFu
-
Model Number:
-
CBB65 capacitors
-
Product name:
-
25 30 35 40 micro farad capacitor
-
AC capacitor Climate type:
-
40/70/21 or 40/85/21
-
AC capacitor Capacitance tolerance:
-
±5%
-
AC capacitor Security level:
-
P2/P1
-
operating life:
-
10000h (Class B), 3000h (Class C)
-
AC capacitor filling:
-
Castor Oil
-
can:
-
aluminum can
-
Factory:
-
Anhui Safe Electronics Co., Ltd.
-
Application of capacitor:
-
Single-phase motor,Air conditioner, Refrigerator,Compressor and so on
-
Capacitance:
-
1MFD~120MFD
-
Tolerance:
-
+/-5%
-
Rated Voltage:
-
200VAC~660VAC
-
Operating Temperature:
-
-40°C~+85°C
-
Description:
-
Capacitor
-
Voltage - Rated:
-
200VAC~660VAC
-
Temperature Coefficient:
-
40/70/21 or 40/85/21
-
Application:
-
AC Motor, Air conditioner, Compressor

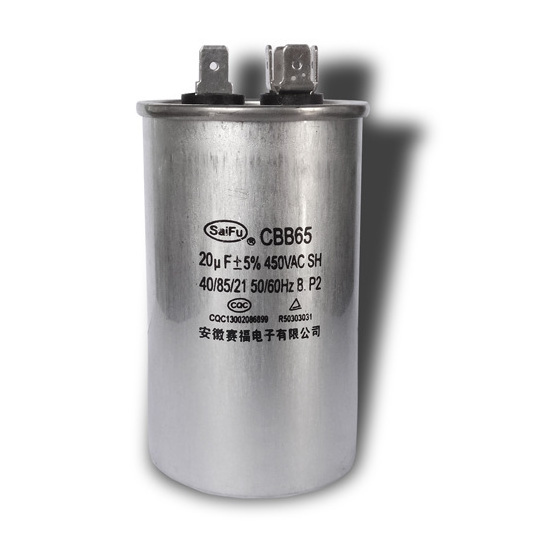

25 / 30 / 35 / 40 micro farad capacitor
Application
Applied to the starting and better working of sing-phase motor in 50Hz(60Hz) frequency AC power system.
Specification
| ac capacitor item s | normial value |
| capacitance | 3UF~120UF |
| voltage | 200VAC~660VAC |
| Operating temperature | -40 °C ~+70 °C /85 °C |
| I.R | 3000s (MΩ·U F ) |
| Dielectric dissipation factor | tg δ≤0.002 (50Hz~100Hz) |
| standard |
GB/T 3667-2008 IEC60252 |
| Anticipated operating life |
10000h(Class B) 3000h(Class C) |
| Security level | P2/P1 |
| apacitance tolerance | ±5% |
Application requirements
Altitude
:
≤2000m
Residual voltage while loading: less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage.
Permissible maximum current: less than 1.3 times of rated current.
Other product specifications(if you need, you can contact me)
|
Rated voltage ( VAC ) |
Nominal capacitance ( μF ) |
Size ( mm ) |
|
|
D |
H |
||
|
200,250,370,400,440, 450,600,700,1200 |
3,4,5,7.5,10,12.5,15,17,20,22.5, 25,30,35,40,45,50,55,60,70,80,100, 25+5, 30+5, 35+5, 50+5, 60+5, 70+5, 80+5… |
40,45,50,55, 60,63.5, 52*32,71*45 |
60,65,70,75,80,85,90, 95,100,105,110,115, 120,125,135,138 |
