1.
Tent with ABS wall
are suitable for high-end exhibition venues.
2.The ABS hard wall tent is very strong and the structure is very stable.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
The peach shape tents aircraft tent Curve roof tent TFS hanger tent
-
Application:
-
wedding, party, event, ceremony hall and so on
-
Surface treat method:
-
Surface oxidation process
-
Fabric:
-
PVC,PVDF,PVF
-
Service Life:
-
More than 20 years
-
Tent roof fabric:
-
850g/sqm, 750g/sqm, 650g/sqm
-
Main frame:
-
Aluminum Alloy 6061T6
-
Wind load:
-
80km/h-100km/h
-
Warranty:
-
1 years
-
Fixing Solution:
-
ground anchor, expandable bolt, weight plate, etc.
Quick Details
-
Brand Name:
-
Gaoshan
-
Place of Origin:
-
Liaoning, China
-
Model Number:
-
EXT0006
-
Product name:
-
The peach shape tents aircraft tent Curve roof tent TFS hanger tent
-
Application:
-
wedding, party, event, ceremony hall and so on
-
Surface treat method:
-
Surface oxidation process
-
Fabric:
-
PVC,PVDF,PVF
-
Service Life:
-
More than 20 years
-
Tent roof fabric:
-
850g/sqm, 750g/sqm, 650g/sqm
-
Main frame:
-
Aluminum Alloy 6061T6
-
Wind load:
-
80km/h-100km/h
-
Warranty:
-
1 years
-
Fixing Solution:
-
ground anchor, expandable bolt, weight plate, etc.
Product Description

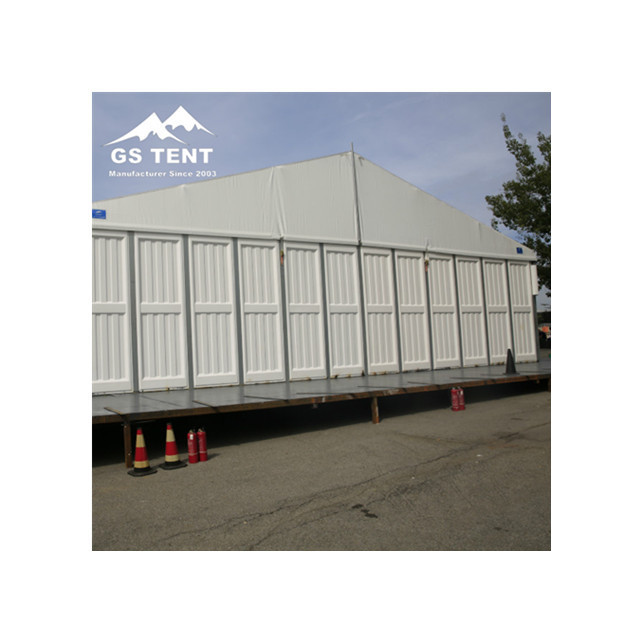

ABS hard wall exhibition Marquee tent
|
Main Profile
|
Material: Hard pressed extruded aluminium 6061/T6
Features: Stainless |
|
Cover
|
Material: Double PVC-coated polyester textile, 750g-900g/m²
Features: Waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant |
|
Eave Connection
|
Hot-dip Galvanized twin steel plate
|
|
Wind Loading
|
100km/hour
|
|
Clear Span Tent
|
|
|
|
|
|
|||||
|
Items
|
Span
|
Eave high
|
Bay Distance
|
Main Profile(mm)
|
Max Wind Load
|
|||||
|
1
|
6m
|
2.8m
|
3m
|
48*84*2.7mm
|
120km/h
|
|||||
|
2
|
7m
|
2.8m
|
3m
|
48*84*2.7mm
|
|
|||||
|
3
|
8m
|
2.8m
|
3m
|
48*84*2.7mm
|
|
|||||
|
4
|
9m
|
2.8m
|
3m
|
48*84*2.7mm
|
|
|||||
|
5
|
10m
|
2.8m
|
3m
|
48*84*2.7mm
|
|
|||||
|
6
|
10m
|
4.0m
|
5m
|
120*150*3.0mm
|
|
|||||
|
7
|
12m
|
4.0m
|
5m
|
120*150*3.0mm
|
|
|||||
|
8
|
15m
|
4.0m
|
5m
|
120*150*3.0mm
|
|
|||||
|
9
|
18m
|
4.0m
|
5m
|
112*203*4.5mm
|
|
|||||
|
10
|
20m
|
4.0m
|
5m
|
112*203*4.5mm
|
|
|||||
|
11
|
21m
|
4.0m
|
5m
|
112*203*4.5mm
|
|
|||||
|
12
|
25m
|
4,5,6m
|
5m
|
112*203*4.5mm
|
|
|||||
|
13
|
30m
|
4-6m
|
5m
|
120*250*4.0mm
|
|
|||||
|
14
|
40m
|
5.4,6.4m
|
5m
|
120*300*5.0mm
|
|
|||||
|
15
|
50m
|
5.4,6.4m
|
5m
|
120*350*5.0mm
|
|
|||||
|
16
|
60m
|
5m,6m
|
5m
|
120(7mm)*400(6mm)
|
|
|||||
|
17
|
70m
|
5m,6m
|
5m
|
120(13.6mm)*430(10mm)
|
|
|||||
|
Customized size is available
|
|
|
|
|
|
|||||
Company information
Certifications
Exhibition
Feedback
Logistics
FAQ
Q: Are you a factory or trade company?
We are factory and supply factory price to our agent and customers directly.
Q: Can you print our logos on event tent for sale?
Yes.Customized logos can be printed on the tent fabric.
Q: Is your tent strong and stable enough? How about the wind loading?
Yes.The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6),so our tent structure is safe and strong enough to resist wind up to 100 km/hr.
Q: Does your tent be able to installed repeatedly? What is the life span?
Sure, our tents can be assembled and dismantled easily
and repeatedly with small transportation size.
The lifespan of aluminium framework can reach 15-20 years, and 5-8 years for PVC fabrics
depending on different conditions of usage.
Q: How long is the warranty period?
Guarantee is one year. During the warranty period, we shall repair or replace the damaged part
accordingly because of any damage due to quality problem.
accordingly because of any damage due to quality problem.
