- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GAMICOS
-
Model Number:
-
GLTV3
-
Length range:
-
100 to1,000mm for standard (can be customized)
-
Current range:
-
0 to 20mA or 4 to 20mA
-
Resistance range:
-
0 to 190Ω
-
Supply voltages:
-
10 to 32V
-
Voltage range:
-
0.5 to 4.5V or 0 to 5V
-
Option:
-
high/low alarm
-
Rated current for alarm switch:
-
500mA
-
Operating temperatures:
-
- 40 to 85°C
-
Resolution range:
-
10 to 40mm
-
Product:
-
GLTV3 Resistance Liquid level sensor in water fuel tank measurement
-
Certification:
-
CE, RoHs
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
GAMICOS
-
Model Number:
-
GLTV3
-
Length range:
-
100 to1,000mm for standard (can be customized)
-
Current range:
-
0 to 20mA or 4 to 20mA
-
Resistance range:
-
0 to 190Ω
-
Supply voltages:
-
10 to 32V
-
Voltage range:
-
0.5 to 4.5V or 0 to 5V
-
Option:
-
high/low alarm
-
Rated current for alarm switch:
-
500mA
-
Operating temperatures:
-
- 40 to 85°C
-
Resolution range:
-
10 to 40mm
-
Product:
-
GLTV3 Resistance Liquid level sensor in water fuel tank measurement
-
Certification:
-
CE, RoHs

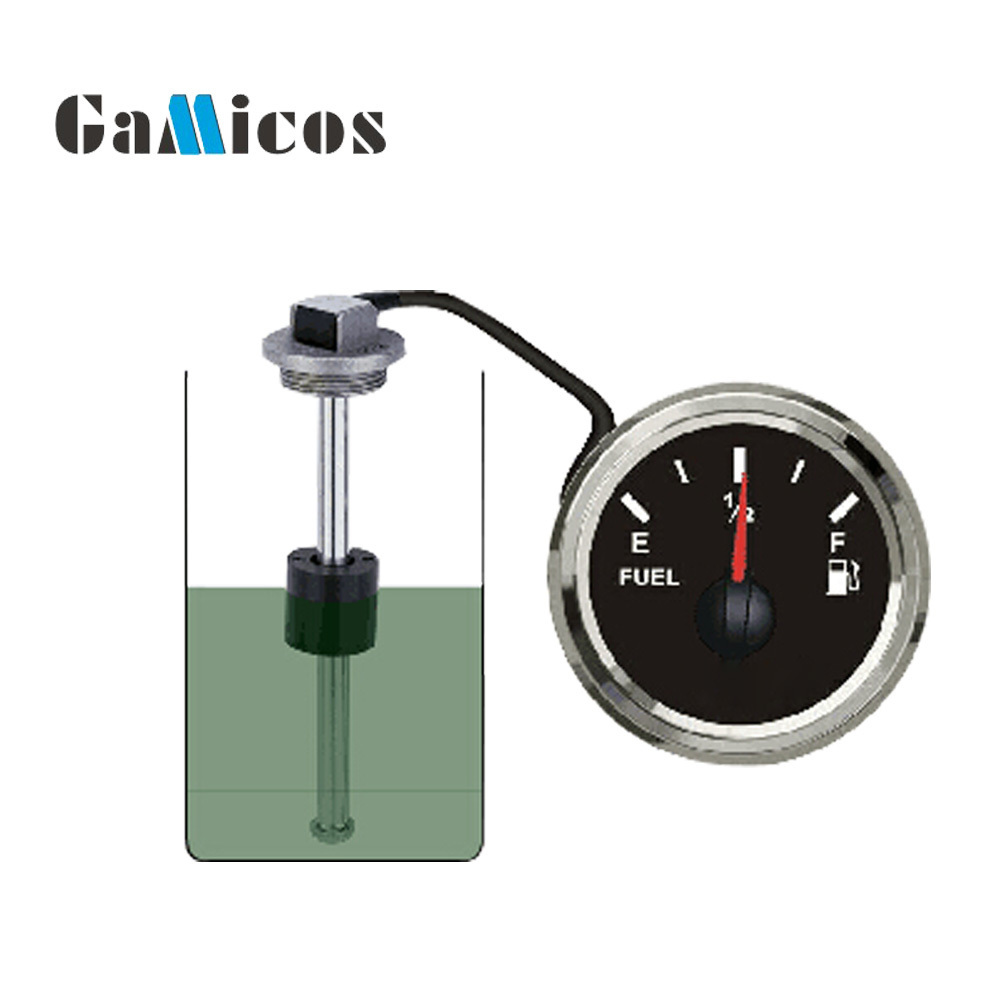

GLTV3 Reed switch type with resistance output Liquid level sensor in water fuel tank measurement
|
|
|
|
Introduction of level sensor
•GLTV3level sensor is widely used in fuel, water, kerosene, chemical tanks and suitable for truck, generators/gen set, bus and marine field.
•With the electromagnetic induction principle, it can output signal stably and continuously.
Specifications
| Level range | 100~2000mm (OEM can be optional) |
| Resolution range | 10~40mm |
| Medium | Gasoline , Diesel fuel , Water , Polluted water , Drinking water , Alcohol , Chemicals, etc |
| Power supply | 10-32v |
| Rated power | 125mW |
| Rated current for alarm switch | 500mA |
| Operating temp . range | -40~ + 85℃ |
| Wire | PVC material(PA corrugated pipe cover is optional) |
| Probe material |
Stainless steel 304 Stainless steel 316L |
| Floats material |
Plastic(for oil medium) Stainless steel 304(For drinking water, chemicals, etc.) Stainless steel 316L ( For sewage ) |
|
Mounting |
BSP 1 1/2",BSP1 1/4" thread twist-in;NPT thread twist-in. flanges :38*2.6mm O-ring /43*3.5mm O-ring.(OEM) |
Application
Install case
Dimmension
Odering Guide
Package&Shipping
- Standard export package: each unit has individual box and all boxes are packed in standard packages
- As the clients requirement
- Service standards: we are committed to providing a high quality,and responsive services to all clients
- The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
- Excellent package: each unit has individual box and all boxes are packed in standard packages.
- OEM available
