- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YILI
-
Weight:
-
1200
-
Dimension(L*W*H):
-
520*237*134
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO 9001
Quick Details
-
Warranty:
-
1YEAS
-
Use:
-
loosening the land
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YILI
-
Weight:
-
1200
-
Dimension(L*W*H):
-
520*237*134
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO 9001
Disc Harrow (offset disc harrow)
1. Product Introduction
The machine is suitable for pulverizing and loosening clods after plowing and for planning the land before
sowing on cultivated land, it can make soil and fertilizer mix up, and clean away the stump of plants.
With the reasonable structure, the machine is durable in service, easy to be operated and maintained, etc.
1BQ-3.4 Light-duty off set disc harrow with 42 discs. it is suitable for pulverizing and loosening the land
before sowing on cultivated land, it can make soil and fertilizer mix up and clear away the stump of plants..
2.Main Specifications
|
Model |
1BZ-2.0 |
1BZ-2.2 |
1BZ-2.5 |
1BZ-3.0 |
1BZ-3.4 |
1BZ-4.0 |
1BZ-5.3 |
|
(cm) L*W*H
|
520*237*134 |
520*257*134 |
532*201*134 |
541*303*134 |
550*354*134 |
610*380*134 |
650*400*134 |
|
(m)
|
2.0 |
2.2 |
2.5 |
3.0 |
3.4 |
4.0 |
5.3 |
|
(mm)
|
180~200 |
180~200 |
180~200 |
180~200 |
180~200 |
180~200 |
180~200 |
|
|
18 |
20 |
24 |
28 |
32 |
36 |
48 |
|
(mm)
|
660(650)
|
660(650)
|
660(650)
|
660(650)
|
660(650)
|
660(650)
|
660(650)
|
|
(kg)
|
1200 |
1250 |
1350 |
1450 |
1550 |
1950 |
2530 |
|
(kw)
|
51 |
59.6 |
59.6~74.6 |
73.5 |
88.2 |
88.2 |
101.5 |
|
Linkage |
(Trailed) |
||||||

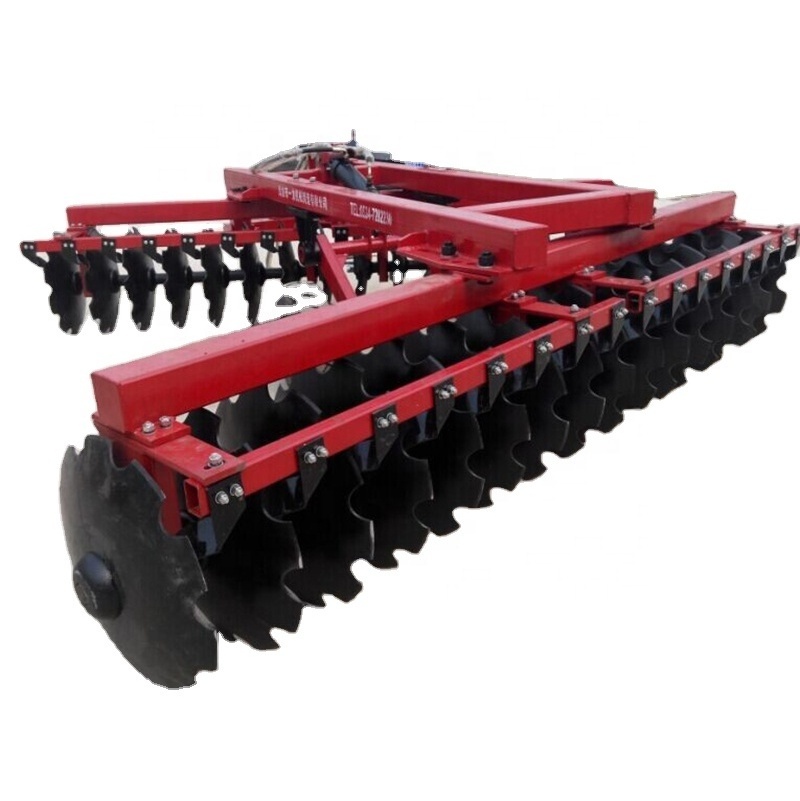

3. Product Picture
