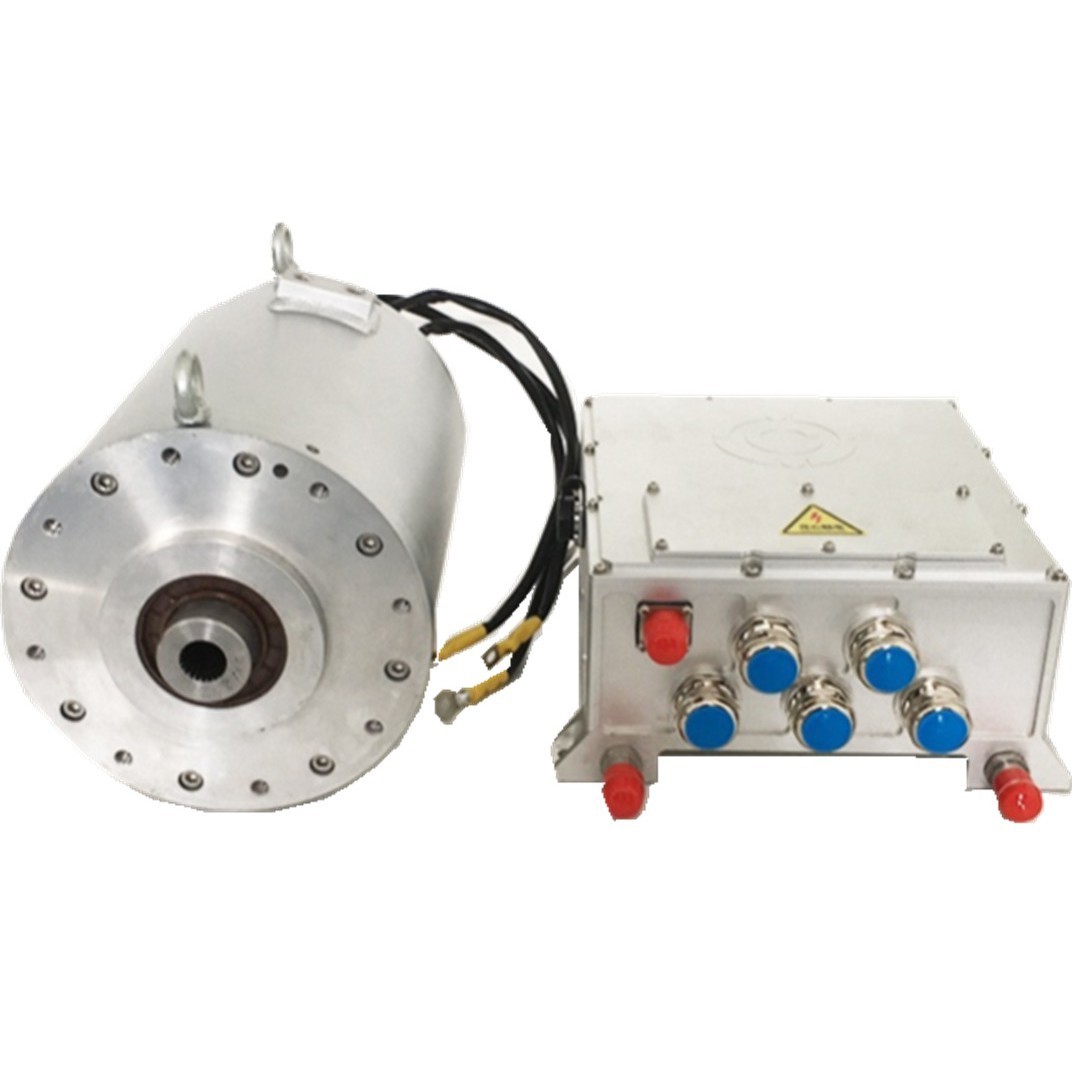

superior quality peak 30kw PMSM ev motor electric car conversion kits motors and motor controllers

superior quality peak 30kw PMSM ev motor electric car conversion kits motors and motor controllers

FOB Reference Price: Get Latest Price

≥2 Sets

US $3400

≥5 Sets

US $3200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: WFIT

Model Number:: TZ-225-X-G-GA05

Frequency:: 0-300HZ

Nominal power:: 30kw

peak power(KW):: 60kw

Nominal speed (rpm):: 3000

peak speed (rpm):: 6000

peak torque(Nm):: 240

Nominal torque(Nm):: 96

effenciency:: 95%

WEIGHT:: 60kg

Size:: demand

Product Name:: 30kw motor and motor controller

Quick Details

AC Voltage:: 220-450V

Warranty:: 1year

Place of Origin:: Henan, China

Brand Name:: WFIT

Model Number:: TZ-225-X-G-GA05

Frequency:: 0-300HZ

Nominal power:: 30kw

peak power(KW):: 60kw

Nominal speed (rpm):: 3000

peak speed (rpm):: 6000

peak torque(Nm):: 240

Nominal torque(Nm):: 96

effenciency:: 95%

WEIGHT:: 60kg

Size:: demand

Product Name:: 30kw motor and motor controller

Product Details

1.Excellent performance in high speed.

2.High overload capacity to meet the requirement of short time speed up and the maximum gradeability.

3.High effeciency ,low loss, could process the branking energy recovery.

Motor	Motor controller
1.Continous/peak power(kw):30/60	1.DC battery voltage(v):336
2.Continous/peak torque(Nm):96/240	2.AC voltage(v):200-450
3.Continous/peak speed（rpm):3000/6000	3.Rated power(kw):55
4.DC bus range(v):220-450	4.Rated output current(A):210
5.Rated/peak current(A):110/275	5.Max output current (A):350
6.Peak efficiency:95%	6.Frequency(Hz):0-300
7.Cooling:water 50%+50%glycol	7.Cooling:water cooling
8.Diemension:Φ225*L300

Best-selling products

Remark：All motors can be adjusted within a certain range, we can provide 30KW-500KW motors, the scope of the motor: passenger cars,light trucks, heavy trucks, buses, boats. If our existing products cannot meet your needs, we can also provide you with customized services.
