- Product Details
- {{item.text}}
Quick Details
-
Feature 1:
-
EDID
-
Feature 3:
-
additional power supply
-
Input:
-
4 HDMI
-
Output:
-
1 HDMI
-
Material:
-
Aluminum shell
Quick Details
-
Model Number:
-
HSW0401A1S
-
Product name:
-

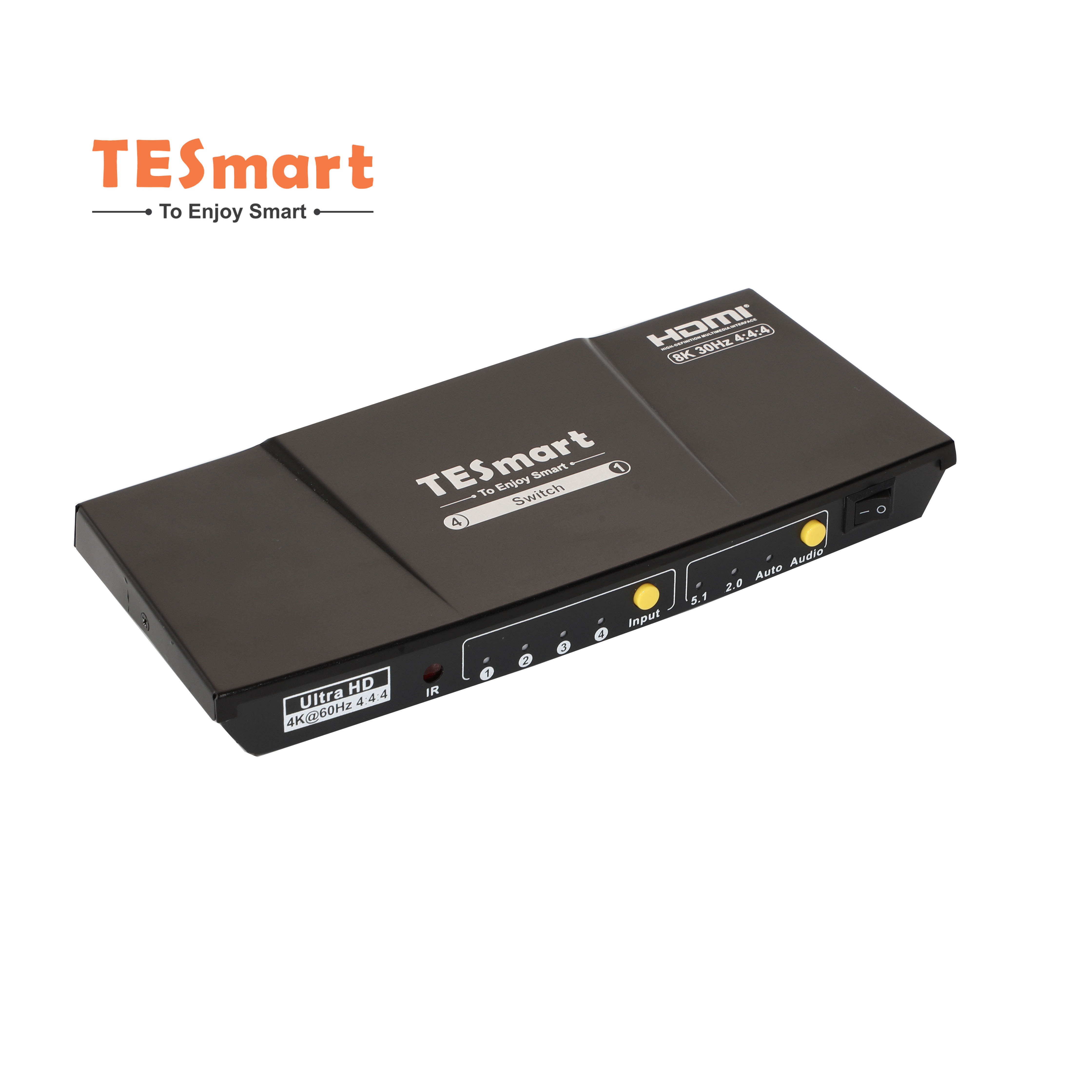

4X1 HDMI Switcher
-
Resolution:
-
8K@30Hz
-
Feature 1:
-
EDID
-
Feature 3:
-
additional power supply
-
Input:
-
4 HDMI
-
Output:
-
1 HDMI
-
Material:
-
Aluminum shell
Products Description
HDMI 2.1 Switch can greatly facilitate your management of audio and video devices. If you have a home theater or entertainment setup with multiple sources and display devices like game consoles, streaming boxes, and set-top boxes, it can be hard to manage in terms of cables and switching devices. Our
HDMI Switch can help you add more inputs to your TV or AV receiver if you have too many devices to manage. With this HDMI 2.1 Switch, you can also get original digital audio through S/PDIF optical audio port.
In addition, this HDMI Switch is also compliant with HDMI 2.1 standard and supports resolution up to 8K@30Hz (7680x4320@30Hz), and also supports 4K@120Hz (3840x2160@120Hz), offering you the most superior video quality and vivid visuals
HDMI Switch can help you add more inputs to your TV or AV receiver if you have too many devices to manage. With this HDMI 2.1 Switch, you can also get original digital audio through S/PDIF optical audio port.
In addition, this HDMI Switch is also compliant with HDMI 2.1 standard and supports resolution up to 8K@30Hz (7680x4320@30Hz), and also supports 4K@120Hz (3840x2160@120Hz), offering you the most superior video quality and vivid visuals
Features:
●
With 4 HDMI inputs and 1 HDMI output.
● Support 2.0/5.1/Bypass modes of audio output
● Support resolution up to 4K@60Hz 4:4:4
●
Compliant with HDCP 2.2
● Support 32bit color depth
● Support Dolby TrueHD, DTS-HD Master Audio, Dolby Digital and AC-3 audio transmission
● Easy to switch input source with infrared remote control
● Support HDR 10
● Support auto input detection
●
All ports support CEC function(The connected HDMI devices also should supports CEC)
Specification
|
HSW0401A1S
|
4x1 HDMI 2.1 Switch 8K@30Hz 4:4:4
|
|
||
|
Technical
|
|
|
||
|
HDCP compliance
|
2.3
|
|
||
|
Data rate
|
48 Gbps
|
|
||
|
Max. resolution
|
7680x4320@30Hz 4:4:4
|
|
||
|
Audio support
|
Surround sound(up to 7.1ch) or stereo digital audio
|
|
||
|
ESD protection
|
Human body model - ±8KV (Air-gap discharge)
|
|
||
|
Input
|
4* HDMI Type A
|
|
||
|
Output
|
1* HDMI Type A, 1* AUX(for L/R audio out), 1*S/PDIF audio out
|
|
||
|
Mechanical
|
|
|
||
|
Chasing material
|
Aluminum alloy
|
|
||
|
Power supply
|
DC 5V 2A
|
|
||
|
Operating/storage temperature
|
0 to 70 degree/-40 to 85 degree
|
|
||
|
Operating humidity
|
10 to 90% RH
|
|
||
|
Product
|
Dimension
|
197(L) x 81 (W) x 21 (H) mm
|
||
|
|
Weight
|
252.7g
|
||
|
Item
|
Dimension
|
245 (L) x 135 (W) x 90 (H) mm
|
||
|
|
Weight
|
558g
|
||
|
Carton
|
Dimension
|
515 (L) x 285 (W) x 470 (H) mm
|
||
|
|
Quantity
|
20pcs
|
||
|
|
Total Weight
|
12.01kg
|
||
