Quick Details
-
Item Name:
-
Auto Car Gauge
-
Other Name:
-
For Turbo Boost gauge
-
Another Name:
-
Boost Bar Gauge
-
Diameter:
-
52mm
-
Range:
-
-30In.hg~35 Psi
-
Power:
-
DC(10-15V) 12V Professional
-
Fitment:
-
Universal 12V
-
Material Type:
-
ABS+Plastic
-
Backlight:
-
LED super white display
-
Color:
-
Smoke Lens
Quick Details
-
OE NO.:
-
Gauge
-
Place of Origin:
-
Zhejiang, China
-
Warranty:
-
1 Years
-
Item Name:
-
Auto Car Gauge
-
Other Name:
-
For Turbo Boost gauge
-
Another Name:
-
Boost Bar Gauge
-
Diameter:
-
52mm
-
Range:
-
-30In.hg~35 Psi
-
Power:
-
DC(10-15V) 12V Professional
-
Fitment:
-
Universal 12V
-
Material Type:
-
ABS+Plastic
-
Backlight:
-
LED super white display
-
Color:
-
Smoke Lens
Product Description

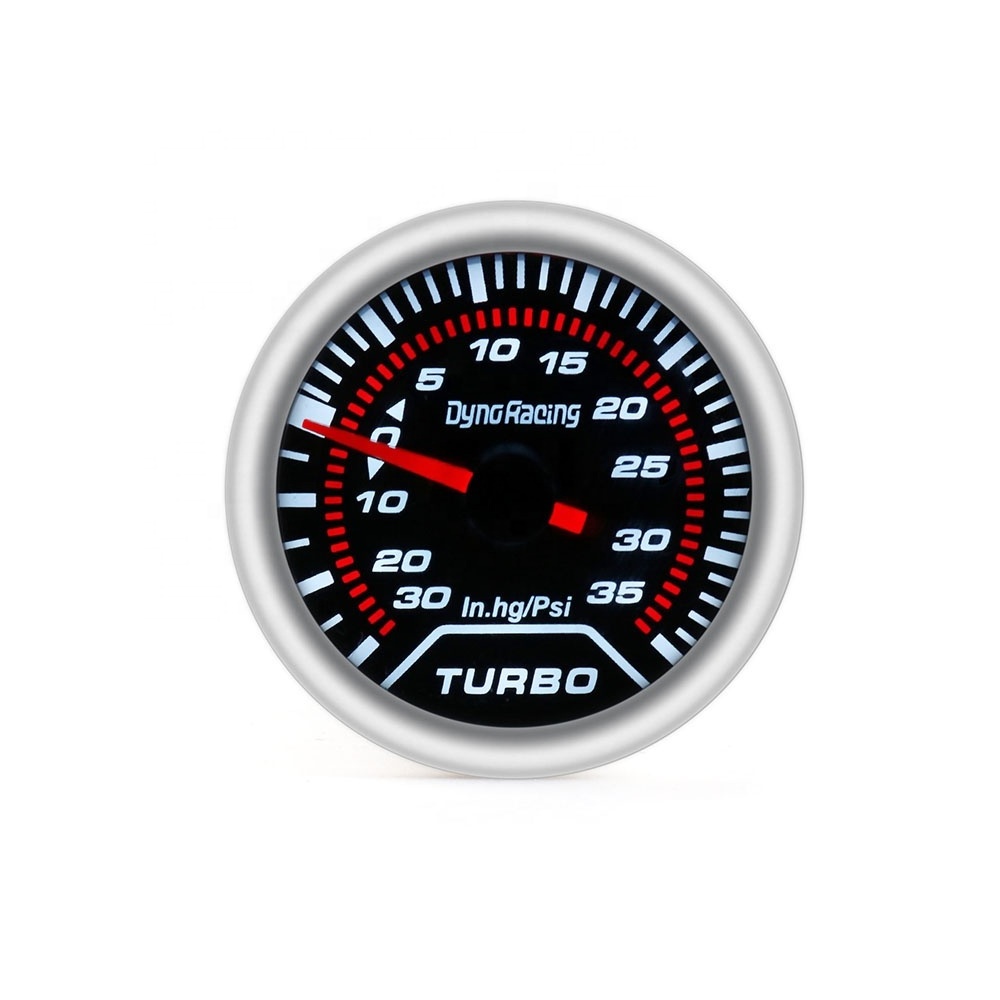

Boost Car LED Motor Gauge
Power:DC(10-15V) 12V Professional.
Red LED illuminated needles.
LED super white display.
Diameter:2"/52mm.
Power:DC(10-15V) 12V Professional.
Red LED illuminated needles.
LED super white display.
Diameter:2"/52mm.
Material:Plastic Cover
Range:-30In.hg-35PSI
Package Includes:
1 x For Turbo Boost Gauge
1 x Nylon Pressure Line(1.84m) With One Adaptor
1 x English Manual
Fitment:
All 12 Volts car
How to installation:
1.Gauge May Be Mounted In 2"/52mm Dia holes Or In Auto Gauge Custom Mounted Panels .Secure Gauge With Mounting Clamps Supplied.
2.Drill 3/8" Dia .Holes And Install Rubber Grommets Where Pressure Or Vacuum Line Passes Through Sheet Mental Such As Firewall.
3.Attach Nylon Pressure Line To Fitting On Back Of Gauge Using Adaptor ,Ferrule ,And Compression nut .Route Line Through Grommets To Engine Compartment .Connect Line To Pressure port On Engine By Using 1/8" Adaptor Ferrule And Compression Nut For Turbo And Prossure Gauge Or 1/8" Adaptor And Fitting For Vacuum Gauge.
2.Drill 3/8" Dia .Holes And Install Rubber Grommets Where Pressure Or Vacuum Line Passes Through Sheet Mental Such As Firewall.
3.Attach Nylon Pressure Line To Fitting On Back Of Gauge Using Adaptor ,Ferrule ,And Compression nut .Route Line Through Grommets To Engine Compartment .Connect Line To Pressure port On Engine By Using 1/8" Adaptor Ferrule And Compression Nut For Turbo And Prossure Gauge Or 1/8" Adaptor And Fitting For Vacuum Gauge.
4.Start Engine And Thoroughly Check Installation For Leaks.
Twist In Light Socket Assembly And Connect One Wire(Yellow) To Dash Lighting Circut Or Other 12V Power Source And The Other Wire(Black) To A Good Ground.
Twist In Light Socket Assembly And Connect One Wire(Yellow) To Dash Lighting Circut Or Other 12V Power Source And The Other Wire(Black) To A Good Ground.
