Quick Details
-
Power supply:
-
DC12V
-
Door lock type:
-
Fail Secure power off close door
-
Material:
-
304 stainless steel
-
Holding force:
-
2000Kg Holding Force
-
Weight:
-
1.0kg
-
Time delay:
-
0,3,6,9sec
-
Bolt size:
-
16(length)*16(diameter)(mm)
-
Suitable door type:
-
Heavy door;Wooden door; Metal door
-
Certification:
-
CE,FCC,RoHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DWECCRF
-
Product Name:
-
Electronic bolt
-
Power supply:
-
DC12V
-
Door lock type:
-
Fail Secure power off close door
-
Material:
-
304 stainless steel
-
Holding force:
-
2000Kg Holding Force
-
Weight:
-
1.0kg
-
Time delay:
-
0,3,6,9sec
-
Bolt size:
-
16(length)*16(diameter)(mm)
-
Suitable door type:
-
Heavy door;Wooden door; Metal door
-
Certification:
-
CE,FCC,RoHS
2000kg holding force DC12V Fail Secure door lock electric bolt with sinal output

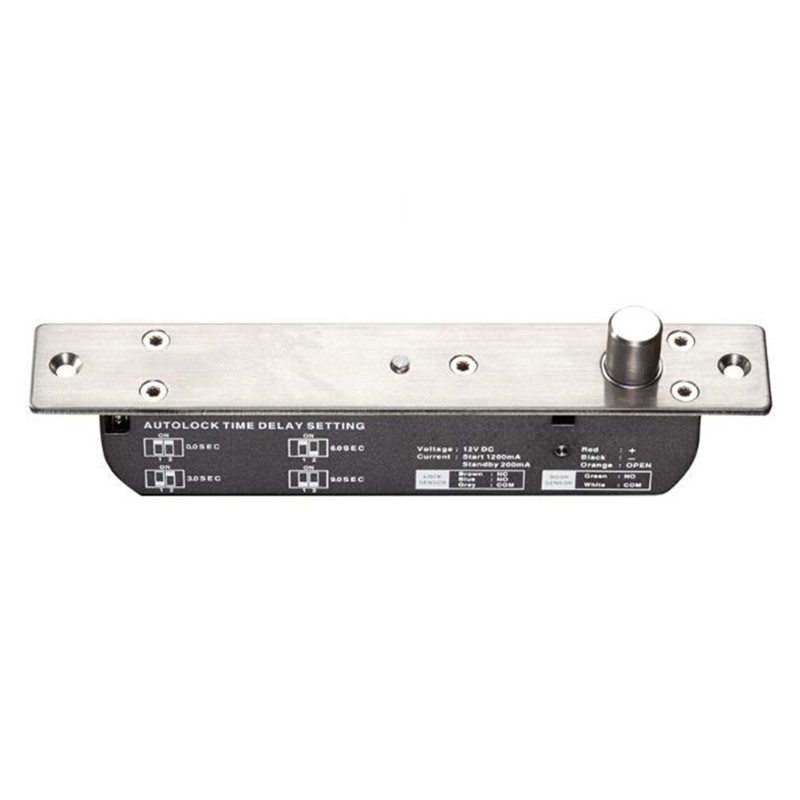

Fail Secure electric bolt with signal DW-700B
DW-700B is an all-metal construction Fail Secure electric bolt .with 304 stainless steel solid bolt and 2000kg holding force. It can be worked at the temperature of 60 ℃ or -40 ℃ based on the all-metal linkage parts. With the multiple designs of durable magnetic valve, special photoelectric control system, ultra-low temperature and power consumption design, anti-intrusion and smart circuit.
|
Product Parameter |
Parameter Description |
|
Feature |
Fail Secure |
|
Face Plate |
225Lx34WX38H(mm) |
|
Strike |
100Lx25Wx3W(mm) |
|
Bolt |
16(length)*16(diameter)(mm) |
|
Voltage |
DC12V + 10% |
|
Start Current |
1200mA |
|
Standby Current |
200mA |
|
Solid Bolt |
polishing housing, 2000Kg Holding Force |
|
Suitable For |
Heavy door ;Wooden door; Metal door |
|
LED |
Light on indicates locked, light off indicates unlocked |
|
Autolock Time Delay |
0,3,6,9sec |
|
Signal Output |
Lock signal:NO/NC/COM
|
|
Surface Temp |
Low Temperature |
|
Detection Distance |
Within 8mm |
|
Special Designed |
Tested to 500000 cycles |
|
Material |
304 stainless steel, wire draw finishing |
|
Weight |
1.0kg |
