Quick Details
-
Model Number:
-
Hydraulic cylinders Piston/ Rod Seal
-
Color:
-
Black,White or any color
-
Application:
-
Pump ,hydraulic Piston ,gate Valves/Slab Valve/Wellhead ,Flow line
-
Standard or Nonstandard:
-
Standard Size
-
Hardness:
-
95Shore A
-
Temperature:
-
High or Low
-
Pressure:
-
High
Quick Details
-
Size:
-
Standard or OEM
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SI PAI TUO
-
Model Number:
-
Hydraulic cylinders Piston/ Rod Seal
-
Color:
-
Black,White or any color
-
Application:
-
Pump ,hydraulic Piston ,gate Valves/Slab Valve/Wellhead ,Flow line
-
Standard or Nonstandard:
-
Standard Size
-
Hardness:
-
95Shore A
-
Temperature:
-
High or Low
-
Pressure:
-
High

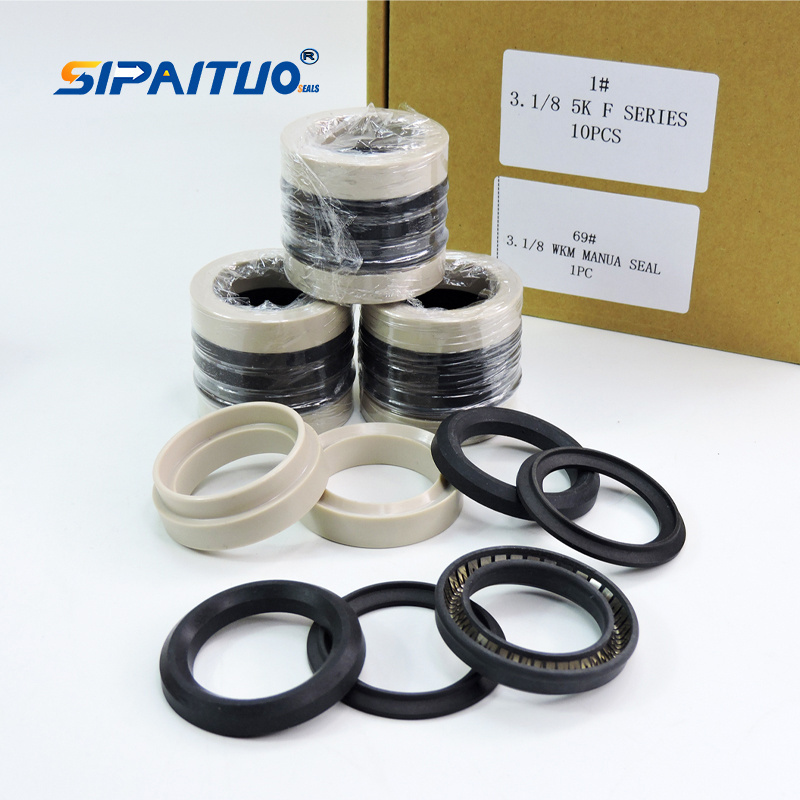

Products Description
PTFE
POM UPE PEEK
elastomeric spring energized seals For Valve
SIPAITUO SEALS COMPANY manufactures PTFE and elastomeric spring energized seals and sealing systems. Spring Energized Seals can be used in static, reciprocating and slow to medium rotary applications. Unli`ke many other seals where you must size your seal application around standard size seals, Spring energized seal can be manufactured to your product. While standard size seals are something we make everyday, we make seals in any size needed. Used as piston, rod, or face seals, the SPT(SI PAI TUO) spring energized seal is engineered to meet your exact specifications and design intent.
|
Material
|
PTFE POM UPE PEEK
|
|
Model Number
|
customized
|
|
|
Pharmaceuticals
Liquid Chromatography Food Processing Space Exploration Tire Production HydraulicsVacuum Service Oilfield Exploration and Production etc |
|
Temperature
|
-50℃~250℃
|
|
Pressure
|
≤60Mpa
|
Direction for use
This Vee packing set ,
U-packing
PTFE+FKM/FPM/NBR/HNBR
Filled and the
Spring loaded Filled PTFE Stem Packing
are Used for Cameron FC gate valves and FL gate valves
|
Name
|
Material
|
Size
|
|
U-packing
|
PTFE+FKM/FPM/NBR/HNBR Filled
|
1-3/4 x 1 U-Packing;
2-3/8 x 1-5/8 U-Packing, 3-1/2 x 2-3/4 U-Packing; 2 x 1-1/4 U-Packing; 2-3/4 x 2 U-Packing; 2 x 3.125 x 1.13; 2-1/4 x 1-1/2 U-Packing; 3 x 2 U-Packing; 2.75x3.50x0.815 |
|
Stem packing
|
The Spring loaded Filled PTFE Stem Packing,
Back up ring : PEEK ;
The spring seal: PTFE TFM |
1/2*2-1/4;
2-3/4*2; 3-1/2*2-3/4 |
