Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
China
-
Brand Name:
-
KOEN
-
Weight:
-
130 KG
Quick Details
-
Machinery Capacity:
-
100BPH
-
Packaging Material:
-
Plastic, Metal, Glass
-
Filling Material:
-
Beer, PAINT
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
China
-
Brand Name:
-
KOEN
-
Weight:
-
130 KG
Products Description

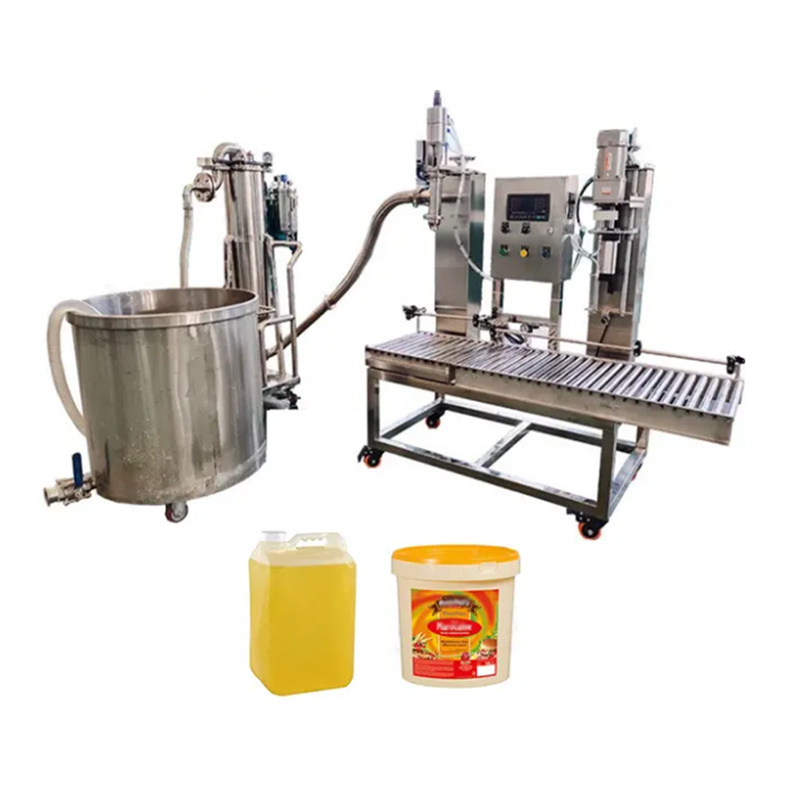

Automatic Bottle Filling Machine
Product introduction:
Acid and alkali resistant filling machine is an explosion-proof filling machine suitable for petrochemical, food, military and other enterprises working environment. It adopts liquid level filling method and is suitable for a variety of liquid materials. The unique spray gun device is easy to operate, fast and accurate pouring, and ensures the leakage of residual liquid at the end of filling.
Acid and alkali resistant filling machine is an explosion-proof filling machine suitable for petrochemical, food, military and other enterprises working environment. It adopts liquid level filling method and is suitable for a variety of liquid materials. The unique spray gun device is easy to operate, fast and accurate pouring, and ensures the leakage of residual liquid at the end of filling.
Feature:
It is manufactured according to QB / t2501-2000 gravity type automatic loading weighing instrument; The contact material part is made of PP and PTFE stainless steel, with strong corrosion resistance;
■ the system is made of Japan 701, Omron relay and other high-end electrical accessories; The filling gun is designed for quick disassembly and assembly by hand, which is convenient for maintenance;
■ the additional pneumatic ball valve at the front section of the filling gun is automatically closed when it is not filled to
prevent material leakage; The sealing system is made of polytetrafluoroethylene, which is solvent resistant, acid and alkali
resistant, and has long service life;
■ the platform and drum of the scale are made of stainless steel with good corrosion resistance;
■ the filling gun adopts the plug-in filling method to avoid the material flying shallow on the barrel and affecting the outer
packaging; The system adopts two-stage automatic filling mode of large and small materials to improve the accuracy;
after the single barrel filling value reaches, the filling gun will automatically lift up and wait for the next start-up;
Technical Parameter:
■ maximum weighing capacity: 40kg
■ Minimum sensitivity: 0.005kg
■Filling error: ± 0.1% F.S
■ filling speed: About 120-150 B / h (depending on feed flow rate)
■ power supply: AC220 / 50 Hz
■ air source: 0.6MPa
■ service temperature: - 10 ℃ - 50 ℃
■ relative humidity: < 95% (non condensing)
■ control mode: 2-gear control (with reflux control)
■ filling method: plug-in, under the liquid level
■ platform size: 400 × 400mm Gun head pipeline: stainless steel and tetrafluoroethylene
■Pipeline pressure: (0.2-0.6) MPa (related to material properties).
■ material interface: Dn40 threaded joint Gas source interface: the user provides G1 / 2 internal thread for quick
coupling connection
■ foundation conditions: for horizontal and solid concrete ground, the concrete thickness should be greater
than 10cm.
It is manufactured according to QB / t2501-2000 gravity type automatic loading weighing instrument; The contact material part is made of PP and PTFE stainless steel, with strong corrosion resistance;
■ the system is made of Japan 701, Omron relay and other high-end electrical accessories; The filling gun is designed for quick disassembly and assembly by hand, which is convenient for maintenance;
■ the additional pneumatic ball valve at the front section of the filling gun is automatically closed when it is not filled to
prevent material leakage; The sealing system is made of polytetrafluoroethylene, which is solvent resistant, acid and alkali
resistant, and has long service life;
■ the platform and drum of the scale are made of stainless steel with good corrosion resistance;
■ the filling gun adopts the plug-in filling method to avoid the material flying shallow on the barrel and affecting the outer
packaging; The system adopts two-stage automatic filling mode of large and small materials to improve the accuracy;
after the single barrel filling value reaches, the filling gun will automatically lift up and wait for the next start-up;
Technical Parameter:
■ maximum weighing capacity: 40kg
■ Minimum sensitivity: 0.005kg
■Filling error: ± 0.1% F.S
■ filling speed: About 120-150 B / h (depending on feed flow rate)
■ power supply: AC220 / 50 Hz
■ air source: 0.6MPa
■ service temperature: - 10 ℃ - 50 ℃
■ relative humidity: < 95% (non condensing)
■ control mode: 2-gear control (with reflux control)
■ filling method: plug-in, under the liquid level
■ platform size: 400 × 400mm Gun head pipeline: stainless steel and tetrafluoroethylene
■Pipeline pressure: (0.2-0.6) MPa (related to material properties).
■ material interface: Dn40 threaded joint Gas source interface: the user provides G1 / 2 internal thread for quick
coupling connection
■ foundation conditions: for horizontal and solid concrete ground, the concrete thickness should be greater
than 10cm.
Details
Recommend Products
Packing
FAQ
Q1: Where is your factory? How can I visit there?
A1: Our factory location is Shanghai, China.If want to visit our company , you can fly to Shanghai Pudong Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
A1: Our factory location is Shanghai, China.If want to visit our company , you can fly to Shanghai Pudong Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
