Quick Details
-
Production Capacity:
-
40-100bags/min
-
Weight (KG):
-
300
-
Voltage:
-
AC220V/50-60Hz/3.0kw
-
Place of Origin:
-
China
-
Brand Name:
-
CHIC
-
Dimension(L*W*H):
-
L1400*W1000*H1200 mm, 1400*1000*1200 mm
-
Product name:
-
Automatic vertical packing machine
-
Making bag size:
-
(L)60-250mm(W)50-150mm
-
Packing Speed:
-
40-100 bags/min
-
Power Supply:
-
220V,50/60Hz,3.0 Kw
-
Compressed air consumption:
-
6-8 kg/m2
-
Air consumption:
-
0.3m3/min
-
Weight:
-
300Kg
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing, counting
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Pouch, sachet packaging,pouch packaging
-
Packaging Material:
-
Plastic, Paper, rolling film, laminated film and heat sealing laminated paper roll
-
Production Capacity:
-
40-100bags/min
-
Weight (KG):
-
300
-
Voltage:
-
AC220V/50-60Hz/3.0kw
-
Place of Origin:
-
China
-
Brand Name:
-
CHIC
-
Dimension(L*W*H):
-
L1400*W1000*H1200 mm, 1400*1000*1200 mm
-
Product name:
-
Automatic vertical packing machine
-
Making bag size:
-
(L)60-250mm(W)50-150mm
-
Packing Speed:
-
40-100 bags/min
-
Power Supply:
-
220V,50/60Hz,3.0 Kw
-
Compressed air consumption:
-
6-8 kg/m2
-
Air consumption:
-
0.3m3/min
-
Weight:
-
300Kg

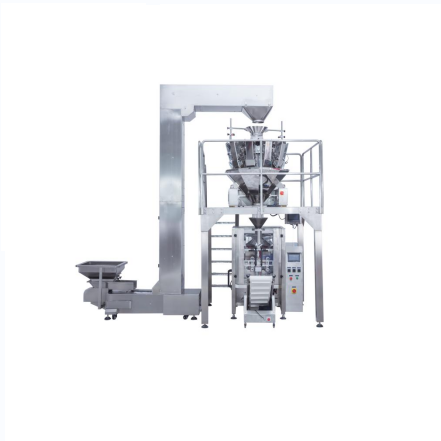

320 Vertical packaging machine
Features
New design with perfect fashion, more reasonable structure, more advanced technology.
Longitudinal sealing is used by four sides with hot sealing type, bag is more beautiful and shape stabilization.
Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.
Standard positioning with imported servo film transporting system and mark sensor, Super excellent capability for complete machine, perfect packaging.
With auto warning protection function to minimize loss.
With double transporting devices, angle fold devices and retainer devices, function more perfect.
Various kinds of bag, it could provide the hang hole bag, link bag, etc.
Automatic correct function, save time, labor, and film, the operation more intelligent.
Adopt gas-pressure shaft clamping film structure. Film setting be more easy and quick.
Sample:
Parameters
|
Mode |
KL-320 |
|
Making bag size |
(L)60-250mm(W)50-150mm |
|
Packing Speed |
40-100 bags/min |
|
Power Supply |
220V,50/60Hz,3.0 Kw |
|
Compressed air consumption |
6-8 kg/m2 |
|
Air consumption |
0.3m3/min |
|
Weight |
300Kg |
|
Dimension |
L1400*W1000*H1200 mm |
Purpose:
The machine is suitable for automatic packaging of various kinds of leavened food, candies, peanuts, seeds and such materials in grain or piece as well as powder like milk powder, washing powder, starch, etc.
Pack material:
Paper/plastic,plastic/plastic,plastic/aluminum/plastic,paper/aluminum/plastic tea paper.
Packaging:
Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.
Installation:
1- We provide videos and instruction manual to show the process of installation.
2- We provide training for installation for free in our factory.
3- We can send technician to buyer's factory to install the machine and provide training service,but customer affords the engineer’s visa fee, double-flight fee, hotel fee and 180USD per day salary.
After Sales Service:
1- One year quality warranty and free lifetime technique support.
2- Free spare parts would be supplied if machine broken within warranty period.
3- After the warranty period, the spare parts for replacement are offered based on certain charge.
