- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Fire Hose
-
Type:
-
Hose
-
Lining:
-
Synthetic rubber,PVC,TPU
-
Jacket:
-
Polyester Filament Yarn,Polyester Staple Fiber
-
Diameter:
-
19-400mm
-
Length:
-
10m-30m(customizable)
-
Working Pressure:
-
0.8 - 4 Mpa(8Bar~40Bar)
-
Color:
-
Customers' Requirements
-
Package:
-
Plastic Bag Packing+Carton or according to your requirements
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ANGGUANG, ANGGUANG
-
Model Number:
-
AG
-
Product name:
-
Fire Hose
-
Type:
-
Hose
-
Lining:
-
Synthetic rubber,PVC,TPU
-
Jacket:
-
Polyester Filament Yarn,Polyester Staple Fiber
-
Diameter:
-
19-400mm
-
Length:
-
10m-30m(customizable)
-
Working Pressure:
-
0.8 - 4 Mpa(8Bar~40Bar)
-
Color:
-
Customers' Requirements
-
Package:
-
Plastic Bag Packing+Carton or according to your requirements
Product Model

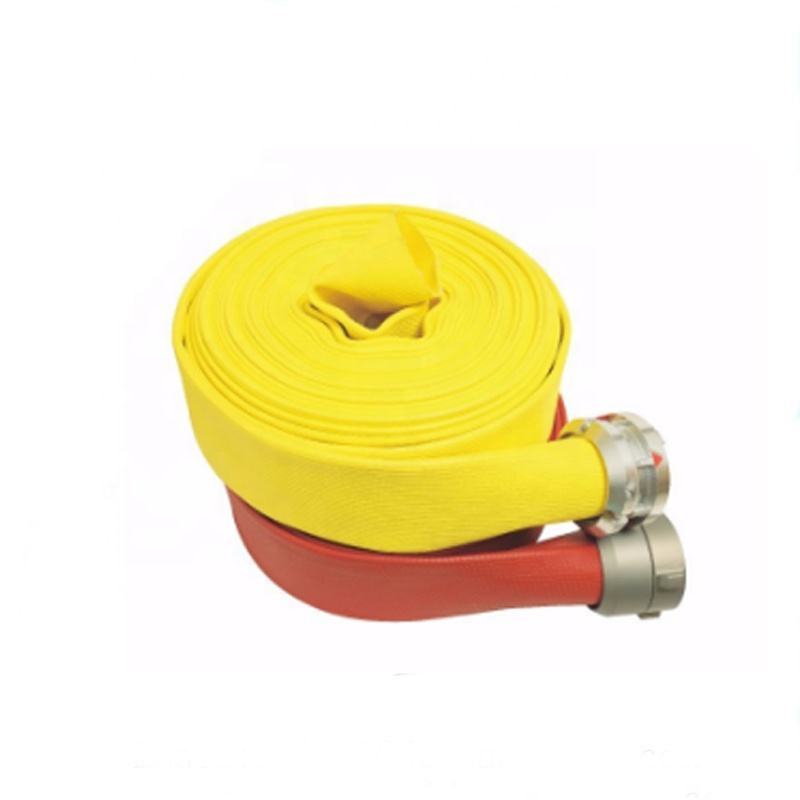

Fire Hose.
Fire hose for water delivery and fire fighting use.It consists of woven jacket and inner lining which are adhered closely.PVC lining fire hose is light and easy to maintain.
Agricultural Hose.
Agricultural hose consists of woven jacket and inner lining which are adhered closely.It is light and easy to maintain and suitable for irrigation.
Related Products
|
Item
|
Fire Hose
|
|
|
|
|||
|
Place of Origin
|
Fujian, China
|
|
|
|
|||
|
Brand Name
|
ANGGUANG
|
|
|
|
|||
|
Lining
|
PVC / TPU / Rubber
|
|
|
|
|||
|
Jacket
|
Polyester Filament Yarn / Polyester Staple Fiber
|
|
|
|
|||
|
Certification
|
CCCF / ISO9001
|
|
|
|
|||
|
Length
|
5-30m (Customizable)
|
|
|
|
|||
|
Diameter
|
19 - 400mm (3/4 - 16 inch)
|
|
|
|
|||
|
Working pressure
|
0.6-4 mpa (6-40 bar)
|
|
|
|
|||
|
Applicable Medium
|
Clean water / Foam mixture liquid
|
|
|
|
|||
|
Color
|
White or customize according to your requirement.
|
|
|
|
|||
|
Packing
|
Pack in PP bag or according to your requirement.
|
|
|
|
|||
|
Transportation
|
By Sea From XiaMen Port
|
|
|
|
|||
Fire hose :
Fire Hose for water delivery and firefighting use. It consists of woven jacket and inner lining which are adhered closely. PVC
lining fire hose is light and easy to maintain.
Jacket:
100polyster high tenacity yarn.
polyester filament or polyester
staple;
Twill weave or plain weave.
Lining:
The lining is made of PVC;synthetic rubber or TPU.
Resistant to seawater and anti-aging.
The lining guarantees a smooth surface and low friction loss.
Characteristics:
Produced with very low twist.good abrasion resistance and long service life ,external reinforce to seawater and chemical products.
Low friction loss ageing and weather resistant.
Lightweight and flexible,kink restant.
|
Diameter（Inch/mm）
|
Nominal
Size（mm）
|
Tolerance
|
Working Pressure
(MPa/Bar) |
Testing Pressure (MPa/Bar)
|
Bursting Pressure
(MPa/Bar) |
Length
(M/Feet) |
|
3/4" 19
|
19
|
±2.0
|
0.8/8
1.0/1
1.3/13
1.6/16
2.0/20
2.5/25 4.0/40
|
1.2/12
1.5/15
2.0/20
2.4/24
3.0/30
3.75/37.5
6.0/60
|
2.4/24
3.0/30
3.9/39
4.8/48
6.0/60
7.5/75
12.0/12
|
5 17
10 33
15 50
20 66
25 82
30 99
|
|
1" 25
|
25
|
|
|
|
|
|
|
1-1/2" 40
|
28
|
|
|
|
|
|
|
2" 50
|
51
|
|
|
|
|
|
|
2-1/2" 65
|
63.5
|
|
|
|
|
|
|
3" 80
|
76
|
|
|
|
|
|
|
4" 100
|
102
|
|
|
|
|
|
|
5" 125
|
127
|
|
|
|
|
|
|
6" 150
|
152
|
|
|
|
|
|
|
8" 200
|
203
|
|
|
|
|
|
|
10" 250
|
254
|
±3.0
|
|
|
|
|
|
12" 300
|
305
|
|
|
|
|
|
|
16" 400
|
407
|
|
|
|
|
|
Features:
1)The lining of fire hose is PVC/Rubber. And the jacket of firefighting hose is woven by high intensity of polyester filament or
polyester short fiber.
2)There are special adhesive (solid or liquid) between the jacket and the lining. The canvas hose is soft and highly polished,
reduce the flow resistance.
3) The fire hose is high pressure resistance, low temperature resistance, anti-corrosion, aging resistance, wear-resisting.
4) Different color lining of fire hose is available: blue, black, transparent etc. or according to your requirement.
5) Different length of firehose is available: 10m - 30m or according to your requirement.
6)The fire hose is packed by poly bags or cartons.
7)The quality of fire hose is guaranteed by CCCF, ISO9001:2008
8)The hose is used in firefighting or agriculture.
polyester short fiber.
2)There are special adhesive (solid or liquid) between the jacket and the lining. The canvas hose is soft and highly polished,
reduce the flow resistance.
3) The fire hose is high pressure resistance, low temperature resistance, anti-corrosion, aging resistance, wear-resisting.
4) Different color lining of fire hose is available: blue, black, transparent etc. or according to your requirement.
5) Different length of firehose is available: 10m - 30m or according to your requirement.
6)The fire hose is packed by poly bags or cartons.
7)The quality of fire hose is guaranteed by CCCF, ISO9001:2008
8)The hose is used in firefighting or agriculture.
We specialize in fire hose, agricultural hose, fire coupling and nozzle, fire hydrant, fire cabinet, fire extinguishers and other
firefighting equipment. Please send inquiries to us should you be interested.
firefighting equipment. Please send inquiries to us should you be interested.
Company informations
Fujian Quanzhou Guangmin Technology Industry And Trade Co., Ltd.
was established in 1993. Our company has 12 engineers, 33 technicians and 500
other employees and occupies a building area of 30,000 square meters. With our staff's efforts, our annual turnover is now more
than USD20,000,000.
other employees and occupies a building area of 30,000 square meters. With our staff's efforts, our annual turnover is now more
than USD20,000,000.
Work shop
Sample Room
Exhibition
Packaging & Shipping
Contact us:
Name: Nisa Liu
Name: Nisa Liu
Email: nisaliu@guangminfire.cn
Phone/Whatsapp: +86-13512303807
Wechat: Nisa-6
Phone/Whatsapp: +86-13512303807
Wechat: Nisa-6
FAQ
1. Are you a factory or trading company?
We are one of the largest fire hose manufacturer in Asia, we been specilize in fire hose and fire-fighting equipment for more than
30 years. We warmly welcome clients from worldwide to visit our factory and cooperate with us. We can offer OEM & ODM service.
2. Can you produce goods with special specification ?
Our company focuses on customized products.First of all, we need to know the specification in details, and then we need to check
with our technology department. We will give customers satisfying reply as soon as possible.
3. How long is the delivery time?
30-45 days after the advance payment.
4. What's your advantage?
Independent R&D team, professional production and sales team, great production capacity sustainable supply. Use the best material
and production process. Low defective rate.
We are one of the largest fire hose manufacturer in Asia, we been specilize in fire hose and fire-fighting equipment for more than
30 years. We warmly welcome clients from worldwide to visit our factory and cooperate with us. We can offer OEM & ODM service.
2. Can you produce goods with special specification ?
Our company focuses on customized products.First of all, we need to know the specification in details, and then we need to check
with our technology department. We will give customers satisfying reply as soon as possible.
3. How long is the delivery time?
30-45 days after the advance payment.
4. What's your advantage?
Independent R&D team, professional production and sales team, great production capacity sustainable supply. Use the best material
and production process. Low defective rate.
