Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2206mm*1160mm*1233mm
-
Warranty:
-
One Year
-
Machine Weight:
-
800 kg
-
Bucket capacity:
-
0.5
-
Product name:
-
mini backhoe loader for sale
-
Color::
-
red, black or any others
-
Bucket weight:
-
480kgs
-
Digging Depth:
-
1750mm
-
Loading Height:
-
1720mm
-
match with tractor power:
-
20-30hp
-
quick attachment:
-
fork, hay baller and so on
-
Transport Height:
-
1840mm
-
Bucket Rotation:
-
180°
-
Bucket width:
-
300mm
Quick Details
-
Engine Brand:
-
YUNNEI
-
Power:
-
15.7 kw
-
Brand Name:
-
WD
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2206mm*1160mm*1233mm
-
Warranty:
-
One Year
-
Machine Weight:
-
800 kg
-
Bucket capacity:
-
0.5
-
Product name:
-
mini backhoe loader for sale
-
Color::
-
red, black or any others
-
Bucket weight:
-
480kgs
-
Digging Depth:
-
1750mm
-
Loading Height:
-
1720mm
-
match with tractor power:
-
20-30hp
-
quick attachment:
-
fork, hay baller and so on
-
Transport Height:
-
1840mm
-
Bucket Rotation:
-
180°
-
Bucket width:
-
300mm

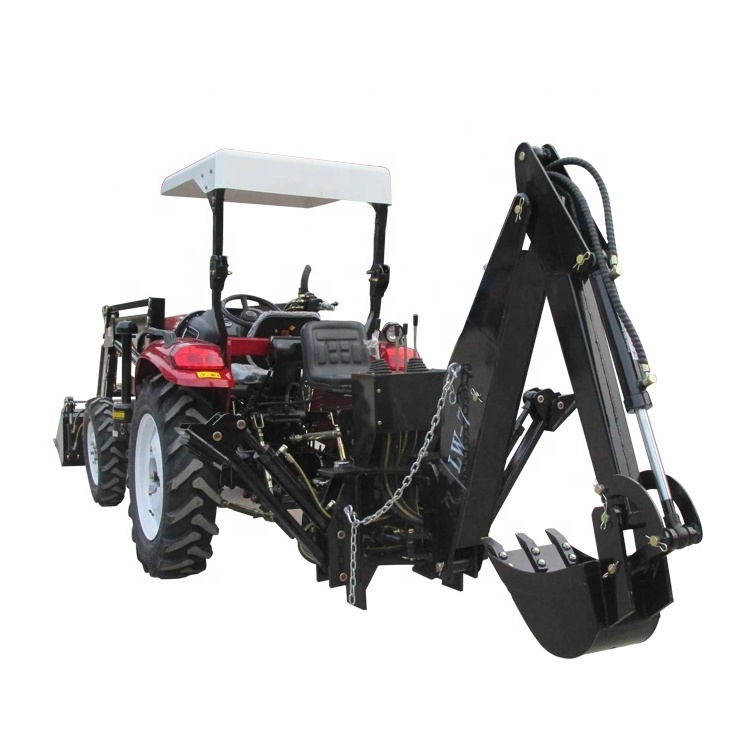

1. T he LW series tractor backhoe is designed
for tractors ranging from 25-150HP, 2WD and 4WD.
2. I t is used ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roades.
3.It is connected with tractor three-point suspension.
Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting.
4.The tractor backhoe is powered by tractor PTO.
Hydraulic transmission is used.The power is
transferred through oil gear pump.The hydraulic elements
are standardized, convenient for opration and service.
5.All are with self hydraulic pump, oil tank, increasing
speed gear box, handed control valve, and luxury spring
seat and safety belt.
6. To better accomplish different kinds of work, bucket of differerent size s can be selected and mounted on it.
| Model | LW-6 | LW-7 | LW-8 | LW-9 | |
| Specification | Metric | Metric | Metric | Metric | |
| Tractor HP | 25-30HP | 30-45HP | 45-60HP | 60-80HP | |
| 3-point Linkage | Cat-1 | Cat-1 | CAT-1&2 | CAT-2 | |
| Structure Weight(kg) | 480 | 500 | 580 | 620 | |
| A | Digging Depth(two foot flat bottom)/mm | 1750 | 1950 | 2250 | 2550 |
| B | Reach from center line of Swing pivot(mm) | 2600 | 2900 | 3200 | 3600 |
| C | Loading Height(bucket at 60°) /mm | 1720 | 1840 | 1930 | 2210 |
| D | Transport Height(maximum)/mm | 1840 | 2060 | 2130 | 2480 |
| E | Extend Height(mm) | 2870 | 3110 | 3240 | 3590 |
| F | Loading Reach(bucket at 60°)/ mm | 950 | 1180 | 1140 | 1360 |
| G | Transport Overhang(mm) | 1080 | 1110 | 1220 | 1270 |
| H | Undercut(mm) | 730 | 830 | 470 | 520 |
| I | Bucket Rotation(°) | 180° | 180° | 180° | 180° |
| J | Stabilizer Spread(up position)/mm | 1310 | 1310 | 1310 | 1310 |
| K | Stabilizer Spread(down position)/mm | 2100 | 2100 | 2340 | 2340 |
| L | Swing Arc(°) | 180° | 180° | 180° | 180° |
| M | Bucket width(mm) | 300mm | 400mm | 450mm | 500mm |
| N | Bucket cubage(m³) | 0.036 | 0.045 | 0.052 | 0.063 |
DETAILED IMAGES :
