The depth of saw blade can be adjustable. Give you more control when cutting tiles.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
Please contact us
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Forestwest
-
Voltage:
-
230V
-
Dimension(L*W*H):
-
1100*605*560mm
-
Weight:
-
52 kg
-
Motor:
-
230V-50Hz, 1200W
-
Blade Size:
-
230*25.4*2.2mm
-
Table Size:
-
780*390mm
-
Max Cutting Depth:
-
60mm (90°); 48mm (45°)
-
Max Cutting Length:
-
720mm
-
Packing Size:
-
1000*605*560mm
-
Loading Amount (20'/40'):
-
110/240pcs
-
N.W/G.W:
-
52/54Kg
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
1200W
-
Cutting thickness (max):
-
60mm
-
Production Capacity:
-
Please contact us
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Forestwest
-
Voltage:
-
230V
-
Dimension(L*W*H):
-
1100*605*560mm
-
Weight:
-
52 kg
-
Motor:
-
230V-50Hz, 1200W
-
Blade Size:
-
230*25.4*2.2mm
-
Table Size:
-
780*390mm
-
Max Cutting Depth:
-
60mm (90°); 48mm (45°)
-
Max Cutting Length:
-
720mm
-
Packing Size:
-
1000*605*560mm
-
Loading Amount (20'/40'):
-
110/240pcs
-
N.W/G.W:
-
52/54Kg
Product Description

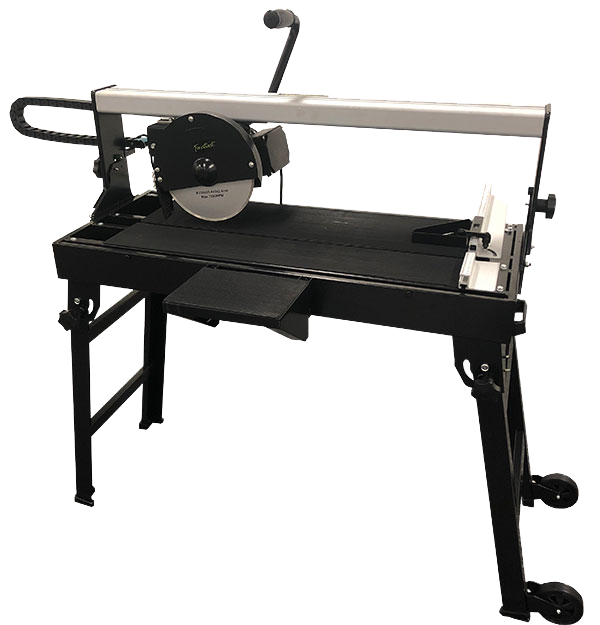

1200W 720mm Wet Tile Saw Foldable Stand
This Table Tile Saw Wet Tile Saw BM688 can cut up to 720mm in length. It is powered by a full enclosed high grade 1200W motor, to power through dense tiles, stronger than most competitors. The blade is a 230mm Diamond Blade with a 25.4mm bore hole, and the blade life is maximized by the Spray Wet-Cutting System, fed by a high-volume pump in the undertray large reservoir. Extra support table that can be mounted onto different positions to support bigger tiles. Extra long measurement enable precision cut for tile bigger than the table itself. The blade and motor is mounted on a ball bearing carriage that ensures smooth and accurate cutting. The rail is adjustable, can be pivoted from 45 to 90 degrees for fast and easy miter cuts.
Features
720mm Wet tile saw 1200W. Professional model with great cutting performance.
Make precise bevel cut up to 45°.
Extra supporting table, can be mounted at different position to support big tile.
Ball bearing guided blade. Straight and accurate for perfect cutting.
High grade 1200W electric motor. Provide suffcient power for hard materials.
Extra long precision measurement for measuring oversie tiles. Quick locking mitre guide for precise mitre cut.
Large water reservior and reliable water pump. Reduce dust and increase vlade life.
Foldable legs with
wheels that can be mounted at two different position.
1) Powerful full enclosed 1200W motor make cutting tiles quickly and easily
2) Ball-bearing guided rail for smooth operation
3) Cut up to 720mm long, 60mm deep at 90 degree
4) Adjustable pivoting rail allows for easy angle positioning from 45 to 90 degrees for fast and consistent miter cuts
5) 230mm continuous rim wet diamond blade
6) Spray wet cutting system with large removable reservoir and high-volume water pump
7) Foldable legs for easy transport (adjustable for uneven surfaces)
Specifications
|
Model
|
BM688
|
|
Motor
|
230V-50Hz, 1200W
|
|
Blade Size
|
230*25.4*2.2mm
|
|
Table Size
|
780*390mm
|
|
Max Cutting Depth
|
60mm (90°); 48mm (45°)
|
|
Max Cutting Length
|
720mm
|
|
Packing Size
|
1100*605*560mm
|
|
N.W/G.W
|
52/54Kg
|
Packing & Delivery
|
Size
|
1100*605*560 mm
|
|
N.W./G.W.
|
52/54 Kg
|
|
Packaging Details
|
Packed in high quality carton, with extra foam for suppor and protection.
|
|
Delivery Time
|
40-50 days after order confirmed or contact us for more accurate time-frame.
|
※The price could be changed according to various factors such as purchase quantity, exchange rate, ports, package and so on. Therefore, the final price is depended on our actual quotation.
※Please contact us to get the quotation, thanks!
