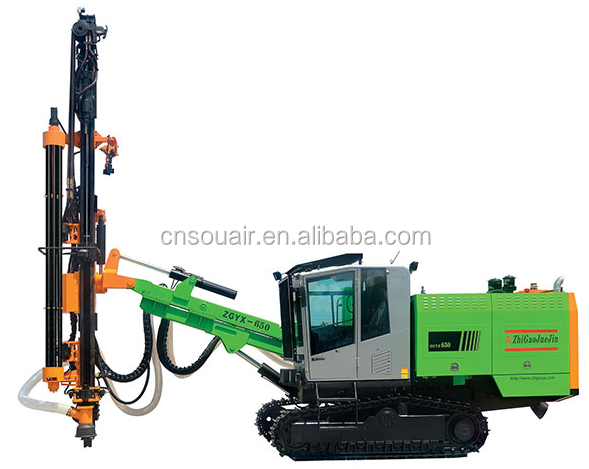

Automatic Top Hammer Surface Rock Drill Rigs
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ZEGA
-
Model Number:
-
ZGYX650/660
-
Warranty:
-
1 year
-
Certification:
-
CE ISO
-
ZGYX650/660:
-
Automatic Top Hammer Surface Rock Drill Rigs
Product Description
ZGYX650/660 Product Introduction
This series of heavy duty automatic top hammer surface blast hole drill rigs developed and manufactured by
Zhejiang
ZEGA Machinery Co., Ltd. with diesel engine, air compressor and anti-jamming hydraulic control
system on board is standard equipped with cabin, automatic drill rod handling system (RHS) , heavy-duty
tramming motor and chassis oscillation mechanism. The smooth drilling system, dual tramming speed and cross terrain adaptability make this series of rigs suitable for any complicated rock drilling applications. These rigs equipped with two stages dust collector is environmental friendly and widely used in various construction and mining applications. High efficiency, energy saving, environment friendly and many safety features also make these rigs highly recommended for green mining and global market.
The Main Features
High Efficiency
The rigs can drill multiple holes with just one time positioning and can cope with any kind of virgin landscapes with its' flexible boom and cross terrain adaptability. The penetration rate is 50% faster than a down the hole rig with hole diameter less than 115 mm within 15 meter depth and with normal and stable rock condition.
Energy Saving
The rigs are equipped with Zega own designed ZY104 hydraulic drifter (Hydraulic pressure up to 23Mpa, percussion power at 20KW). The advantageous functions such as precise boom positioning, automatic rod handling, high drilling speed and fast tramming speed make this rig operation cost per drill meter to be unparalleled competitive
Environmental
awareness
Standard two stage dry type (optional water mist system) dust collector makes this series of rigs environment friendly.
Safety
The track oscillation features make the rig center of gravity more stable while climbing up and down the slopes giving the tracks superior traction. Less equipment and workers are required. The rod CAROUSEL and cab (Rops & Fops ) protect operation personnel from accident.
Specification
|
Model
|
ZGYX
-650
|
ZGYX
-660
|
|
Rock Drill
|
|
|
|
Model
|
ZY-104
|
ZY-104
|
|
Manufacturer
|
ZEGA
|
ZEGA
|
|
Hole Range.
|
76-115 mm
|
76-115 mm
|
|
Rotation Speed
|
0-35 r/min
|
0-35 r/min
|
|
Max. Rotation Torque
|
1460 N.m
|
1460 N.m
|
|
Max. Percussion Frequency
|
60 HZ
|
60 HZ
|
|
Drill
Rod
|
T45
OR
T51x3.66 m
|
T45
OR
T51x3.66m
|
|
Hole Depth
|
25 m
|
25 m
|
|
Max.
Impact
Power
|
20 kw
|
20 kw
|
|
Diesel
Engine
|
|
|
|
Manufacturer
|
Cummins
|
Caterpillar
|
|
Model
|
6CTA8.3-C240
|
C7
|
|
Rated Power
|
179 kw
|
168 kw
|
|
Speed
|
2000 rpm
|
2200 rpm
|
|
Fuel Tank Capacity
|
310 L
|
310 L
|
|
Boom & Feed
|
|
|
|
Boom Angle
|
-20° to
+30°
|
-42° to+73°
|
|
Arm Angle
|
Left
20°
;Right
20°
|
Left
26°
;Right
27°
|
|
Pitch Angle
|
Front
60°
;Behind
85°
|
Front
99°
;Behind
36°
|
|
Swing Angle
|
Left
95°
;Right
15°
|
Left
95°
;Right
15°
|
|
Drifter Travel Length
|
4200 mm
|
4200 mm
|
|
Feed and Lift Capacity
|
22 kn
|
22 kn
|
|
Extension Length
|
1400 mm
|
1400 mm
|
|
Length of Feed Beam
|
7257 mm
|
7257 mm
|
|
Rod Length
|
3660 mm
|
3660 mm
|
|
RHS and numbers of d
rill
s holding
|
Standard •6+1
|
Standard •6+1
|
|
Screw
Air
Compressor
|
|
|
|
Manufacturer
|
ZEGA
|
ZEGA
|
|
Air End Manufacturer
|
Hanbell
|
GHH
|
|
Capacity F.A. D
|
8 m3/min
|
8 m3/min
|
|
Max. Working Pressure
|
10 bar
|
10 bar
|
|
Chassis
|
|
|
|
Max. Climbility
|
25°
|
25°
|
|
Ground Clearance
|
460 mm
|
460 mm
|
|
Track Oscillation
|
±10°
|
±10°
|
|
Max. Trammi
n
g Speed
|
3.5 km/h
|
3.2 km/h
|
|
Max. Traction Force
|
112kn
|
150 kn
|
