Quick Details
-
Voltage:
-
380V,3P,50HZ, 380v 3p 50hz
-
Power:
-
8.8kw
-
Weight:
-
2500kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
Mattress quilting machines
-
Brand:
-
ESUN
-
Machine weight:
-
2500kg
-
Motor power:
-
8.5kw
-
Rotating speed:
-
3200rpm
-
Stitch:
-
2-6mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ESUN
-
Max Sewing Thickness:
-
80mm
-
Voltage:
-
380V,3P,50HZ, 380v 3p 50hz
-
Power:
-
8.8kw
-
Weight:
-
2500kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
Mattress quilting machines
-
Brand:
-
ESUN
-
Machine weight:
-
2500kg
-
Motor power:
-
8.5kw
-
Rotating speed:
-
3200rpm
-
Stitch:
-
2-6mm

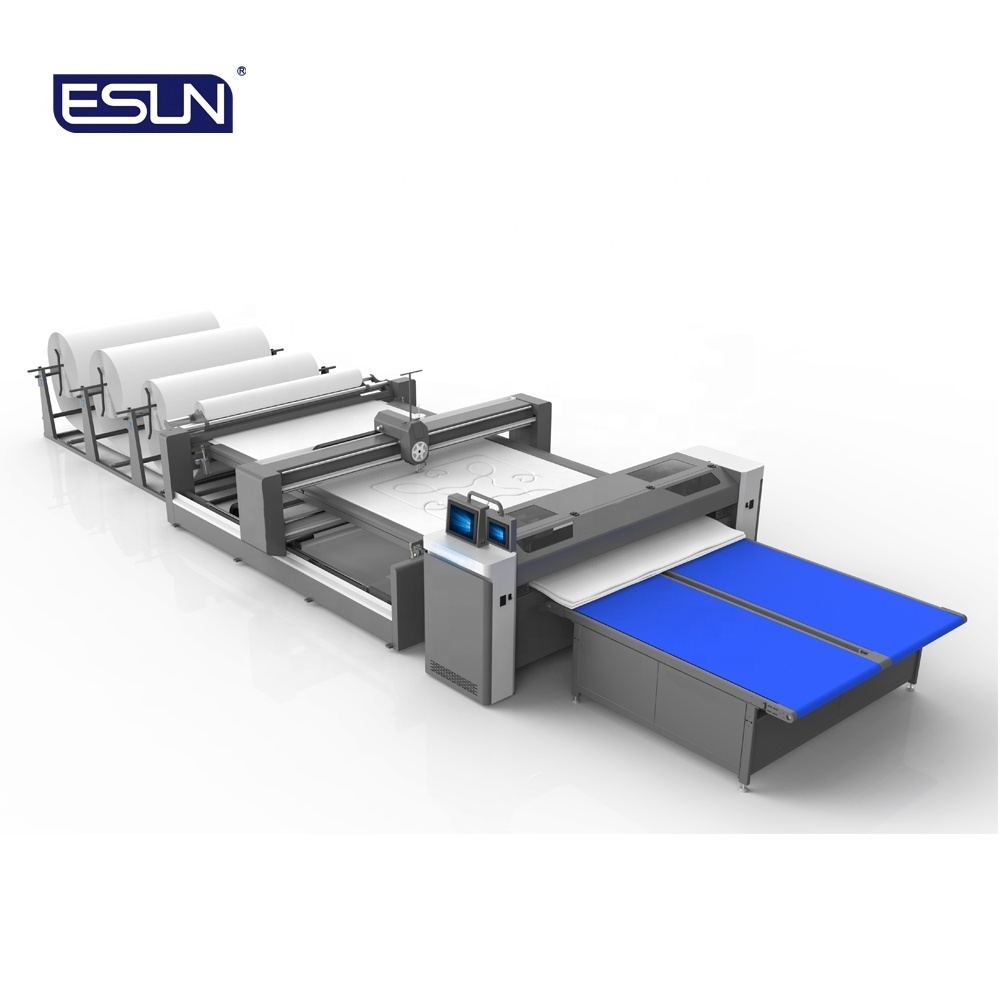

EHC-S210/220 Single Needle Quilting Machines
360° jump quilting, large capacity patterns storage system (up to 100,000 and above patterns)
Auto thread trimming, auto-stop when thread-breaking, patterns auto-positioning amending after thread-breaking
Output counting, pattern effect display, processing locus display functions
Professional pattern-designing software, scanner-input patterns with BMP format, CAD method pattern designing
Real time data protection, operation continuing in original position after sudden power shortage
Full automatic working, automatic lifting edge cutter cutting
| Technical data at a glance | |||||||||||||||||||||||||||||||||||||||||||||||||
| Model | EHC-S210 | EHC-S220 | |||||||||||||||||||||||||||||||||||||||||||||||
| Quilting Width (mm) | ≤2400 | ≤2400 | |||||||||||||||||||||||||||||||||||||||||||||||
| Stitch Length (mm) | 2-6 | 2-6 | |||||||||||||||||||||||||||||||||||||||||||||||
| Rotating Speed Of Needle (rpm) | 3200 | 3200 | |||||||||||||||||||||||||||||||||||||||||||||||
| Total Power (kw) | 8.5 | 5.5 | |||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply (v/hz) | 380/50 | 380/50 | |||||||||||||||||||||||||||||||||||||||||||||||
| Total Weight (kg) | 2500 | 2500 | |||||||||||||||||||||||||||||||||||||||||||||||
| Head | mammut head | PFAFF head | |||||||||||||||||||||||||||||||||||||||||||||||
