Quick Details
-
Brand Name:
-
LONROY
-
Model Number:
-
LR-B001
Quick Details
-
Warranty:
-
1year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LONROY
-
Model Number:
-
LR-B001

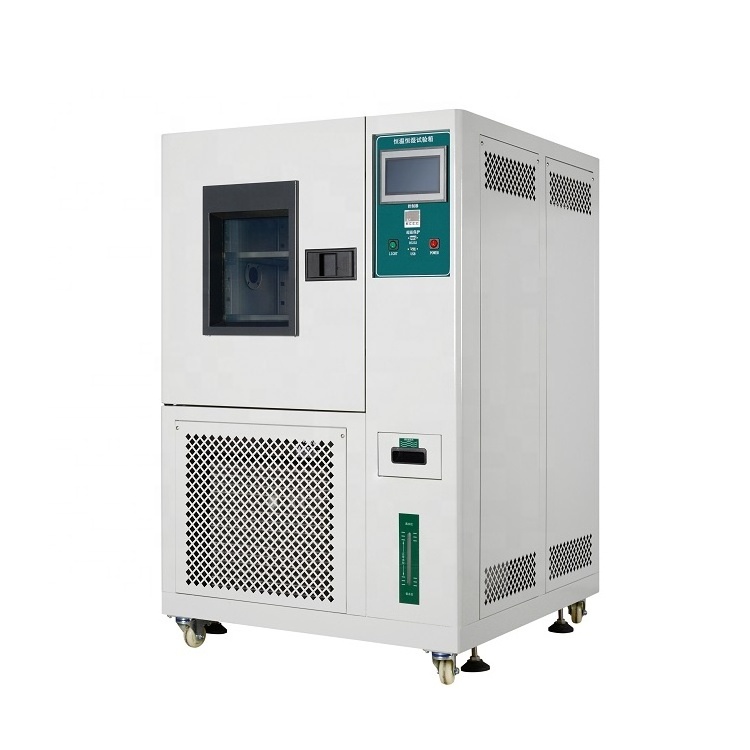

LR-B001 Programmable Temperature Humidity Chamber/Climatic Chamber
Uses:
This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
LR-B001 Programmable Temperature Humidity Chamber/Climatic Chamber
Design Standard:
|
GB11158 |
High Temperature Test Chamber Technical Condition |
|
GB10589-89 |
Low Temperature Test Chamber Technical Condition |
|
GB10592-89 |
High-low Temperature Test Chamber Technical Condition |
|
GB/T10586-89 |
Damp Heat Test Chamber Technical Condition |
|
GB/T2423.1-2001 |
Low Temperature Test Chamber Test Methods |
|
GB/T2423.2-2001 |
High Temperature Test Chamber Test Methods |
|
GB/T2423.3-93 |
Damp Heat Test Chamber Test Methods |
|
GB/T2423.4-93 |
Alternating Damp-Heat Test Methods |
|
GB/T2423.22-2001 |
Temperature Changing Test Methods |
|
IEC60068-2-1.1990 |
Low Temperature Test Chamber Test Methods |
|
IEC60068-2-2.1974 |
High Temperature Test Chamber Test Methods |
|
GJB150.3 |
High Temperature Test Methods |
|
GJB150.4 |
Low Temperature Test Methods |
|
GJB150.9 |
Damp Heat Test Methods |
60068-2-1
LR-B001 Programmable Temperature Humidity Chamber/Climatic Chamber
Specification
|
Model |
LR-B001-
80
|
LR-B001-
150
L
|
LR-B001-
225
L
|
LR-B001-
408
L
|
LR-B001-
800
L
|
LR-B001-
1000
L
|
|
Inner size: WHD(cm) |
40*50*40 |
50*60*50 |
60*75*50 |
60*85*80 |
100*100*80 |
100*100*100 |
|
External size: WHD(cm) |
105*165*98 |
105*175*108 |
115*190*108 |
135*200*115 |
155*215*135 |
155*215*155 |
|
Temperature range |
(Low temp.:A:+25℃; B:0℃;C:-20℃; D:-40℃; E:-60℃; F:-70℃) (High temp.: + 150℃) |
|||||
|
Humidity range |
20%~98% R.H |
|||||
|
Temp analytic accuracy/
|
0.1 ℃ /±2.0 ℃ |
|||||
|
Temperature Fluctuation |
±0.5 ℃ |
|||||
|
Humidity control accuracy |
±0.1%;±2.5% |
|||||
|
Heat, cooling time |
Heat up about 4.0°C/min ; Cooling about 1.0°C/min |
|||||
|
Inner and outer materials |
SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer |
|||||
|
Insulation materials |
Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials |
|||||
|
Cooling system |
Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) |
|||||
|
Protection devices |
Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system |
|||||
|
Parts |
Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4, Foot Cupx4 |
|||||
|
Compressor |
Original France“Tecumseh”brand |
|||||
|
Controller |
Taiwan, Independent R&D software |
|||||
|
Power |
AC220V 50/60Hz & 1 , AC380V 50/60Hz 3 |
|||||
|
Weight (kg) |
170 |
220 |
270 |
320 |
450 |
580 |
