Quick Details
-
Power:
-
100kw
-
Dimension(L*W*H):
-
1.2*1.0*1.5
-
Warranty:
-
within one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
product name:
-
flat steel rolling machinery
-
color:
-
green
-
flat bar size:
-
20*1.8mm
-
usage:
-
make flat bar from wire rod
-
other machine:
-
with straighten and cutter
-
main spare parts:
-
rollers
-
machine materials:
-
casting steel
-
control:
-
with PLC
-
materials size:
-
Q195, Q235
-
Certification:
-
CE and ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HengYuan
-
Voltage:
-
380V, 50hz
-
Power:
-
100kw
-
Dimension(L*W*H):
-
1.2*1.0*1.5
-
Warranty:
-
within one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
product name:
-
flat steel rolling machinery
-
color:
-
green
-
flat bar size:
-
20*1.8mm
-
usage:
-
make flat bar from wire rod
-
other machine:
-
with straighten and cutter
-
main spare parts:
-
rollers
-
machine materials:
-
casting steel
-
control:
-
with PLC
-
materials size:
-
Q195, Q235
-
Certification:
-
CE and ISO
flat steel rolling machinery
The following info is an example
1, roll diameter 12 wire rod into 2.5x19mm flat bar, material Q195
2,The speed is designed according to diameter19mm, transducer 45HZ, for the reducer ratio
3.One transducer for one machine, PLC display control
4,flat steel rolling machinery f inal product speed: 40m/minute when cutting the flat bar into short pcs
We would like to design the whole process according to your request,
From the scaling machine----straighten and cutting machine---rolling mill and so on
The input size is often the wire rod, final is flat bar
flat steel rolling machinery main technical date
Plain-barrel rolling mill, 4sets
Motor 22KW, electric screw down, roll gap adjustable, rails available for roll discharge, convenient to discharge rolls. Roll diameter 230×250mm. Roll-adjusting motor 1.5KW.
Pay for free-Cross Wheel Round 6
the working prinple of flat steel rolling machinery is by the rollers reducing the wire rod diameter
flat bar final usage is very widely, it is mainly for making some household tools, and some funiture tools and so on

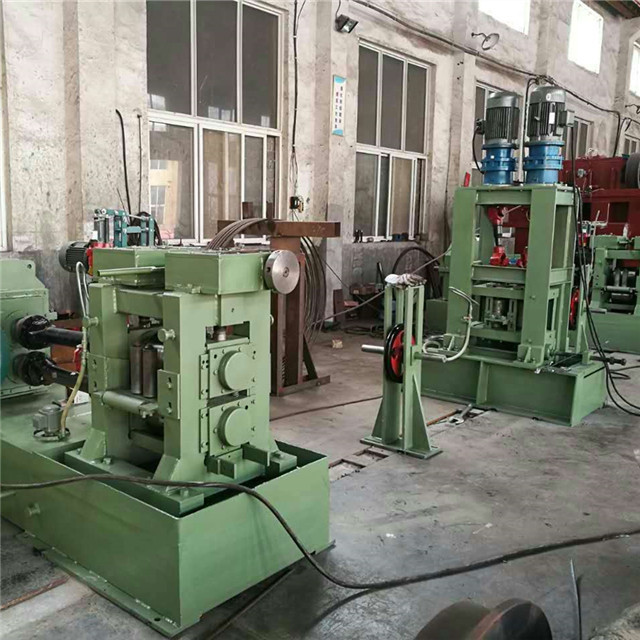

the following is picture
the whole set machine is controled by automatic PLC, we use domestic top brand of contactor and other parts
Our goods has been hot sold to different countries, such as south Amercian, Africa and so on
And welcome to visit our factory, Our nearest airport, ZhengZhou, HeNan Province
If have any question, welcome to contact with me by the following info
