Quick Details
-
Power (kW):
-
13
-
Range of Spindle Speed(r.p.m):
-
2000 - 4000 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Wantong
-
Voltage:
-
220V OR 380V
-
Dimension(L*W*H):
-
4500*1250*2700mm
-
Weight (KG):
-
800 KG
-
Marketing Type:
-
New Product
-
Product name:
-
WFJ tea leaf grinding machine
-
Machine material:
-
stainless steel 304
-
Usage:
-
chemical, Food Used
-
Production capacity:
-
20-100kg/h
-
Output size:
-
80-600
-
Function:
-
tea leaf grinding machine
-
Keywords:
-
tea leaf grinding machine
-
Supply:
-
Live video
-
Weight:
-
850KG
Quick Details
-
Output (kg/h):
-
10 - 1200 kg/h
-
Feeding Size (mm):
-
1 - 12 mm
-
Output Size (mesh):
-
12 - 1000 mesh
-
Power (kW):
-
13
-
Range of Spindle Speed(r.p.m):
-
2000 - 4000 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Wantong
-
Voltage:
-
220V OR 380V
-
Dimension(L*W*H):
-
4500*1250*2700mm
-
Weight (KG):
-
800 KG
-
Marketing Type:
-
New Product
-
Product name:
-
WFJ tea leaf grinding machine
-
Machine material:
-
stainless steel 304
-
Usage:
-
chemical, Food Used
-
Production capacity:
-
20-100kg/h
-
Output size:
-
80-600
-
Function:
-
tea leaf grinding machine
-
Keywords:
-
tea leaf grinding machine
-
Supply:
-
Live video
-
Weight:
-
850KG

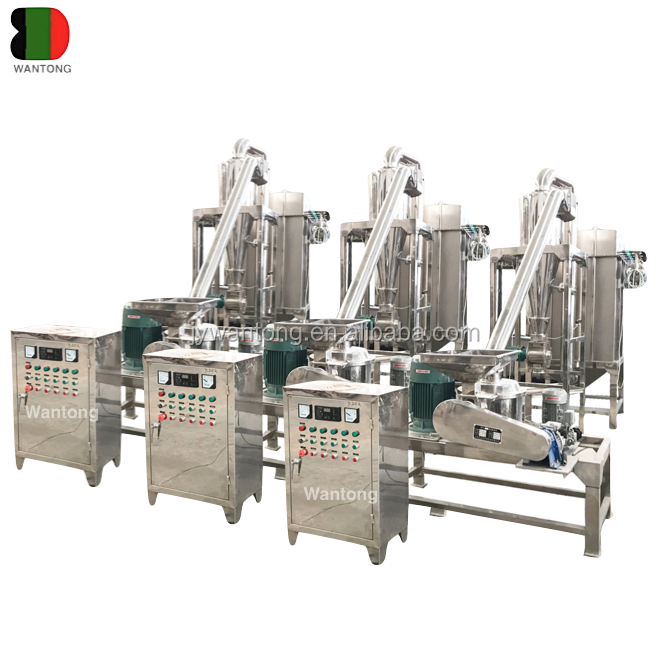

WFJ tea leaf grinding machine
IF YOU WANT A GOOD AND EXPERT FACTORY, CALL/TEXT US FOR MORE INFORMATION!!
Main Uses:
The machine made up of main engine, auxility engine and electric-box, featuring winnowing without sieve or mesh, ever granule size, continuous operation, etc. The machine reaches advanced world-level and is widely used for material grinding in chemical and foodstuff industries, etc.
Working Principle:
Materials are transported into smashing mesh via screw conveyor, then crushed by the high-speed revolving razor blade. With the negative pressure, materials will be transported into cyclone separator, ejected by pass-breezing machine. Without the powder float in whole producion line the powder float in the sky.
price need discuss again, machine is all customized
Technical Parameters
| Model | WFJ-15 | WFJ-20 | WFJ-30 | WFJ-60 | WFJ-80 | |
| Capacity (kg) | 20~100 | 50~200 | 100~400 | 200~800 | 300~1000 | |
| Feed size (mm) | <10 | <10 | <12 | <12 | <12 | |
| Output size (mesh) | 80-320 (adjustable) | |||||
| Motor power (kw) | 13.37 | 18.37 | 42.5 | 77.5 | 96 | |
| Spindle speed (rpm) | 5800 | 4200 | 3800 | 3200 | 2800 | |
| Weight (kg) | 850 | 1000 | 1300 | 2500 | 3000 | |
| Overall size(L*W*H)(mm) | 4500*1250*2700 | 6000*1250*2900 | 7100*1300*3650 | 8000*2300*4500 |
8500*2500*4600
|
|
The above is our technical data. We can also design and manufacture different varieties upon customer's request.
