> 25 years Warranty
> Highest conversion efficiency of 17%
> Anti-reflective and anti-soiling surface power
loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance
- Product Details
- {{item.text}}
Quick Details
-
Controller Type:
-
mppt
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
ce
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Bluesun
-
Model Number:
-
BSM6kw-off
-
Load Power (W):
-
6kw, 6KW
-
Output Voltage (V):
-
110/20/230v, DC 24V/36/48/96
-
Output Frequency:
-
50/60hz
-
Work Time (h):
-
20 hours
-
Solar panel system:
-
6kw solar system
-
Solar system Inverter:
-
Inverter With MPPT Controller Built In
-
Solar power system output wave:
-
pure sine wave solar system
-
Solar panel rack:
-
flat ground and roof for optional
-
Battery:
-
light,refrigerator,air conditioner
-
Solar system technology:
-
IPM or IGBT of Mitsubishi
-
Output frequency:
-
50HZ/60HZ
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lead-Acid
-
Controller Type:
-
mppt
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
ce
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Bluesun
-
Model Number:
-
BSM6kw-off
-
Load Power (W):
-
6kw, 6KW
-
Output Voltage (V):
-
110/20/230v, DC 24V/36/48/96
-
Output Frequency:
-
50/60hz
-
Work Time (h):
-
20 hours
-
Solar panel system:
-
6kw solar system
-
Solar system Inverter:
-
Inverter With MPPT Controller Built In
-
Solar power system output wave:
-
pure sine wave solar system
-
Solar panel rack:
-
flat ground and roof for optional
-
Battery:
-
light,refrigerator,air conditioner
-
Solar system technology:
-
IPM or IGBT of Mitsubishi
-
Output frequency:
-
50HZ/60HZ
Product Description

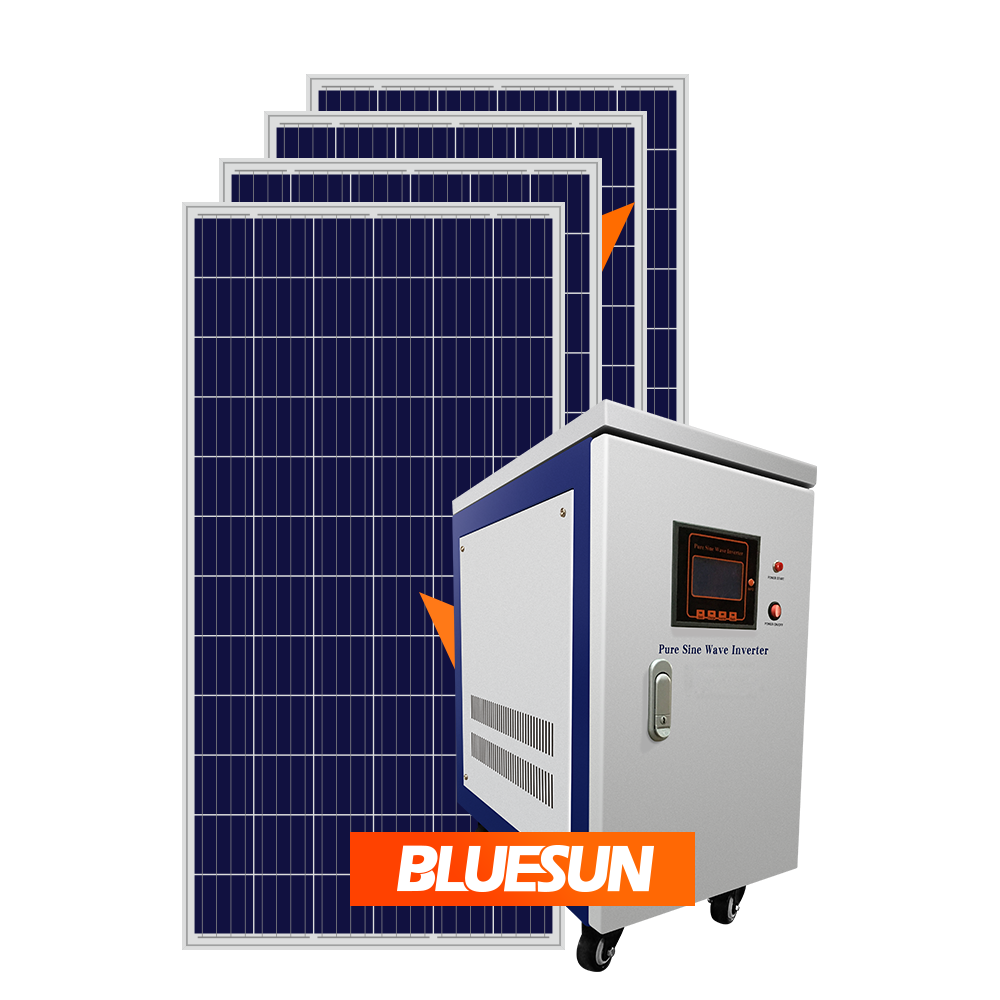

Off-Grid Solar Systems
An off-grid solar system (off-the-grid, standalone) is the obvious alternative to one that is grid-tied. For homeowners that have access to the grid, off-grid solar systems are usually out of question.
Equipment&Detailed
|
6KW Off Grid Solar System Equipment list
|
|
|
|
|||
|
Item
|
Module
|
Description
|
Quantity
|
|||
|
1
|
Mono 320W Solar Panel
BSM320M
|
Size: 1950*992*40mm
Weight: 24kg
|
20pcs
|
|||
|
2
|
Solar Charge Controller
|
96V 60A
|
1pc
|
|||
|
3
|
Solar Battery
|
12V 250AH
|
8pcs
|
|||
|
4
|
Off Grid Inverter
|
DC 96V
AC220/230/240 50/60Hz
|
1pc
|
|||
|
5
|
DC Combiner Box
|
5 input 1 output
|
1pc
|
|||
|
6
|
Mounting Structure
|
Full mounting kits
(for 20pcs solar modules)
|
1set
|
|||
|
7
|
PV Cable
|
4mm2
|
500m
|
|||
|
|
|
10mm2
|
100m
|
|||
|
8
|
pv Connector
|
Rated Voltage:1000V
|
10pairs
|
|||
Solar Panels
Chrage Controller
> PWM Charge
> Mppt Charge
Battery
> Agm Battery
> Gel Battery
> 2V,12V
Without a battery bank (or a generator) it'll be lights out by sunset. A battery bank is essentially a group of batteries wired together
Packing & Delivery
Project
100Pcs poly 320w solar panel
Whole set mounting structure on flat roof
120Pcs GEL 2V 600Ah battery
240V 150A charge controller and 30Kw off grid inverter
