Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Fluidsmart
-
Model Number:
-
AD1DC3EX-B
-
Place of Origin:
-
Shanghai, China
-
Cable Length:
-
20cm
-
Power:
-
0.31W
-
motor:
-
brushed motor
-
Product name:
-
Micro Explosion-proof Pump
-
Model:
-
AD1DC3EX-B
-
Max. Flow rate:
-
530 ml/min (3.3v)
-
Motor:
-
DC Brush Motor
-
Max. Negative Pressure:
-
-47KPa
-
Max. Positive Pressure::
-
+44KPa
-
Color:
-
Black Silver pump
-
Size:
-
33*23*14mm
-
Weight:
-
22g
-
Pump head:
-
PPS material
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, District Energy, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Pharmaceutical industry, temperature control
-
Pressure:
-
Low Pressure
-
Voltage:
-
1VDC~4VDC
-
Warranty:
-
1 year
-
Brand Name:
-
Fluidsmart
-
Model Number:
-
AD1DC3EX-B
-
Place of Origin:
-
Shanghai, China
-
Cable Length:
-
20cm
-
Power:
-
0.31W
-
motor:
-
brushed motor
-
Product name:
-
Micro Explosion-proof Pump
-
Model:
-
AD1DC3EX-B
-
Max. Flow rate:
-
530 ml/min (3.3v)
-
Motor:
-
DC Brush Motor
-
Max. Negative Pressure:
-
-47KPa
-
Max. Positive Pressure::
-
+44KPa
-
Color:
-
Black Silver pump
-
Size:
-
33*23*14mm
-
Weight:
-
22g
-
Pump head:
-
PPS material

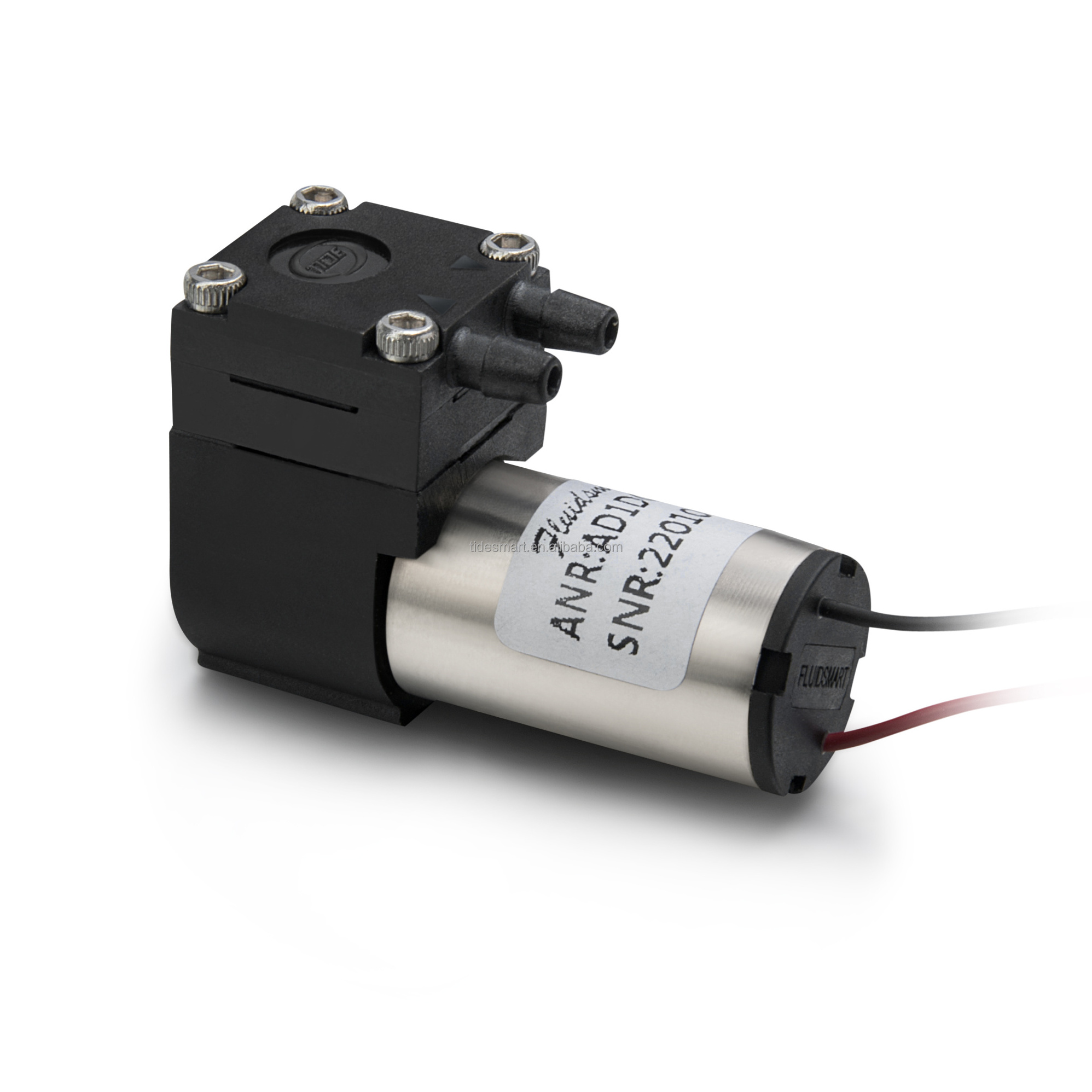

AD1 Series 3.3vdc
Explosion-proof Diaphragm Pump
Features:
Optimized pump body to ensure small volume, provide large flow and maintain relatively low power consumption.
The gas flow is stable and the motor runs in a wide range.
* High efficiency
* Low leakage rate and pollution-free sample gas
* Long lifetime: 4000-5000hours
The gas flow is stable and the motor runs in a wide range.
* High efficiency
* Low leakage rate and pollution-free sample gas
* Long lifetime: 4000-5000hours
* Intrinsically safe explosion-proof: meet intrinsically safe explosion-proof requirements, EX IA IIC T4 Ga certificate can be provided
|
Model:
|
AD1DC3.3
(Standard)
|
AD1DC3EX-B (Explosion-proof)
|
AD1DC3PV
(Double Pump）
|
|
Voltage range:
|
1Vdc~4Vdc
|
1Vdc~4Vdc
|
1Vdc~4Vdc
|
|
Maximum flow(3.3v):
|
530 ml/min
|
530 ml/min
|
1088 ml/min
|
|
Max. negative pressure:
|
-47Kpa
|
-47Kpa
|
-47Kpa
|
|
Max. positive pressure:
|
+44Kpa
|
+44Kpa
|
+44Kpa
|
|
Motor type:
|
Dc brushed motor
|
Dc brushed motor
|
Dc brushed motor
|
|
Max. power:
|
0.31w
|
0.31w
|
0.7w
|
|
Waterproof grade:
|
IP40
|
IP40
|
IP40
|
|
Storage environment temp.:
|
-40℃~60℃
|
-40℃~60℃
|
-40℃~60℃
|
|
Working environment temp.:
|
-20℃~50℃
|
-20℃~50℃
|
-20℃~50℃
|
|
Pump head material:
|
polyamides
|
polyamides
|
polyamides
|
|
Pump diaphragm/valve material:
|
EPDM or customized FKM
|
EPDM or customized FKM
|
EPDM or customized FKM
|
|
Pump Body material:
|
PPS
|
PPS
|
PPS
|
|
Red wire connection:
|
positive pole
|
positive pole
|
positive pole
|
|
Black wire connection:
|
negative pole
|
negative pole
|
negative pole
|
|
Dimensions(mm):
|
33*23*14mm
|
33*23*14mm
|
36*33*14mm
|
