Quick Details
-
Warranty:
-
1year, 1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Excalibur
-
Model Number:
-
S6500DS-4
-
Speed:
-
3000rpm
-
Weight:
-
153KG
-
Product Name:
-
S6500DS-4
-
Type:
-
Silent Type
-
Alternator:
-
100% Copper Alternator
-
Color:
-
Customers' Request
-
Certificate:
-
CE/ISO9001
-
Fuel Tank:
-
20L
-
Phase:
-
1 Phase/3 Phase
-
Starting system:
-
Electric
-
Cooling method:
-
Air-cooling System
-
Certification:
-
CE ISO9001
Quick Details
-
Rated Voltage:
-
110/120/220/230/240/380V
-
Rated Current:
-
29.54
-
Frequency:
-
50/60HZ
-
Warranty:
-
1year, 1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Excalibur
-
Model Number:
-
S6500DS-4
-
Speed:
-
3000rpm
-
Weight:
-
153KG
-
Product Name:
-
S6500DS-4
-
Type:
-
Silent Type
-
Alternator:
-
100% Copper Alternator
-
Color:
-
Customers' Request
-
Certificate:
-
CE/ISO9001
-
Fuel Tank:
-
20L
-
Phase:
-
1 Phase/3 Phase
-
Starting system:
-
Electric
-
Cooling method:
-
Air-cooling System
-
Certification:
-
CE ISO9001
Product Description
|

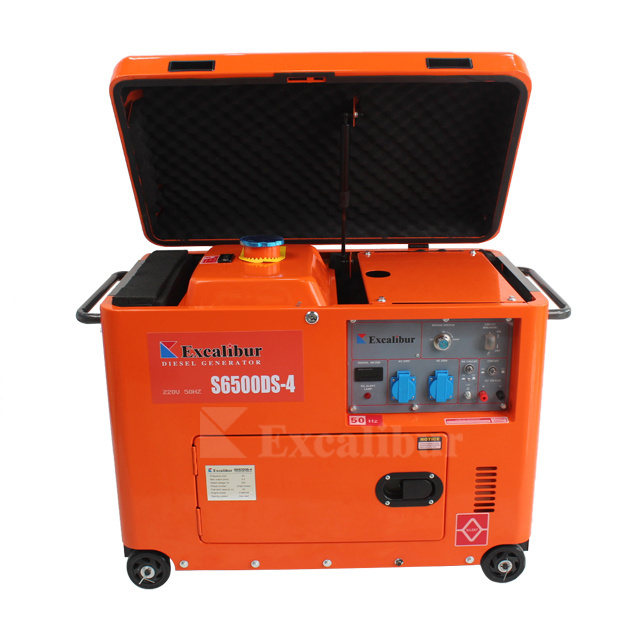

Excalibur S6500DS-4 famous brand big fuel tank single cylinder three phase silent generator
|
|
|
|
|
||||
|
10HP diesel engine S186FAE
|
|
100% copper wire alternator
|
|
|
||||
|
Silent canopy, portable model
|
|
5KVA output
|
|
|
||||
|
Electric start with 30AH battery
|
|
Electric start with 30AH battery
|
|
|
||||
Specification
|
Silent Diesel Generator Model
|
|
S3500DS
|
S5000DS
|
S6500DS
|
S7500DS
|
S8500DS
|
S9800DS
|
S11000DS
|
||||||
|
Generator
|
Rated frequency(Hz)
|
50 / 60
|
|
|
|
|
|
|
||||||
|
|
Rated power(kW)
|
2.8 / 3.0
|
4.2 / 4.6
|
4.5 /5.0
|
5.0 / 5.5
|
6.0 / 6.5
|
7.5 / 8.0
|
8.0 / 8.5
|
||||||
|
|
Maximum power(kW)
|
3.0 / 3.3
|
4.6 / 5.0
|
5.0 / 5.5
|
5.5 / 6.0
|
6.5 / 7.0
|
7.5 / 8.0
|
8.0 / 8.5
|
||||||
|
|
Rated voltage(V)
|
120, 220, 230, 240, 220/380
|
|
|
|
|
|
|
||||||
|
|
Rated current(A)
|
12.73
|
19.09
|
20.45
|
22.73
|
27.27
|
37.09
|
36.36
|
||||||
|
|
Rated speed(r/min)
|
3000/3600
|
|
|
|
|
|
|
||||||
|
|
Phase number
|
Single phase/ Three phase
|
|
|
|
|
|
|
||||||
|
|
Power factor
|
1 / 0.8
|
|
|
|
|
|
|
||||||
|
|
Ways of excitation
|
Self-excited constant voltage(AVR)
|
|
|
|
|
|
|
||||||
|
|
Manner of working
|
14.5 hours
|
9.7 hours
|
9.3 hours
|
8.5 hours
|
6.8 hours
|
6.1 hours
|
5.8 hours
|
||||||
|
|
Connection ways
|
Taper shaft rigid connection
|
|
|
|
|
|
|
||||||
|
|
Total mass(kg)
|
140
|
150
|
153
|
155
|
160
|
184
|
195
|
||||||
|
|
Overall dimension(mm)
|
950*540*710
|
|
|
|
|
1130*650*750
|
1070*715*770
|
||||||
|
Engine
|
Enbgine Model
|
S178FE
|
S186FE
|
S186FAE
|
S188FBE
|
S192FE
|
SD650
|
S1100FE
|
||||||
|
|
Types
|
Single cylinder, air cooled, 4-stroke, direct injection, Vertical
|
|
|
|
|
|
|
||||||
|
|
Displacement(ml)
|
296
|
406
|
418
|
456
|
498
|
633
|
668
|
||||||
|
|
Bore*stroke(mm)
|
78*62
|
86*70
|
86*72
|
88*75
|
92*75
|
98*84
|
100*85
|
||||||
|
|
Fuel type
|
Diesel fuel: 0#(summer); -10#(winter); -35#(cold)
|
|
|
|
|
|
|
||||||
|
|
Fuel consumption g/kw.h
|
≤275
|
|
|
|
|
|
|
||||||
|
|
Compression ratio
|
19:1
|
|
|
|
|
|
|
||||||
|
|
Lube
|
CD or SAE10W-30 or 15W-40
|
|
|
|
|
|
|
||||||
|
|
Start-up mode/Battery capacity
|
12V electric start/ 30Ah
|
|
|
|
12V electric start/ 36Ah
|
|
|
||||||
|
|
Fuel tank capacity(L)
|
20L
|
|
|
|
|
|
|
||||||
Optional Device
Our Advantages
Packing & Delivery
One set packed in one Carton
