Quick Details
-
Power:
-
8600
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HIGHTOP
-
Maximum Digging Height:
-
2686mm
-
Maximum Digging Depth:
-
1440mm
-
Max Digging Radius:
-
2925mm
-
Rated Speed:
-
8.6 kw/3600r/min
-
Product name:
-

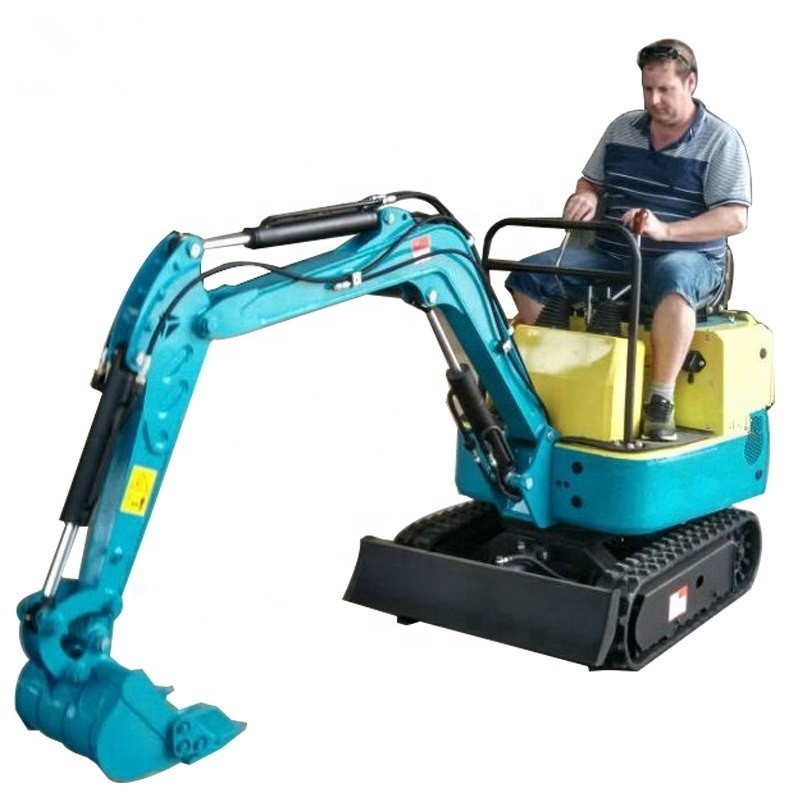

Small micro bagger cheap mini excavator with canopy
-
Engine Model:
-
ChangChai 192FAM
-
DISPLACEMENT:
-
0.211L
-
Bucket width:
-
380mm
-
Swing motor:
-
SJ-TECH (MP-1-160)
-
Traveling motor:
-
KERSEN(OMS-2450)
-
Travel speed:
-
1.5km/h
-
Bucket digging force:
-
9.5Kn
-
Hydraulic pump pressure:
-
16Mpa
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Canada, Turkey, United Kingdom, France, Germany
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE/ISO
Quick Details
-
Operating Weight:
-
1000kg
-
Bucket capacity:
-
0.025cbm
-
Engine Brand:
-
Changchai
-
Power:
-
8600
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HIGHTOP
-
Maximum Digging Height:
-
2686mm
-
Maximum Digging Depth:
-
1440mm
-
Max Digging Radius:
-
2925mm
-
Rated Speed:
-
8.6 kw/3600r/min
-
Product name:
-
Small micro bagger cheap mini excavator with canopy
-
Engine Model:
-
ChangChai 192FAM
-
DISPLACEMENT:
-
0.211L
-
Bucket width:
-
380mm
-
Swing motor:
-
SJ-TECH (MP-1-160)
-
Traveling motor:
-
KERSEN(OMS-2450)
-
Travel speed:
-
1.5km/h
-
Bucket digging force:
-
9.5Kn
-
Hydraulic pump pressure:
-
16Mpa
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Canada, Turkey, United Kingdom, France, Germany
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE/ISO
Small size outdoor construction micro bagger cheap mini excavator with canopy
*High fuel efficiency,Super power
*Lower fuel Consumption,High configuration, Superior performance
*Saving energy and protecting environment
|
Weight |
1000kg |
|
Digging bucket capacity |
0.025cbm/120kg |
|
Bucket width |
380mm |
|
Engine |
Changchai 192f |
|
Borestroke |
Single cylinder, fan cool |
|
Rated power |
11HP 8.6KW 3600RMP |
|
Displacement |
0.211 L |
|
Bore stroke |
70x55 |
|
Main pump |
CBK-F6.8 |
|
Displacement |
6.8ml/r |
|
Swing motor |
SJ-TECH (MP-1-160) |
|
Traveling motor |
KERSEN(OMS-2450) |
|
Travel speed |
1.5km/h |
|
MAIN DEMENSIONS |
|
|
Overall dimension( LxWxH) |
2770x896x1490 mm |
|
Wheelbase |
910 mm |
|
Total length of track |
1230mm |
|
Platform ground clearance |
380 mm |
|
Platform back turning radius |
784 mm |
|
Chassis width |
896 mm |
|
Track width |
130 mm |
|
Chassis ground clearance |
132 mm |
|
Track height |
320 mm |
|
OPERATING RANGE |
|
|
Max. Digging depth |
1650 mm |
|
Max. Vertical digging depth |
1375 mm |
|
Max. Digging height |
2610 mm |
|
Max. Dumping height |
1850 mm |
|
Max. Digging radius on ground |
2850 mm |
|
Min. Rotation radius |
1330 mm |
|
Max. Upgrade height of bulldozer blade |
345 mm |
|
Max. Digging depth of bulldozer blade |
255 mm |
Chinese famous manufacturer garden digging machine cheap mini digger This excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.
It's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking.
Come with one standard digging bucket 340mm and canopy.
Optional Accessory : Narrow bucket(200mm width), Plain bucket (500mm width), Ripper, Grabber, Rake, Auger and etc.
Color can choose red, yellow, blue, accepted customized.
