Quick Details
-
Printing Type:
-
For any printing machine
-
Weight (KG):
-
8
-
Place of Origin:
-
China
-
Brand Name:
-
GALY
-
Model:
-
Tension Control System
-
Installation:
-
floor-mounted,wall-mounted,panel-mounted
-
power supply voltage:
-
AC220V 50HZ
-
output voltage:
-
0-24v
-
output current:
-
0-4A
-
Control method:
-
Full Auto
-
Delivery time:
-
in stock
Quick Details
-
Condition:
-
New
-
Type:
-
Tension Control System
-
Use:
-
For any brand printing machine
-
Printing Type:
-
For any printing machine
-
Weight (KG):
-
8
-
Place of Origin:
-
China
-
Brand Name:
-
GALY
-
Model:
-
Tension Control System
-
Installation:
-
floor-mounted,wall-mounted,panel-mounted
-
power supply voltage:
-
AC220V 50HZ
-
output voltage:
-
0-24v
-
output current:
-
0-4A
-
Control method:
-
Full Auto
-
Delivery time:
-
in stock
Product Description

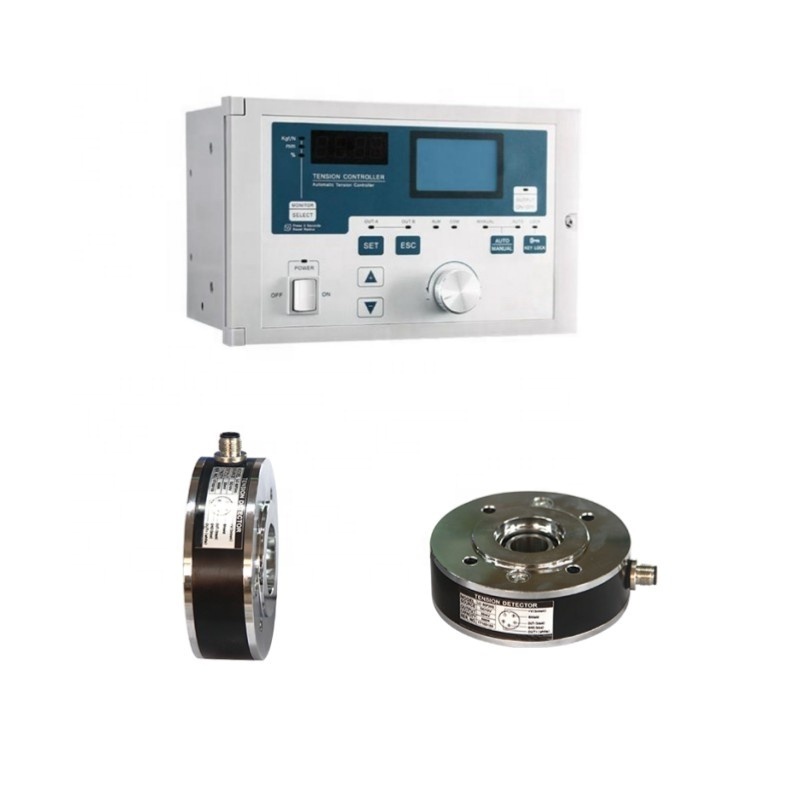

Automatic automatic tension control system
The seat-type tension sensor is detected by imported full-bridge strain gauges (high-precision with built-in temperature compensation), and processed through high-precision signal and temperature compensation. It has the characteristics of high precision, low temperature drift, and good linearity. The sensor can effectively shield static electricity and frequency conversion. The group pulse interference of the device. It has a built-in overload limit to prevent damage to the sensor during overload. The sensors have various measuring ranges such as 5KG, 10KG, 30KG, 50KG, 100KG, and 200KG.
The screen will display the tension applied to each tension sensor separately. The controller has a graphic LCD display Chinese and English menu selectable, the user interface is friendly and easy to use.
The controller can drive the magnetic powder brake/clutch directly with its built-in 0~24V/4A output, the controllercan also
outputs 0~+10V, this can drive the inverter, servo motor or other power units.The KTC828A can be used in papermaking, printing, packaging, textile, print and dyeing industries, etc.
|
Tension Inputs
|
Double channel ± 30mV or ± 300mV or ± 5V (Made to Ordei; specify when ordering)
|
|
Radius Detection
|
Internal calculations
|
|
Measurement Precision
|
16-bit AD Converter,±lLSB
|
|
Sample Rate
|
50ms
|
|
Control Algorithm
|
PI (Proportional Integral)
|
|
Main Outputs
|
Dual 24V/4A, drive magnetic powder brake/clutch
|
|
Auxiliary Outputs
|
Dual 0-10V, drive inverter or Electric-Pneumatic converter
|
|
Tension Alarm
|
Relay, Normally Open, 3A/250V AC
|
|
Communications
|
RS485,Modbus Protocol
|
|
Dimensions
|
246(W)xl54(H)xl56.5(D), unit: mm
|
|
Power Supply
|
165~264v ,50/60HZ
|
Automatic tension controller
●Use32-BitshighspeedCPU,graphicLCD,ChineseandEnglishmenu,theuserinterfaceis friendlyandeasytoues.
●Build-inPlalgorithm.
●Fulldigitalcircuits,nopotentiometer.
●Built-inDouble0~24V/4Aoutput,candrivethepowderbrake/clutchdirectly.
●Fulldigitalcircuits,nopotentiometer.
●Built-inDouble0~24V/4Aoutput,candrivethepowderbrake/clutchdirectly.
●Tworeelexchange.
●Highandstablemeasurementandeasytensioncalibration.
●StandardModbusProtocol,easytocommunicatewithPLC/PC/TouchPannel. ● Widerangeinputswitchingpowersupply(165~264VAC)
●Highandstablemeasurementandeasytensioncalibration.
●StandardModbusProtocol,easytocommunicatewithPLC/PC/TouchPannel. ● Widerangeinputswitchingpowersupply(165~264VAC)
Installation Size and Installation Methods
Wire Connection
