Automatic 1000CPH Small Carbonated Drink Filling Machine Can Filling Machine

Automatic 1000CPH Small Carbonated Drink Filling Machine Can Filling Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $19000

≥5 Sets

US $17000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: +_2mm

Voltage:: 380 V 50 HZ

Place of Origin:: Jiangsu, China

Brand Name:: OK Machinery

Dimension(L*W*H):: 2700X2150X1900MM

Weight:: 3200 KG

Name:: can Filling Machine

Model:: 12-1

Capacity:: 1000-1500BPH

Filling volume:: 200ml-2000ml

Product name:: can filling machine

Function:: Can Filling Capping

Processing Types:: Automatic can Filling Sealing Machine

Usage:: Filling Capping Labeling Packaging

Bottle type:: Plastic aluminum can

Material:: SUS304/316

Quick Details

Machinery Capacity:: 4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 1000BPH

Packaging Material:: Wood

Filling Material:: Juice

Filling Accuracy:: +_2mm

Voltage:: 380 V 50 HZ

Place of Origin:: Jiangsu, China

Brand Name:: OK Machinery

Dimension(L*W*H):: 2700X2150X1900MM

Weight:: 3200 KG

Name:: can Filling Machine

Model:: 12-1

Capacity:: 1000-1500BPH

Filling volume:: 200ml-2000ml

Product name:: can filling machine

Function:: Can Filling Capping

Processing Types:: Automatic can Filling Sealing Machine

Usage:: Filling Capping Labeling Packaging

Bottle type:: Plastic aluminum can

Material:: SUS304/316

Product Description

Automatic 6000CPH 18-6 beverage line juice/cola/beer filling canning machine
1. Model GF18-6

2.Capacity : 4000-60000BPH (330ml)
3. Suitable : Plastic bottle 250ml-2000ml
4. Machine size : 2750x1750x1900mm
5.Machine electric brand : SIEMENS , MITSUBISHI, Schneider
6.Machine power : 3.5KW
7. Machine weight : 3500kg
8. Machine include function : can filling and seaming machine
9. Application: can filler machine for Beverage, water , cola , beer , juice , oil
automatic can filling machine video

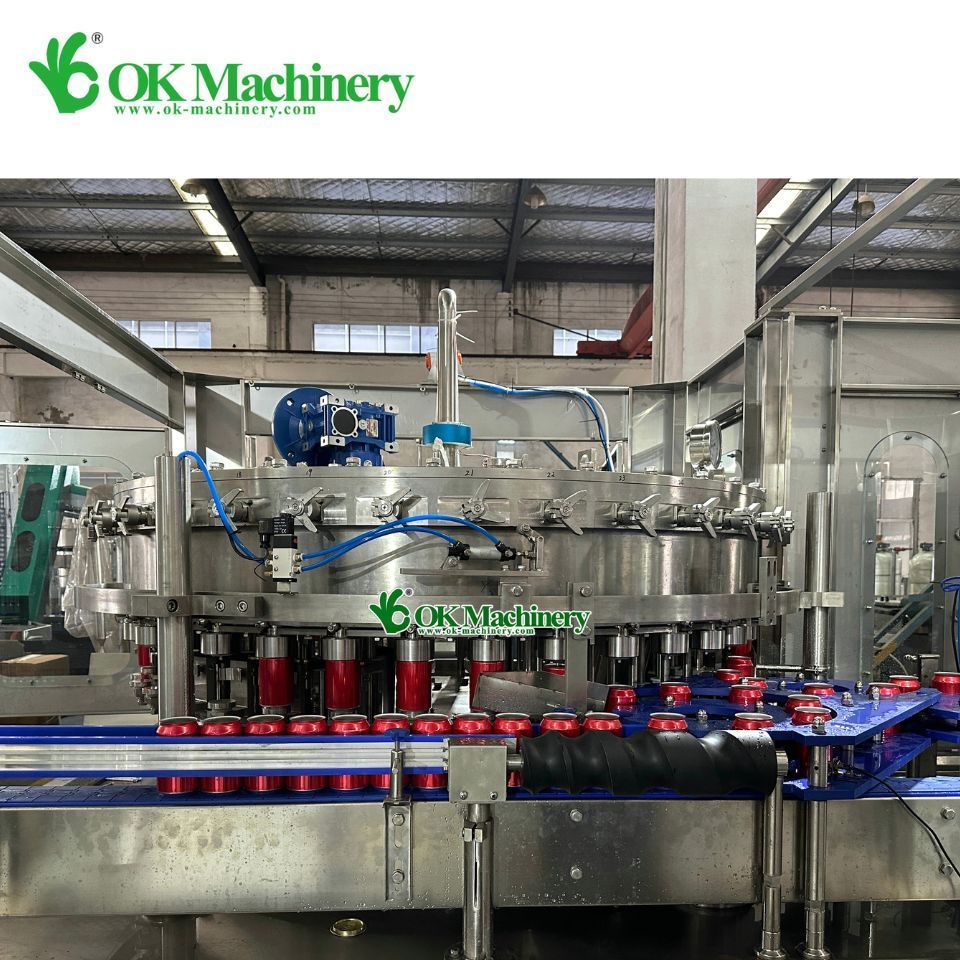

1.It is used in the can filling and seaming for water. The filling and seaming are designed in one body. The power of filling
system is provide by the seaming system to assure the synchronization and harmony.
2.It is the latest equipment made on the basis of advanced technology of drink can filling and seaming .
3.Adopt the advanced mechanism, electronic components and pneumatic control technology, apply isobaric pressure filling theory, the filling speed is fast, the liquid level is stable with loss. Seaming quality is good, the machine run smoothly, appearance is beautiful, operation and maintenance is convenient, the production speed apply frequency conversion, and long-distance control system can be collocated according to the request of client.
4.As the can is easy to get deformed, soft treatment is needed in the transferring process. The conveying system regulates the transferring speed according to the each machine’s working condition to assure no bottle falling or crashing occurs.

Specification

Automatic 6000-8000 cans /hour can filling machine video

Model	GF18-6	GF24-6	GF32-6	GF40-8
Capacity	6000-8000cans/hour	8000-10000 CPH	10000-12000 CPH	15000-18000 CPH
Can Volume	200ml-1000ml	200ml-1000ml	200ml-1000ml	200ml-1000ml
Can diameater	50-70mm	50-70mm	50-70mm	50-70mm
Bottle high	120-170mm	120-170mm	120-170mm	120-170mm
Machine power	3.5KW	5.5KW	7.5KW	9.5KW
Machine size	175x120x195CM	305x175x220CM	340X195X220CM	350x235x225CM

Washing Part

Function : washing cans inside and outside dust .

<1>All 304/316stainless steel rinse heads, water spray style inject design, more
save water consumption and more clean <2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during
washing

<3> 304/316 stainless steel washing pump

Filling Part

Fucntion : filling beverage into cans .

<1> 304/316 Stainless steel high precision filling nozzle

<2> Filling volume adjustable in
fine rank, same liquid level after filling

<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

<4> 304/316 stainless steel filling pump

Capping part

Function : put caps on cans .

<1> Place and can sealing system, electromagnetic capping heads, with burden discharge function,make sure minimum bottle crash during capping

<2> All 304/316 stainless steel construction <3> No cans no capping

<4> Automatic stop when lack of cans

Related machine

Water treatment system

Stainless steel high pressure film shellAll kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system Online type pressure auto self-protection device Online type electricity indicator System safe protecting and alarm system System frame

Film wrap packing machine

In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine, sometimes called the winding machine and the wrapping machine.

Sleeve shrinking labeling machine

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels.

cans Flat Conveyor

- Energy saving. High efficient. Adapt to customer factory layout - Special lubrication system, keep products clean, health, safety - Extended service life
- Electric eyes design keep whole line running safety and quickly - Overload protection mechanism to effectively ensure the safety of the machine
