Quick Details
-
Input Voltage:
-
380Vac
-
Output Voltage:
-
380Vac
-
Output Current:
-
76A
-
Output Frequency:
-
49Hz~51Hz /59Hz~61Hz
-
Output Type:
-
MPPT
-
Inverter Efficiency:
-
96%
-
Application:
-
On-Grid Wind System
-
Rated input power:
-
50kW
-
Maximum input power:
-
75kW
-
MPPT voltage range:
-
100Vac~450Vac
-
Case protection class:
-
IP65
-
Insulation resistance:
-
≥20MΩ
-
Product reference size:
-
1000*1450*440mm
-
Product reference weight:
-
240kg
-
Reference weight of unloading box:
-
205kg
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ELEGE
-
Model Number:
-
EL-OGI
-
Input Voltage:
-
380Vac
-
Output Voltage:
-
380Vac
-
Output Current:
-
76A
-
Output Frequency:
-
49Hz~51Hz /59Hz~61Hz
-
Output Type:
-
MPPT
-
Inverter Efficiency:
-
96%
-
Application:
-
On-Grid Wind System
-
Rated input power:
-
50kW
-
Maximum input power:
-
75kW
-
MPPT voltage range:
-
100Vac~450Vac
-
Case protection class:
-
IP65
-
Insulation resistance:
-
≥20MΩ
-
Product reference size:
-
1000*1450*440mm
-
Product reference weight:
-
240kg
-
Reference weight of unloading box:
-
205kg

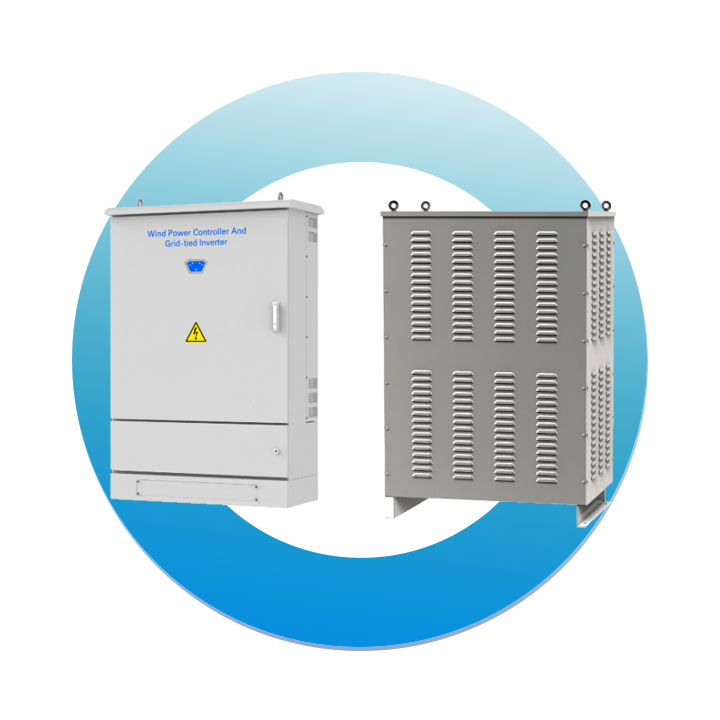

Wind power system 3kw 5kw 10kw 20kw 50kw grid-connected wind generator inverter
|
Model number
|
WWGIT500
|
|
Wind power input
|
|
|
Rated input power
|
50kw
|
|
Maximum input power
|
75kw
|
|
Rated input voltage
|
380Vac
|
|
MPPT voltage range
|
100Vac~450Vac
|
|
Rated input current
|
76A
|
|
Maximum input current
|
114A
|
|
Cut-in speed
|
60RPM
|
|
Power tracking
|
Power tracking curves can be set at 30 points
|
|
Speed limiting control
|
Electromagnetic speed limiting
|
|
Grid phase number
|
Three phase
|
|
Rated output power
|
50kW
|
|
Maximum output power
|
55kW
|
|
Rated network voltage
|
380Vac
|
|
Grid voltage range
|
85%~110% of the rated power grid voltage
|
|
Rated network frequency
|
50Hz/60Hz adaptive
|
|
Network frequency range
|
49HZ~51HZ/59HZ~61HZ
|
|
Rated output current
|
76A
|
|
Rated power factor
|
> 0.98
|
|
Total harmonic distortion rate of current
|
<5%(at rated power)
|
Our advantages:
1. Quality control:most of products have CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
1，Are you a factory?
--We are the factory/manufacturer so we can control production costs and then sell at the lowest price.
2,Controllable quality
--All products will be produced in our factory so we can show you every detail of the production and let you check the quality of the order.
3. Multiple payment methods
-- We accept online Alipay, bank transfer,Paypal ,LC, Western union etc.
4,Various forms of cooperation
--We are not only offer you our products, if it is needed, we could be your partner and design product according to your requirement. Our factory is your factory!
5. perfect after-sales service -
--As a manufacturer of wind turbine and generator products for over 4 years,we are very experiences to dealing all kinds of problems. So whatever happens,we will solve it at the first time.
