The toggle clamp is equipped with safety lock. The integrated safety lock will automatically locked when the clamp is closed. To unlock, manually pnss the safety lock rod to release. It can effectively prevent the clamp from being released accidentally due to strong vibration or collision
Iron or stainless steel material has strong corrosion resistance
Various specifications and sizes are available
Technical Parameter
Item No.
Material
Surface Finishing
Weight
3101-180S
Iron
Blue Zinc Plating
250g
304 Stainless Steel
Vibratory polishing
243g
Product Use Diagram
Detail Display
Process Design

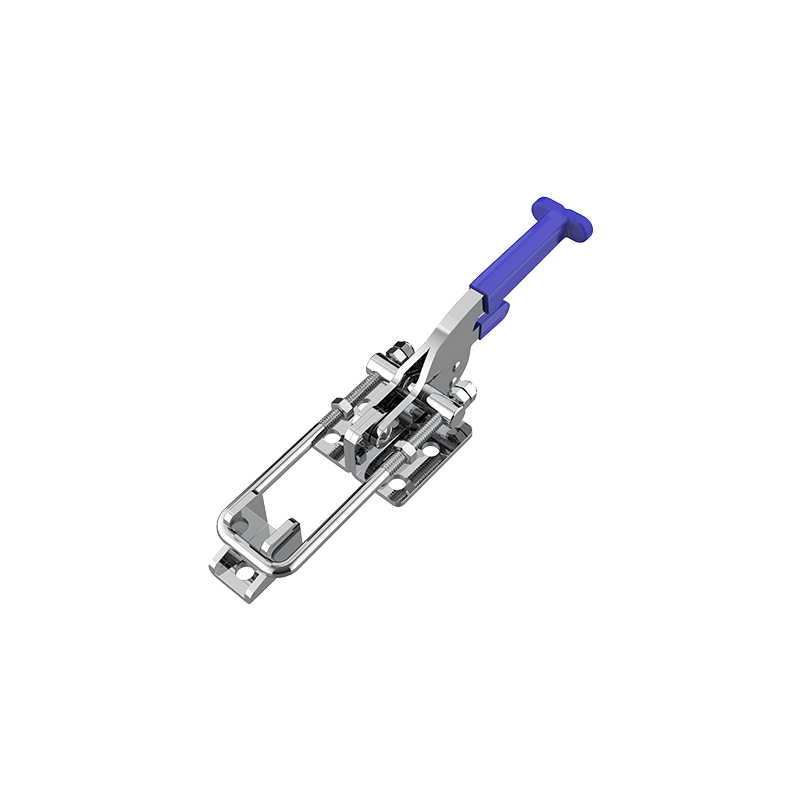

The latch clamp is designed with a U-style bolt threaded draw arm and with PVC insulating rubber grip. The adjustable draw arm allows to change the length and tightness as required
Open-close Design
Latch-style toggle clamp designed. Fit the draw arm over a latch plate, hold down to clamp, lift to release. Built-in safety lock function, the holding capacity is 318kg
Base Design
Flanged base
design
Draw Latch Keeper Design
Movable draw latch, easy to mount from different angles
