Quick Details
-
Place of Origin:
-
Anhui, China
-
Product Name:
-
RF Passive Diplexer Combiner
-
In-band Ripple:
-
≤0.3dB
-
Insertion Loss:
-
≤0.4dB
-
VSWR:
-
≤1.3
-
Power Rating:
-
100W
-
PIM3:
-
≤-150dBc@43dBmX2
-
Connector:
-
N Female
-
Impedance:
-
50ohm
-
Operating Temperature:
-
-25-+55℃
-
Finish:
-
Black Paint
Quick Details
-
Brand Name:
-
OEM/ODM
-
Type:
-
RF Diplexer
-
Model Number:
-
HT.MLX-0822-21114
-
Place of Origin:
-
Anhui, China
-
Product Name:
-
RF Passive Diplexer Combiner
-
In-band Ripple:
-
≤0.3dB
-
Insertion Loss:
-
≤0.4dB
-
VSWR:
-
≤1.3
-
Power Rating:
-
100W
-
PIM3:
-
≤-150dBc@43dBmX2
-
Connector:
-
N Female
-
Impedance:
-
50ohm
-
Operating Temperature:
-
-25-+55℃
-
Finish:
-
Black Paint

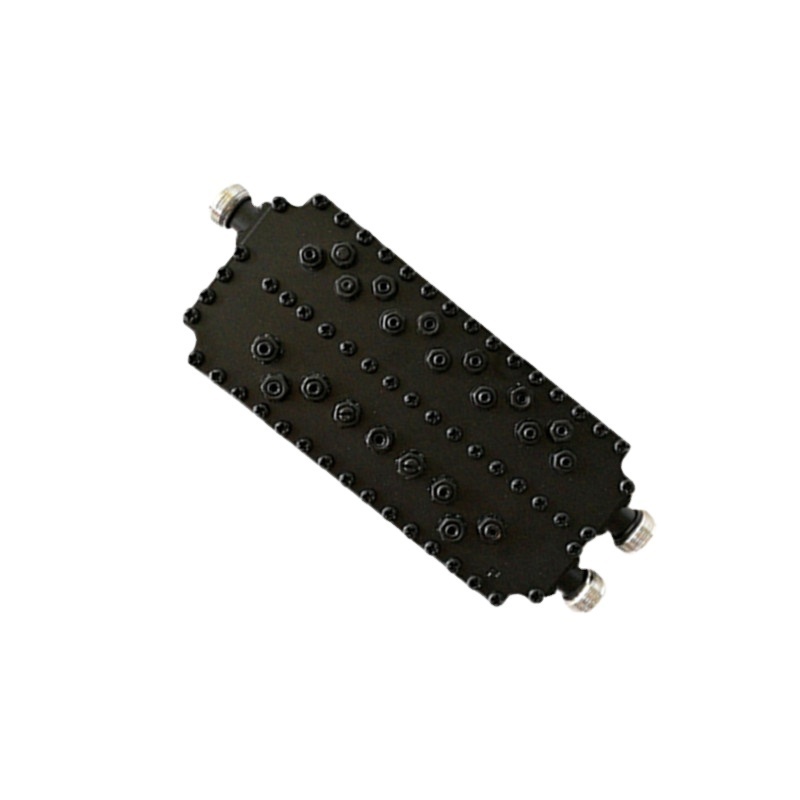

RF Passive Diplexer Combiner
Diplexer and Triplexer are generally used in the transmitter. It is mainly applied to the power combing system on the repeater or base station, and it can also be used in the indoor distribution system.
|
Frequency Range
|
800-960 / 1710-2170MHz
|
|
|
|
|||
|
VSWR
|
≤1.3:1
|
|
|
|
|||
|
Insertion Loss
|
≤0.4dB
|
|
|
|
|||
|
In-band Ripple
|
≤0.3dB
|
|
|
|
|||
|
Outband Rejection
|
≥80dB @ 1710-2170MHz / ≥80dB @ 800-960MHz
|
|
|
|
|||
|
Power Rating
|
100W
|
|
|
|
|||
|
PIM3
|
≤-150 dBc @2x43dBm
|
|
|
|
|||
|
Impedance
|
50Ω
|
|
|
|
|||
|
Connector Type
|
N-Female
|
|
|
|
|||
|
Operating Temperature
|
-25~+55℃
|
|
|
|
|||
|
Finish
|
Black Paint
|
|
|
|
|||
|
Application
|
For Indoor Use
|
|
|
|
|||
HeFei HTMICROWAVE Technology CO.,LTD
HeFei HTMICROWAVE Technology CO.,LTD is a new and high-tech enterprise which focus on Microwave Technology Research, RF Microwave Component and System Industry Development. We are a global and professional manufacturer and system integrator provider for Wireless Network Coverage and optimization solutions.
Our main products are IBS/DAS and Optical Fiber products, Power Splitter, Directional Coupler, 3dB Hybrid Coupler, Hybrid Combiner, RF Coaxial Attenuator, Dummy Load, Cable Assembly, Connector and Adapter, RF Antenna, Filter, Duplexer and Triplexer, PLC Splitter, Patch Cord,etc. Customers' designs (OEM / ODM) are also available.
With years of export experience along with excellent quality, advanced service and competitive prices, our company has won numerous customers’ trust and support. We welcome worldwide customers to contact us for further discussion and cooperation.
International Exhibitions:
EUMW 2023
CommunicAsia 2023(Singapore)
EUMW 2023
Packaging Details
1. Each product packed in one single box;
2. 50pcs(depends on different products) packed into one standard exporting carton;
3. 30 cartons packed into an environmental pallet.
|
