Thermocouple Wire Series(K,N,E,J,T,B,R,S)
There are multiple types and grades of thermocouple wire. Each type of thermocople wire has a specific combination of metal
alloys. This combination is what defines the type of thermocouple. Thermocouple grade wire is used to manufacture thermocouple
probes. Thermocouple grade wire is normally used for the junction and inside the stem sheath.
- Product Details
- {{item.text}}
Quick Details
-
Insulation Material:
-
PFA
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DZX
-
Model Number:
-
Type K Type J
-
Delivery time:
-
7-20 Days
-
Certificate:
-
ISO,RoHS
-
Insulation:
-
Glass fiber,PTFE,PVC
-
Standard:
-
IEC 60584
-
Conductor:
-
NICr,NiSi,Copper,Iron,Konstantant
Quick Details
-
Application:
-
temperature measurement
-
Conductor Material:
-
fe cu ni
-
Conductor Type:
-
Solid
-
Insulation Material:
-
PFA
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DZX
-
Model Number:
-
Type K Type J
-
Delivery time:
-
7-20 Days
-
Certificate:
-
ISO,RoHS
-
Insulation:
-
Glass fiber,PTFE,PVC
-
Standard:
-
IEC 60584
-
Conductor:
-
NICr,NiSi,Copper,Iron,Konstantant
Products Description
Specification

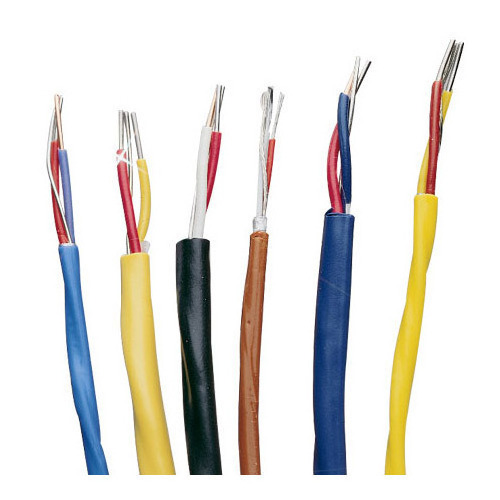

KPX/KNX K type thermocouple extension compensating wire cable
In industrial installations where the recorder and control instruments are located remotely from the thermocouples, compensating cable or extension Cable must be used between the thermocouple and instrument to reduce costs.
Extension cables use the actual thermocouple materials. This is achieved by using cheaper insulations, wider tolerance alloys and thinner conductors. They are produced in multi-stranded forms for ease of installation. Calibration: NX , KX , EX , JX , TXCompensating cables use completely different alloys that happen to exhibit very similar thermo-electric properties up to a limited temperature (usually 250 °C ).
Extension cables use the actual thermocouple materials. This is achieved by using cheaper insulations, wider tolerance alloys and thinner conductors. They are produced in multi-stranded forms for ease of installation. Calibration: NX , KX , EX , JX , TXCompensating cables use completely different alloys that happen to exhibit very similar thermo-electric properties up to a limited temperature (usually 250 °C ).
Features:
1) Continuous use up to 200℃
2) Short term use up to 250℃
3) Excellent heat, chemical, abrasion and moisture resistance
4) Provides accurate temperature measure with high temperature stability
5) Calibration test report is available
Model explanation:
1 Calibration: Type K
2 Conductor insulation: FEP
3 Jacket insulation: FEP
4 Outer shield: Stainless steel braiding
1) Continuous use up to 200℃
2) Short term use up to 250℃
3) Excellent heat, chemical, abrasion and moisture resistance
4) Provides accurate temperature measure with high temperature stability
5) Calibration test report is available
Model explanation:
1 Calibration: Type K
2 Conductor insulation: FEP
3 Jacket insulation: FEP
4 Outer shield: Stainless steel braiding
|
Code
|
Wire component of the thermocouple
|
|
|
|
|
+Positive leg
|
-Negative leg
|
|
|
N
|
Ni-cr-si(NP)
|
Ni-si-magnesium(NN)
|
|
|
K
|
Ni-Cr(KP)
|
Ni-Al(Si)(KN)
|
|
|
E
|
Ni-Cr(EP)
|
Cu-Ni
|
|
|
J
|
Iron(JP)
|
Cu-Ni
|
|
|
T
|
Copper (TP)
|
Cu-Ni
|
|
|
B
|
Platinum Rhodium -30%
|
Platinum Rhodium-6%
|
|
|
R
|
Platinum Rhodium -13%
|
Platinum
|
|
|
S
|
Platinum Rhodium -10%
|
Platinum
|
|
|
ASTM
|
(American Society for testing and Materials) E 230
|
|
ANSI
|
(American National Standard Insitute) MC 96.1
|
|
IEC
|
(European Standard by the International Electrotechnical Commision 584)-1/2/3
|
|
DIN
|
(Deutsche Industrie Normen) EN 60584-1/2
|
|
BS
|
(British Standards)4937.1041, EN 60584-1/2
|
|
NF
|
(Norme Francaise) EN 60584-1/2-NFC 42323-NFC 42324
|
|
JIS
|
(Japanese Industrial Standards) C 1602-C 1610
|
|
GOST
|
(unification of the Russian Specifications) 3044
|
