Quick Details
-
Brand Name:
-
SENTEC
-
Model Number:
-
FMT810
-
Product name:
-
turbine flow meter,liquid turbine flowmeter
-
Measuring medium:
-
Gas/air/nitrogen/rare gas, etc.
-
Accuracy:
-
±1%R, ±0.5%R, ±0.2%R (special customized)
-
Caliber range:
-
DN20 ~ DN300
-
Working temperature:
-
medium -20 ° C ~ +120 ° C; ambient -20 ° C ~ +50 ° C
-
Connection method:
-
thread (≤DN50), flange (≥DN65)
-
Output signal:
-
4~20mA signal, pulse signal, frequency, control level
-
Sensor material:
-
304 stainless steel, 316 (L) stainless steel, etc.
-
Protection class:
-
IP65 (common type), IP68 (special customized)
-
Keywords:
-
turbine flowmeter,liquid turbine flowmeter
Quick Details
-
Type:
-
Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters, Variable Area Water Flowmeters
-
Warranty:
-
12 month
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
FMT810
-
Product name:
-
turbine flow meter,liquid turbine flowmeter
-
Measuring medium:
-
Gas/air/nitrogen/rare gas, etc.
-
Accuracy:
-
±1%R, ±0.5%R, ±0.2%R (special customized)
-
Caliber range:
-
DN20 ~ DN300
-
Working temperature:
-
medium -20 ° C ~ +120 ° C; ambient -20 ° C ~ +50 ° C
-
Connection method:
-
thread (≤DN50), flange (≥DN65)
-
Output signal:
-
4~20mA signal, pulse signal, frequency, control level
-
Sensor material:
-
304 stainless steel, 316 (L) stainless steel, etc.
-
Protection class:
-
IP65 (common type), IP68 (special customized)
-
Keywords:
-
turbine flowmeter,liquid turbine flowmeter

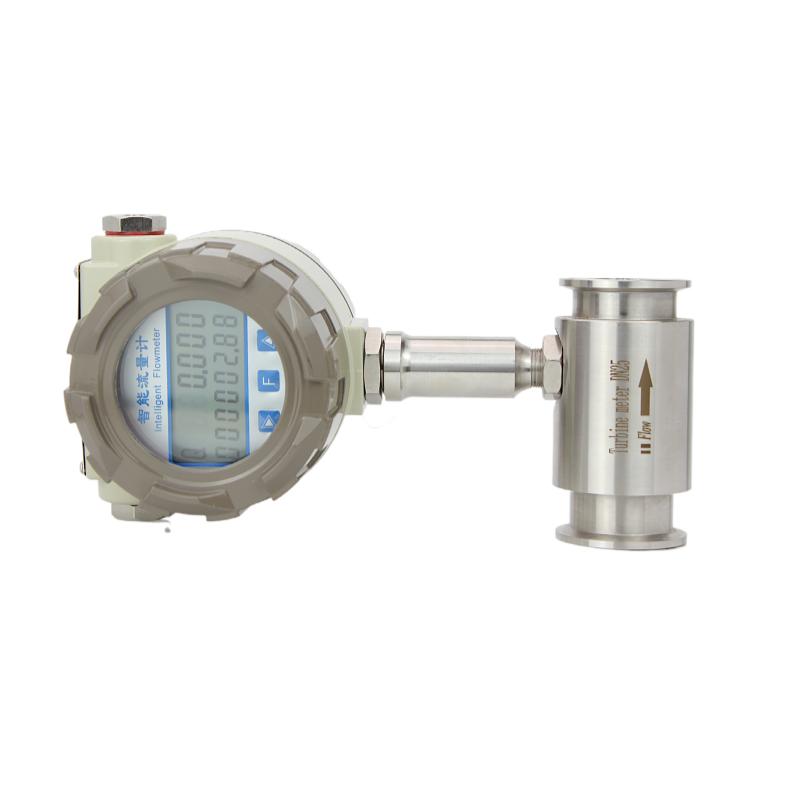

FMT810 intelligent liquid turbine flowmeter is a kind of precision flow measuring instrument. It can be used to measure the flow and totality of liquid with the corresponding flow metering instrument. It has simple structure, light weight, high precision and complex. A new generation of turbine flowmeters with good characteristics, responsiveness, easy installation and maintenance. Widely used in metallurgy, chemical, petroleum, urban construction, environmental protection, food, metallurgy, water supply, paper and other fields, it is an ideal instrument for flow metering and energy saving. High-precision measurement of the volumetric flow of liquids such as water, tap water, diesel, gasoline and lower viscosity crude oil.
|
Measure medium
|
water, oil, alcohol and other liquids (viscosity <5x10-6M2/S)
|
|
Size
|
DN4 ~ DN200 (DN4 ~ 80 common threaded connection)
|
|
Accuracy
|
±1%R, ±0.5%R, ±0.2%R (special customized)
|
|
Working environment
|
-20~60°C, 5%~90%RH
|
|
Connection method
|
External/internal thread, flange, clamp
|
|
Communication
|
RS485 communication, MODBUS-RTU (smart type)
|
|
Output signal
|
Square wave pulse (voltage type), 4-20MA, 0-5V (smart type)
|
|
Body material
|
Stainless steel 1CR18NI9TI, 316L (hygienic)
|
|
Protection class
|
IP65 (common type), IP68 (special customized)
|
Certifications
Packing&Shipping
Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
4-20ma Pulse Stainless Food Grade Hot Water Diesel Turbine Flow Meter
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
4-20ma Pulse Stainless Food Grade Hot Water Diesel Turbine Flow Meter
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
4-20ma Pulse Stainless Food Grade Hot Water Diesel Turbine Flow Meter
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
4-20ma Pulse Stainless Food Grade Hot Water Diesel Turbine Flow Meter
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
4-20ma Pulse Stainless Food Grade Hot Water Diesel Turbine Flow Meter
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
4-20ma Pulse Stainless Food Grade Hot Water Diesel Turbine Flow Meter
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
The specific price is subject to the parameters, please contact us for the quotation
