Quick Details
-
Warranty:
-
1years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUYI
-
Model Number:
-
DN65-4000
-
Product name:
-
Universal Coupling Fitting Flange Adapter Steel PVC Flange Adapter
-
Size:
-
DN65-4000
-
Material of gaskets:
-
EPDM
-
Material of bolts:
-
Carbon steel galvanized
-
Material of body:
-
Carbon steel
-
Pipe external size:
-
76-4020 mm
-
Installation length:
-
118-300mm
-
Working pressure:
-
0.6-25Mpa
-
Application:
-
Pipe Lines Connect
-
MOQ:
-
1
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
Round
-
Warranty:
-
1years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUYI
-
Model Number:
-
DN65-4000
-
Product name:
-
Universal Coupling Fitting Flange Adapter Steel PVC Flange Adapter
-
Size:
-
DN65-4000
-
Material of gaskets:
-
EPDM
-
Material of bolts:
-
Carbon steel galvanized
-
Material of body:
-
Carbon steel
-
Pipe external size:
-
76-4020 mm
-
Installation length:
-
118-300mm
-
Working pressure:
-
0.6-25Mpa
-
Application:
-
Pipe Lines Connect
-
MOQ:
-
1
universal flange adapter for ductile iron pipe, adapter flange
Flanged Adaptors are designed for pipelines , As a wide tolerance system.It will fit most standard pipe materials and therefore dramatically reducesthe number of dedicated Flanged Adaptors which need to be stocked for maintenance purposes.When connecting PE pipes , It is important that pipe inserts are fitted to the PE pipes .
|

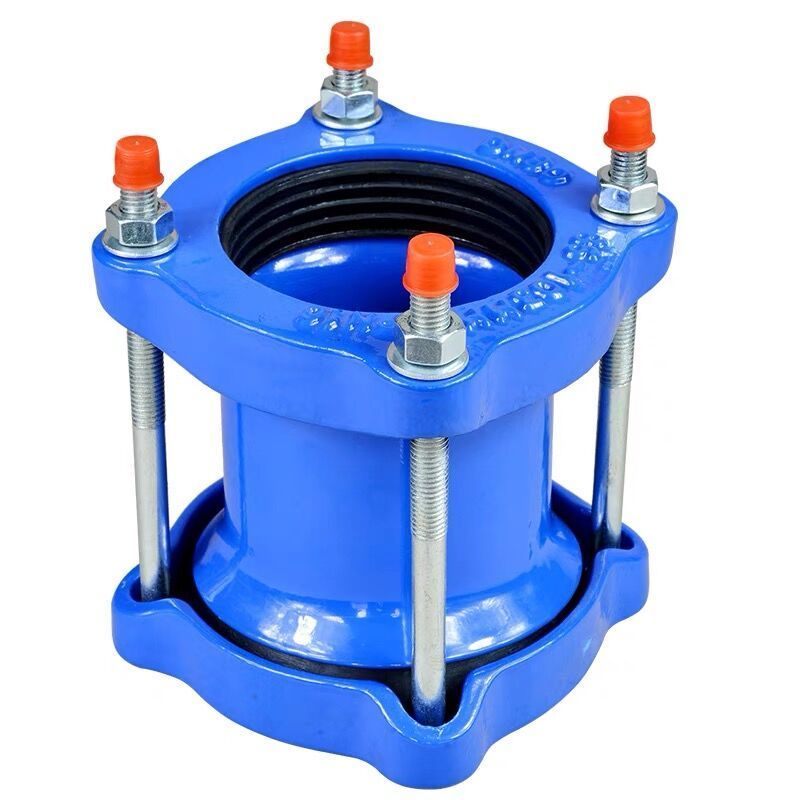

Structure and material of dresser coupling
|
|
|
|
|||
|
TIME
|
DESCRIPTION
|
MATERIAL
|
QUANTITY
|
|||
|
1
|
END RING
|
GJS500-7
|
1
|
|||
|
2
|
GASKET
|
EPDM
|
1
|
|||
|
3
|
BOLT
|
GD 4.8
|
N
|
|||
|
4
|
BODY
|
GJS500-7
|
1
|
|||
|
5
|
PLASTIC CAP
|
PLASTIC
|
N
|
|||
|
Main connecting dimension of carbon steel pipe flange adapter
|
|
|
|
|
|
|||||
|
DN
|
RANGE(MM)
|
L(MM)
|
D(MM)
|
BOLT
|
|
|||||
|
|
|
|
|
SIZE
|
QTY
|
|||||
|
50
|
59-72
|
75
|
165
|
M12*130
|
2
|
|||||
|
65
|
72-85
|
75
|
185
|
M12*130
|
2
|
|||||
|
80
|
88-103
|
76
|
185
|
M12*130
|
4
|
|||||
|
100
|
93-117
|
78
|
218
|
M12*130
|
4
|
|||||
|
125
|
125-140
|
78
|
250
|
M12*130
|
4
|
|||||
|
150
|
155-175
|
80
|
272
|
M12*130
|
4
|
|||||
|
200
|
218-235
|
85
|
335
|
M12*130
|
4
|
|||||
|
250
|
265-280
|
90
|
405
|
M12*130
|
6
|
|||||
|
300
|
315-332
|
90
|
460
|
M12*130
|
6
|
|||||
|
350
|
351-368
|
110
|
510
|
M16*180
|
8
|
|||||
|
400
|
400-429
|
110
|
580
|
M16*180
|
8
|
|||||
|
450
|
455-472
|
115
|
640
|
M16*180
|
10
|
|||||
|
500
|
500-532
|
120
|
690
|
M16*180
|
10
|
|||||
|
600
|
600-630
|
130
|
820
|
M16*180
|
10
|
|||||
Advantages of flange adapter:
1. This product is suitable for connecting with pipe flanges on both sides, without welding.The installation is simple, the valve disassembly is convenient, and it is beneficial to the regular maintenance of the pipeline.
2.The surface of the product is finely treated, without burrs, the welding seam is natural, the appearance is beautiful, and the
quality and beauty are together.
3. Wide range dresser coupling as a wide tolerance system, it is suitable for most standard pipes of different specifications and has a wide range of applications.
4.The bolt buffers the internal pressure to a certain extent, avoids damage caused by external force factors such as twisting and bending, and enhances the safety and service life of the pipeline system.
Henan Yuyi Industry Co, Ltd is a professional factory on Rubber Joint and Shock Absorbers development, production, sales and customized design with more than 15years experience, which is located at Economic Development Zone Xicun Village, Gongyi Zhengzhou City, Henan Province, China.
We are specialized in manufacturing Rubber/Metal Expansion Joint, Metal Braided Hose, Metal Bellows, Spring Mountain Shock Absorber and other pipe products. With fully automatic production line, high-tech equipment, highly qualified engineer and personnel. Which are capable to provide the best top-quality in the international market as Australia, USA, Europe, Middle-east and Southeast Asia.
"Solidarity, Development'' as our principle, "Surviving by Quality, Developing by Honesty'' as our tenet. We sincerely look forward to building long-term good business relation with you and warmly welcome to join us.
FAQ
1. Where is your factory?
Henan Yuyi Industry Co., Ltd. based in Henan, China, start from 2016,We supply many different standards professional products for more than 60 countries and areas in the world.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
We had many professional inspections and certificates. We had passed inspections of CE, NSF, SGS, and get the certificates of ISO 9001, ISO 14001, OHSAS 18001, and WRAS, and so on.
3.Can you provide drawings and technical data?
A:Yes, our professional technical department will design and provide drawings and technical data.
4.what can you buy from us?
Rubber Expansion Joint,Metal Expansion Joint,Metal Braided hose,Bellow Expansion Joint,Spring Mount Vibration Isolater and so on.
5. why should you buy from us not from other suppliers?
We are specialized in manufacturing Rubber/Metal Expansion Joint, Metal Braided Hose, Metal Bellows, Spring Mountain Shock Absorber and other pipe products. With fully automatic production line, high-tech equipment, highly qualified engineer and personnel.
6.Do you provide samples? Is it free or charged?
Yes, we can offer sample free but shipping charges covered by customer.
7.Is quality warranty supported？
Free warranty for 3 years, support third-party testing
8. what services can we provide?
Accepted Delivery Terms: FOB,CIF,FCA,DDP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
