Quick Details
-
Product name:
-
Circuit Tester Underground Wire Locator
-
Power:
-
Electronic
-
Power supply:
-
9V Alkaline battery
-
Material:
-
ABS+electric parts
-
Color:
-
Yellow
-
Length range:
-
up to 1000 feet
-
Depth range:
-
0.8m
-
Customized:
-
Yes
-
Tracking type:
-
Underground, Buried wires and Other Hidden wires
-
Application:
-
electrical wire,CATV coax,telephone drops or irrigation control ires
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NOYAFA
-
Product name:
-
Circuit Tester Underground Wire Locator
-
Power:
-
Electronic
-
Power supply:
-
9V Alkaline battery
-
Material:
-
ABS+electric parts
-
Color:
-
Yellow
-
Length range:
-
up to 1000 feet
-
Depth range:
-
0.8m
-
Customized:
-
Yes
-
Tracking type:
-
Underground, Buried wires and Other Hidden wires
-
Application:
-
electrical wire,CATV coax,telephone drops or irrigation control ires
Products Description
Circuit Tester Underground Wire Locator NF-816 Underground Cable Detection Instrument Concealed Wiring Line Finder
Main function
1. Locate the path of non-energized wires behind walls and underground 2.Capable of locating a specific circuit breaker,pinpointing wires before drilling and verifying dig sites underground.
3. The alligator clip leads are available to connect the transmitter to electrical wire,CATV coax,telephone drops,irrigation
control ires or metallic pipes
4. The effective range is up to 3 feet deep and up to 1000 feet in length.
3. The alligator clip leads are available to connect the transmitter to electrical wire,CATV coax,telephone drops,irrigation
control ires or metallic pipes
4. The effective range is up to 3 feet deep and up to 1000 feet in length.
Details Images
Specification
|

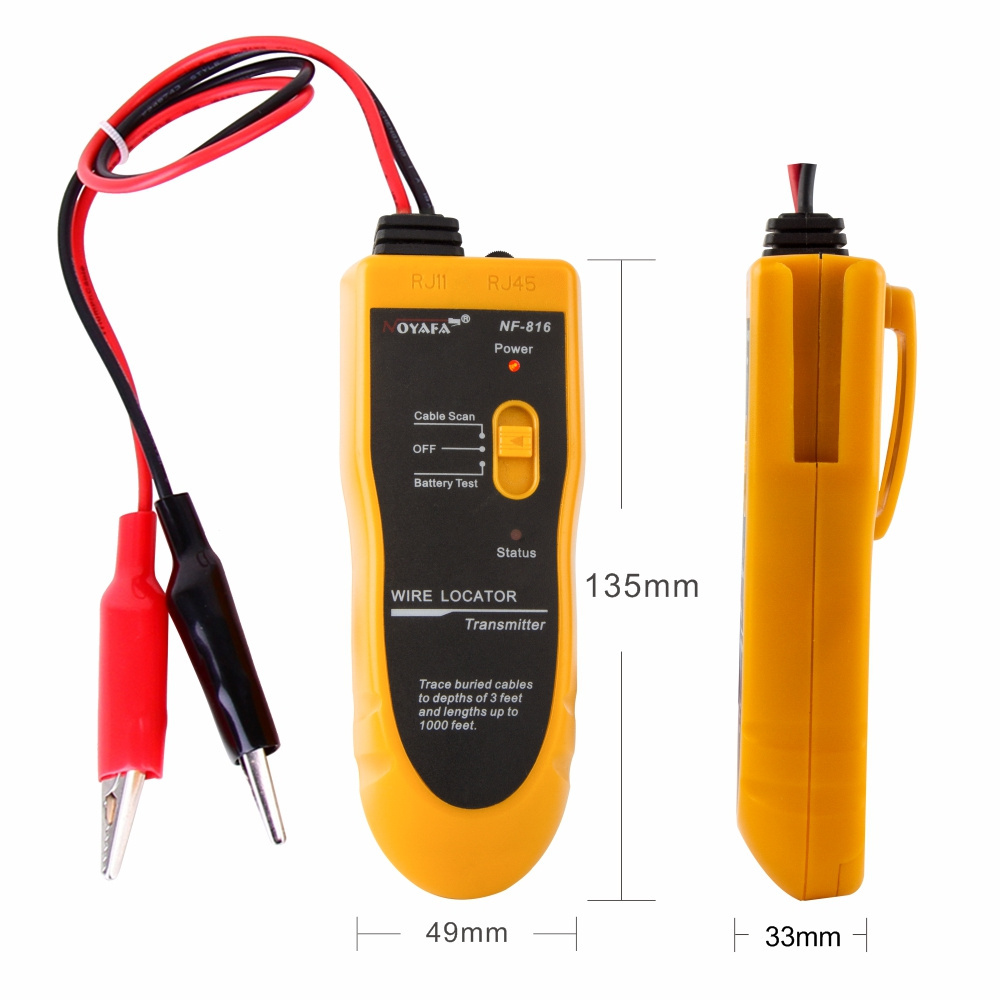

NF-816 Transmitter specifications
|
|
|
|
Tone frequency
|
200kHz
|
|
|
The Max length distance
|
500m
|
|
|
The Max depth distance
|
50cm
|
|
|
The Max. working current
|
Less than 70mA
|
|
|
Max. signal voltage
|
15Vp-p
|
|
|
Signal display
|
Tone
|
|
|
Battery type
|
DC9.0V（NEDA 1604/6F22) x 1pc
|
|
|
Dimensions (LxWxD)
|
49 x 135 x 33mm
|
|
|
NF-816 Receiver specifications
|
|
|
|
Frequency
|
200kHz
|
|
|
The Max. working current
|
Less than 70mA
|
|
|
Earphone jack
|
1
|
|
|
Battery type
|
DC9.0V（NEDA 1604/6F22) x 1pc
|
|
|
Dimensions (LxWxD)
|
43 x 168 x 27mm
|
|
Product packaging
