(1) Remove oil and TSS.
(2) Separate small particles and algae in groundwater.
(3) Recover valuable products in industrial sewage such as paper pulp.
(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
- Product Details
- {{item.text}}
Quick Details
-
Size:
-
2800*2100*2200mm
-
Power:
-
3kw
-
Weight (KG):
-
5000 kg
-
Name:
-
Dissolved air flotation machine
-
Material:
-
no/plywood packing, Carbon Steel/stainless steel
-
Function:
-
Remove oil and grease
-
Color:
-
blue/green/customized by clients
-
Usage:
-
industry water treatment
-
Capacity:
-
1-100m3/hour sewage
-
Voltage:
-
220V / 380V
-
Service time:
-
10 years
-
Certification:
-
ISO9001/ISO14001/OHSAAS18001
-
After-sales Service Provided:
-
Online support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TIANLANG
-
Weight:
-
4000kg
-
Size:
-
2800*2100*2200mm
-
Power:
-
3kw
-
Weight (KG):
-
5000 kg
-
Name:
-
Dissolved air flotation machine
-
Material:
-
no/plywood packing, Carbon Steel/stainless steel
-
Function:
-
Remove oil and grease
-
Color:
-
blue/green/customized by clients
-
Usage:
-
industry water treatment
-
Capacity:
-
1-100m3/hour sewage
-
Voltage:
-
220V / 380V
-
Service time:
-
10 years
-
Certification:
-
ISO9001/ISO14001/OHSAAS18001
-
After-sales Service Provided:
-
Online support

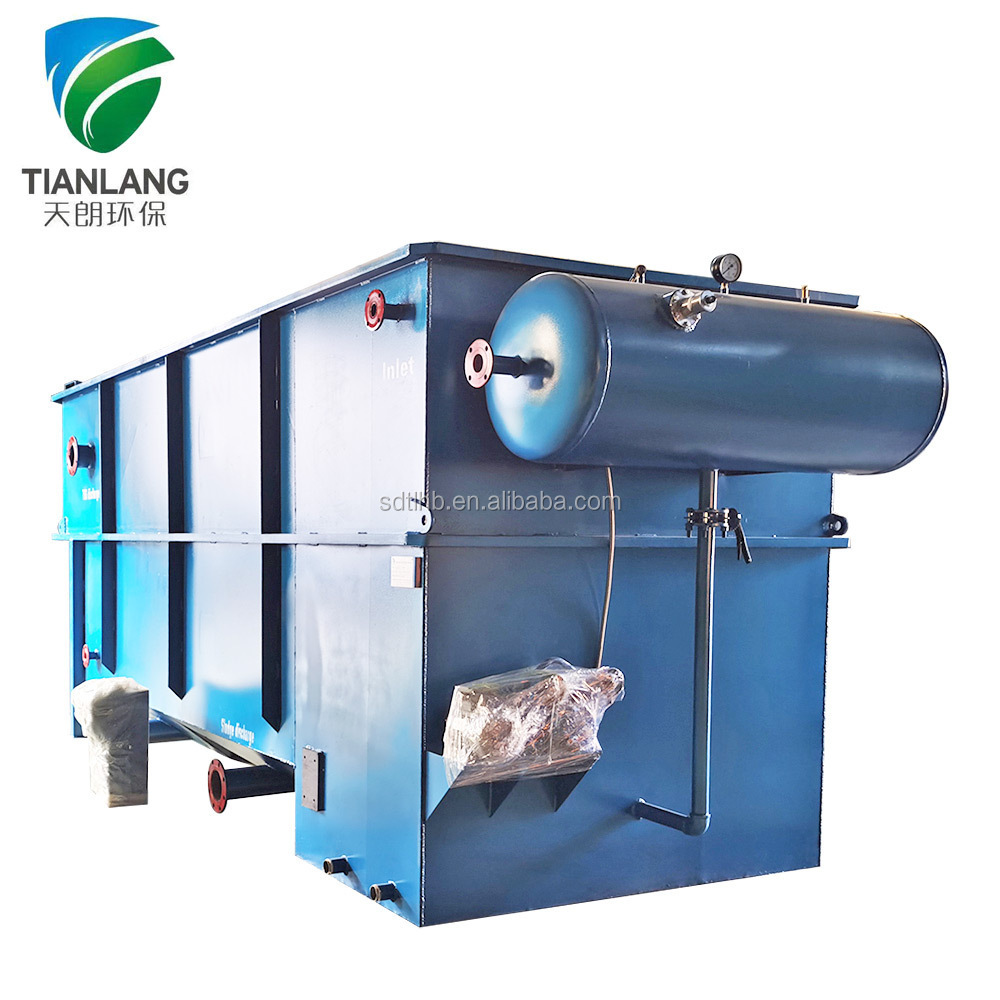

Product Description
DAF dissolved air flotation machine is a
water treatment
process that clarifies
wastewater
(or other waters) by the removal of suspended matter such as oil or solids. The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at
atmospheric pressure
in a flotation tank basin. The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.
Application
-
Advantages
(1) Large capacity, high efficiency and small occupying space.
(2) Compact structure, easy operation and maintenance.
(3) Silt expansion elimination.
(4) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water. Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.
(5) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and more algae.
(2) Compact structure, easy operation and maintenance.
(3) Silt expansion elimination.
(4) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water. Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.
(5) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and more algae.
Detailed Images
Dissolved air flotation is very widely used in treating the industrial
wastewater
effluents
from
oil refineries
,
petrochemical
and
chemical plants , natural gas processing plants , paper mills, general water treatment and similar industrial facilities.
Size Information
Technical flow chart
|
Model
|
Capacity(m3/)
|
Motor power(kw)
|
Scraper power(kw)
|
Air compressor power(kw)
|
Dissolved air tank
|
Overall size(mm)
|
|
TLYW-5
|
4-5
|
3
|
0.5
|
0.75
|
Φ400*1000
|
2800*2100*2200
|
|
TLYW-10
|
8-10
|
3
|
0.5
|
0.75
|
Φ500*1512
|
3700*2100*2200
|
|
TLYW-15
|
10-15
|
4
|
0.5
|
1.5
|
Φ500*1512
|
4500*2200*2300
|
|
TLYW-20
|
15-20
|
5.5
|
0.5
|
1.5
|
Φ500*1512
|
4650*2400*2300
|
|
TLYW-30
|
20-30
|
5.5
|
0.75
|
1.5
|
Φ600*1880
|
5840*2700*2300
|
|
TLYW-40
|
35-40
|
7.5
|
0.75
|
1.5
|
Φ600*1880
|
6800*2700*2300
|
|
TLYW-50
|
45-50
|
7.5
|
0.75
|
2.2
|
Φ600*1880
|
7500*2900*2300
|
|
TLYW-60
|
55-60
|
7.5
|
1.1
|
2.2
|
Φ600*1880
|
8500*2900*2300
|
|
TLYW-70
|
65-70
|
11
|
1.1
|
3
|
Φ650*1800
|
9000*2900*2300
|
|
TLYW-80
|
75-80
|
11
|
1.1
|
3
|
Φ650*1800
|
10800*3000*2500
|
|
TLYW-100
|
95-100
|
15
|
1.5
|
4
|
Φ700*1900
|
11500*3000*2500
|
Working principle
Based on different water source and different water quality, The feed water to the DAF float tank is often (but not always) dosed with Flocculant and coagulant (such as PAC and PAM) to coagulate the colloidal particles and a
flocculant
to conglomerate the particles into bigger clusters .
Packing&Shipping
After Sales Service
Pre-Sales Service
* requiry and techical support.
* free to help clients design the technical solution and recommand you the suitable model air flotation machine.
*welconme you to View our Factory.
After-Sales Service
*
Installation with help of installation manual, drawings .
* Engineers available to Guide installation and debugging machinery overseas.
Company Introduction
Shandong Tianlang Environmental Protection Technology Co., Ltd. is a high-tech enterprise integrating environmental equipment production and R&D. The company is located in Zhucheng City, Shandong Province, with beautiful scenery. It has convenient transportation because it nears Qingdao and Rizhao seaport.
Covering an area of 80,000 m2, the company has advanced production line and production technology. By absorbing the advanced manufacturing concepts and sewage treatment experience of the same industry at home and abroad, it has cooperated with many well-known sewage treatment experts and universities. It has Strong non-standard design and manufacturing capabilities, perfect production testing equipment, complete manufacturing specifications, stable and reliable product quality.
As a production and research enterprise for environmental protection equipment, the company mainly develops and produces sewage treatment equipment, sludge dewatering equipment, waste gas treatment equipment, manure fermentation equipment and waste incinerator. Products are widely used in agriculture, aquaculture, petroleum, chemical, paper, food, starch, metallurgy, slaughter, printing and dyeing and other fields. There are dissolved air flotation machine, integrated sewage treatment equipment, MBR bioreactor, mechanical filter, disinfection equipment; belt filter press, plate and frame filter press, screw dewatering machine and waste incinerator nearly 100 kinds of products and accessories. trusted by the majority of users, it become the backbone of China's environmental protection industry.
In the face of fierce competition in the market, our company adheres to the business philosophy of “"Focus on quality, keen on innovation”, continuously strengthens the product research and development, so that the product has a broader market.
Looking forward to the future, we will continue to provide more high-quality products and prompt and sincere service to customers, and supply environmental protection solutions to you.
FAQ
Q:How to buy your idea products?
A:You can provide us your sewage sources,sewage quality ( COD, BOD, SS) , flow rate and ground area (connect us for more details).
Q:How to pay?
A:TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
Q:What is the delivery time?
A:It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
Q:How to pack the products?
A:We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
Q:How to keep your equipments from corrosion?
A:We use the world-famous paint, like epoxy-coal tar pitch etc. What's more, we paint strictly according to the standard process.
Q:How to install after the equipments arriving destination?
A:We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.
