Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
300 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
1.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MITECH
-
Voltage:
-
AC220V/380V/50HZ
-
Dimension(L*W*H):
-
950*850*1600mm
-
Weight (KG):
-
200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Working area:
-
400*400*120mm
-
Power for spindle:
-
0.8kw/1.5kw /2.2 kw spindle
-
Cooling spindle:
-
watercooling spindle
-
Motor:
-
Stepper motor
Quick Details
-
Working Table Size(mm):
-
400*400mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
300 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
1.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MITECH
-
Voltage:
-
AC220V/380V/50HZ
-
Dimension(L*W*H):
-
950*850*1600mm
-
Weight (KG):
-
200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Working area:
-
400*400*120mm
-
Power for spindle:
-
0.8kw/1.5kw /2.2 kw spindle
-
Cooling spindle:
-
watercooling spindle
-
Motor:
-
Stepper motor

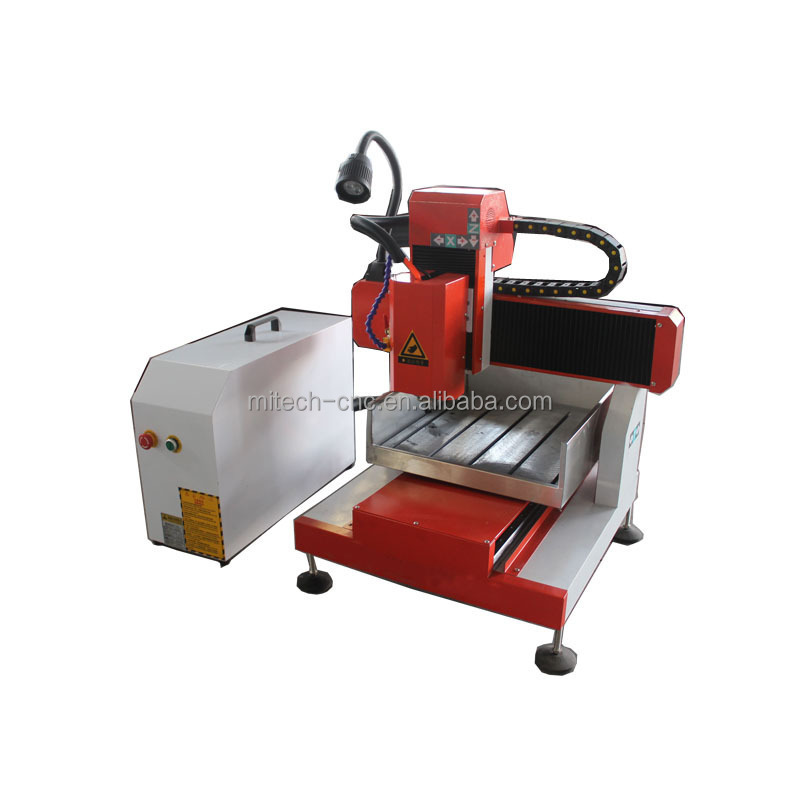

Perfect 3 axis cnc high speed metal engraver
Perfect 3 axis cnc high speed metal engraver features :
1.MINI 4040 style is an unique CNC engraver , which is designed for 3D basso-relievo in mahogany, classical furnitures.And it has high precision , fast speed, it can meet the needs of cutting flowers completely.
2.X axis are dustproof, the lathe bed is cast wholly. It is stable, durable, no deshape, high precision location.
3. TBI ball screw rod and , original screw nut, imported linear and square rail. Water-cooled 1.5kw spindle motor
- -------------------------------------------------------------------------------
This precision spindle is water cooling spindle,requires no maintenance.Fully programmable speeds 24000 RPM
--------------------------------------------------------------------------------
Configured with practical and easily-learned software , can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor
--------------------------------------------------------------------------------
Perfect 3 axis cnc high speed metal engraver parameters:
|
Description |
Parameter |
|
X,Y,Z Working Area |
400x400x120mm |
|
X, Z Structure |
Ball Screw |
|
Y Structure |
Hiwin Rail Linear Bearings or Ball Screw |
|
Max.Rapid Travel Rate |
8000mm/min |
|
Max.Working Speed |
6000mm/min |
|
Spindle Power Motor |
1.5Kw self cooling spindle |
|
Spindle Speed |
0-24000RPM |
|
Drive Motors |
Stepper system |
|
Working Voltage |
AC220V/50/60Hz/AC380V 50HZ |
|
Command Language |
G code |
|
Operating System |
Mach3 control System (Option:NCstuido) |
|
Interface |
USB |
|
Collet |
ER16 |
|
X,Y Resolution |
<0.01mm |
|
Software Compatability |
Type3 software, (Option:Artcam software) |
|
All parameters above subject to change without prior notice |
|
Perfect 3 axis cnc high speed metal engraver applications:
1.
Wood working
:Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board,mahjong table,computer table .
2.
Advertising
:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.
Model industry
:It can engrave on the metal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.
4.
Other field
:It can engrave many image, embossment,and widely used in artistic industry.
Package: Humidity-Proof Cloth Above Wooden Case,Oil Covered with Film on Machine Transmission, Steel Tubes On&Under Wooden Case.
Shipping: Safely and saving by sea
1.FOB----The nearest port is Qingdao port,and we can also delivery the machine to other port according to your request.
2.CIF-------Please tell me your destination port when you need CIF price.
3.If you need others, please tell me and I’m pleasure to do for you.
1.Technical support by phone, e-mail or MSN around the clock
2.Friendly English version manual and operation video CD disk
3.7-15 working days after down payment or full payment
4.Machine will be adjusted before it is delivered , operation disk/CD was included.
5.Engineers available to service machinery overseas, seller and buyer discuss the charges
